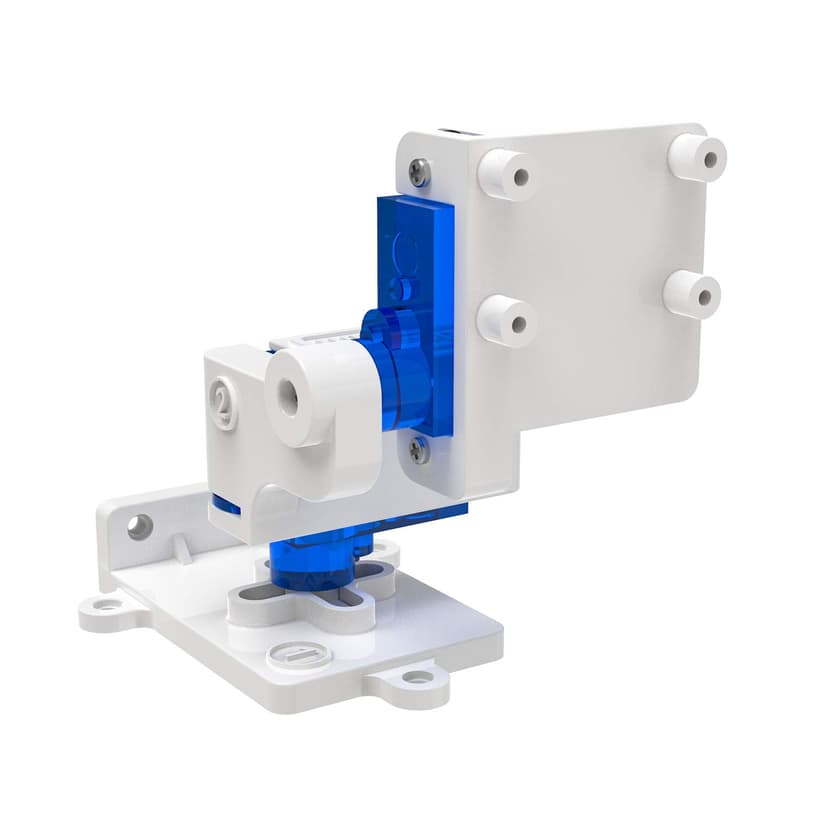

new | Arducam Pan Tilt Platform for Pi Camera, 2 DOF Bracket Kit with Digital Servos and PTZ Control Board
Brand : Arducam
new | Arducam Pan Tilt Platform for Pi Camera, 2 DOF Bracket Kit with Digital Servos and PTZ Control Board
Brand : Arducam
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB0874CFBX8
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryPC Accessory
MPNB0227
ColorPT Platform V1.0
OriginUSA
BrandnameArducam
Height1
Length1
Width1
Weight1
Product Details
You’ll be Getting: A pan tilt bracket kit, 2 digital servo motors, a PTZ controller board (with jumper wires).
Pan Tilt Kit: Free panning and tilting in a smaller PT bracket. Specifically designed for a broader view on Pi camera projects. PWM controller board included.
Mini Digital Servos: Two GH-S37D digital servos for a faster speed, higher torque and better holding capability (than analog servos).
PWM Control Board: I2C controlled; Up to 16-Channel servo, 12-bit resolution for each channel; outputs the PWM signals to drive the servo motors directly.
Applications: Home security and surveillance, robotics, sun tracker or other pi projects where you need a single camera to cover more areas.
Product Description
To meet the increasing requirements for different camera solution on Pi, Arducam now released the PTZ camera series. B0227 is a new member of the family, which can move your camera in two dimensions with 180 degrees horizontal and 145 degrees vertical movements. The PTZ camera controller board outputs the PWM signals to drive the servo motors directly. Therefore, your camera can be used to monitor places that should be covered by multiple ones commonly in the surveillance system.
Product Description
To meet the increasing requirements for different camera solution on Pi, Arducam now released the PTZ camera series. B0227 is a new member of the family, which can move your camera in two dimensions with 180 degrees horizontal and 145 degrees vertical movements. The PTZ camera controller board outputs the PWM signals to drive the servo motors directly. Therefore, your camera can be used to monitor places that should be covered by multiple ones commonly in the surveillance system.
