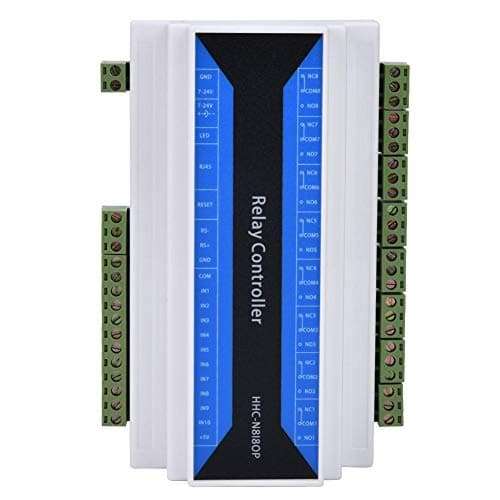

new | 8 Channel Network Relay Module Remote Control Relay Device Ethernet to RS485 TCP Relay Module
Brand : Walfront
new | 8 Channel Network Relay Module Remote Control Relay Device Ethernet to RS485 TCP Relay Module
Brand : Walfront

₹ 11,938.00
M.R.P :₹ 19,897.00

40% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 11,938.00
M.R.P : ₹ 19,897.00

40% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB083KK3CZL
CategoryElectronics
SubcategoryRepeaters
LeafcategoryHome
MPNWalfront7rcom8atub
Connector TypeDc Power Jack
OriginUSA
BrandnameWalfront
Weight1
Product Details
FIVE WORKING MODES: Through the provided configuration software, you can configure five working modes: TCP server, TCP client, UDP server, UDP client, DNS domain name.
STRONG ANTI-INTERFERENCE ABILITY: 8 channel relay module can be connected to external high-current AC contactor and relay, will not crash under strong electromagnetic interference. The product is to high temperatures and can work in the environment of -40 to 85 ° C.
EASY TO USE: The true 100M speed enables communication with 0 delay commands. Support 10 TCP client connections under the TCP server. Industrial grade products. Support automatic acquisition of IP.
POWER-DOWN SAVE FUNCTION: 8-way relay, 8-channel digital input with full-open and full-off input. With power-down save function (save relay status). With an RS485 port, it supports Ethernet to RS485 transparent .
PRODUCT PARAMETERS: Power Supply: DC7~24V(DC socket or wiring terminal can be selected to input power.); DC Connector Size:5.5 x 2.1mm / 0.22 x 0.08in (Outer Diameter - Inner Diameter)





Product Ranking
#1815 in Computer Networking Transceivers
Product Description
Specification:
Item Type:Network Relay
Power Supply:DC7~24V(DC socket or wiring terminal can be selected to input power.)
DC Connector Size:5.5 x 2.1mm / 0.22 x 0.08in(Outer Diameter - Inner Diameter)
Working Temperature Range:-40~85℃
Users Manual:8 independent relay outputs
The output does not have voltage. The single relay has a DC rating of 10A, an AC rated current of 10A, a maximum AC rating of 250V, and a maximum DC rating of 30V.
10 channels of independent input
IN9 means full open, after IN9 has digital input, all relays are connected.
IN10 means full off. When IN10 has output, all relays are off.
The 8-input user of IN1-IN8 can be configured into three different working modes through the configuration parameter tool, and is selected under the “Input Mode” of the configuration tool.
In the "normal input" mode, the ordinary input is acquired. To obtain the input status, a command to read the input status is sent to the device.
" Relay" mode, after this mode has input, the corresponding relay state is reversed, and the IN1-IN8 control corresponds to the 1-8 relay.
Active Upload mode, which actively sends an input status to the network connected to the device when there is a change in the input.
The device has an RS485 interface. It can be controlled by RS485 equipment from other manufacturers. Can realize the transparent of network data to RS485 data, the baud rate 300-115200 can be configured. When using parity, the data bit must be configured to 9 bits, and the serial port parameters are configured through the configuration tool.
The device has a power-down save function that saves the status of the relay and can be configured through the configuration tool.
Reset the configuration. The label RESET position is the factory reset button.

Package List:
1 x Network Relay

Product Description
Specification:
Item Type:Network Relay
Power Supply:DC7~24V(DC socket or wiring terminal can be selected to input power.)
DC Connector Size:5.5 x 2.1mm / 0.22 x 0.08in(Outer Diameter - Inner Diameter)
Working Temperature Range:-40~85℃
Users Manual:8 independent relay outputs
The output does not have voltage. The single relay has a DC rating of 10A, an AC rated current of 10A, a maximum AC rating of 250V, and a maximum DC rating of 30V.
10 channels of independent input
IN9 means full open, after IN9 has digital input, all relays are connected.
IN10 means full off. When IN10 has output, all relays are off.
The 8-input user of IN1-IN8 can be configured into three different working modes through the configuration parameter tool, and is selected under the “Input Mode” of the configuration tool.
In the "normal input" mode, the ordinary input is acquired. To obtain the input status, a command to read the input status is sent to the device.
" Relay" mode, after this mode has input, the corresponding relay state is reversed, and the IN1-IN8 control corresponds to the 1-8 relay.
Active Upload mode, which actively sends an input status to the network connected to the device when there is a change in the input.
The device has an RS485 interface. It can be controlled by RS485 equipment from other manufacturers. Can realize the transparent of network data to RS485 data, the baud rate 300-115200 can be configured. When using parity, the data bit must be configured to 9 bits, and the serial port parameters are configured through the configuration tool.
The device has a power-down save function that saves the status of the relay and can be configured through the configuration tool.
Reset the configuration. The label RESET position is the factory reset button.

Package List:
1 x Network Relay
