flagProduct From USA
Digital PID temperature controller, 25A SSR solid state relay, M6 thermocouple sensor K temperature, AC 110V-240V 0-400 ℃, for electrical power, chemical industry
SKU : 06601BAUXXB0836JT2B3
Asin : B0836JT2B3
Brand : Acogedor
Category : Industrial & Scientific
Digital PID temperature controller, 25A SSR solid state relay, M6 thermocouple sensor K temperature, AC 110V-240V 0-400 ℃, for electrical power, chemical industry
SKU : 06601BAUXXB0836JT2B3
Brand : Acogedor
Category : Industrial & Scientific
Product Specifications
Conditionnew
AsinB0836JT2B3
CategoryIndustrial & Scientific
SubcategoryTemperature Controllers
LeafcategoryBISS Basic
OriginUSA
BrandnameAcogedor
Height2.76
Length5.51
Width2.76
Weight1
Product Details
High quality temperature control three-piece set, durable and reliable.
Digital temperature controller has high accuracy and good sensitivity.
PIN control including ON/OFF, step-type PID and continuous PID.
Energy saving and simple operation, stable performance.
LED display screen for clear reading.
Product Description
Specification:
Condition: 100% brand new
Weight: 239g/8.4oz
REX - C100 thermostat:
Model: REX-C100FK02-V*AN DN
Measurement accuracy: ±0.5% FS
End to end compensation tolerance: 0 ~ 50 ℃ can be through the software to modify + 2 ℃
Resolution: 14 bits
Sampling cycle: 0.5 seconds
Power supply: AC 110-240V 50/60hz
Process value: (PV)
Set value: (SV)
Output, alarm and self-setting indicate: by LED
PIN control: including ON/OFF, stepper PID and continuous PID
Self-adjusting control: Yes
Delayed output: contact capacity 250V AC 3A (resistance load)
Alarm function output: No
Proportional band (P) : 0 ~ full range (ON/OFF control set to 0)
The testing temperature range: 0 ~ 400 ℃
Insulation resistance: > 50M ohm (500V DC)
Insulation resistance: 1500V AC/min
Insulation resistance: power consumption <10VA
The environment of service: 0 ~ 50 ℃
Non-corrosive gas environment 30 ~ 85% RH
Temperature input type: K-type thermocouple
Size: 48 * 48 * 110mm / 1.9 * 1.9 * 4.3in
K Type Thermocouple:
Length: 1m
Diameter of sensor: 4.5mm
Temperature range: 0 ~ 1300 ℃
Internal insulation: fiberglass
External shielding: insulation shielding
Solid-state relay:
Output voltage range: standard
Output current: 25A
Input voltage: DC 3-32V
Output voltage: 24-380V AC

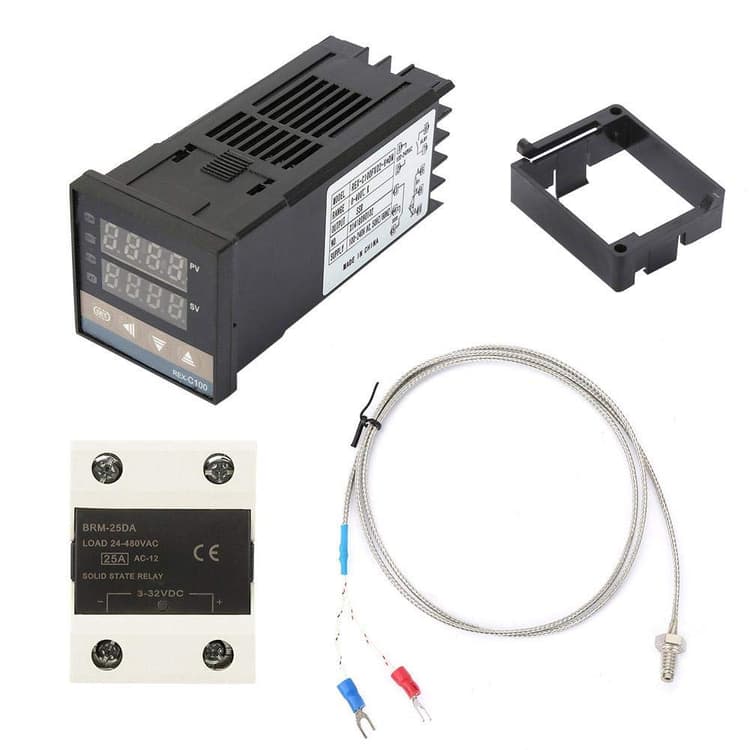

Package List:
1 x REX-C100 Temperature Controller
1 x K-type Thermocouple
1 x Solid-state Relay
Product Description
Specification:
Condition: 100% brand new
Weight: 239g/8.4oz
REX - C100 thermostat:
Model: REX-C100FK02-V*AN DN
Measurement accuracy: ±0.5% FS
End to end compensation tolerance: 0 ~ 50 ℃ can be through the software to modify + 2 ℃
Resolution: 14 bits
Sampling cycle: 0.5 seconds
Power supply: AC 110-240V 50/60hz
Process value: (PV)
Set value: (SV)
Output, alarm and self-setting indicate: by LED
PIN control: including ON/OFF, stepper PID and continuous PID
Self-adjusting control: Yes
Delayed output: contact capacity 250V AC 3A (resistance load)
Alarm function output: No
Proportional band (P) : 0 ~ full range (ON/OFF control set to 0)
The testing temperature range: 0 ~ 400 ℃
Insulation resistance: > 50M ohm (500V DC)
Insulation resistance: 1500V AC/min
Insulation resistance: power consumption <10VA
The environment of service: 0 ~ 50 ℃
Non-corrosive gas environment 30 ~ 85% RH
Temperature input type: K-type thermocouple
Size: 48 * 48 * 110mm / 1.9 * 1.9 * 4.3in
K Type Thermocouple:
Length: 1m
Diameter of sensor: 4.5mm
Temperature range: 0 ~ 1300 ℃
Internal insulation: fiberglass
External shielding: insulation shielding
Solid-state relay:
Output voltage range: standard
Output current: 25A
Input voltage: DC 3-32V
Output voltage: 24-380V AC

Package List:
1 x REX-C100 Temperature Controller
1 x K-type Thermocouple
1 x Solid-state Relay
