new | PID LED temperature controller, SSR solid state relay, K temperature thermocouple sensor, AC 110V-240V 0-1300 ℃, for electrical power, chemical industry
SKU : 06601BAUXXB0836CCF8R
Brand : Acogedor
new | PID LED temperature controller, SSR solid state relay, K temperature thermocouple sensor, AC 110V-240V 0-1300 ℃, for electrical power, chemical industry
SKU : 06601BAUXXB0836CCF8R
Brand : Acogedor
Product Specifications
Conditionnew
AsinB0836CCF8R
CategoryIndustrial & Scientific
SubcategoryTemperature Controllers
LeafcategoryBISS Basic
OriginUSA
BrandnameAcogedor
Height3.94
Length3.94
Width3.94
Weight1
Product Details
This Temperature Controller is adopted of industrial-grade professional self-tuning PID technology, compared with the traditional PID control, it has a rapid temperature control, fast response, small overshoot and high precision.
It's an useful temperature controller for controlling temperature intelligently and it can help the operator get good effect by simple operation.
This multi-functional controller has special microprocessor switching power supply and SMT.
It can widely applied to electric power, chemical industry, injection molding, food, incubator, oven and many other equipment.
Probe used stainless steel material shell and resin sealing treatment, waterproof and anti- rust ,and has long service life.
Product Description

Specification:

Temperature Controller

Model:REX-C100FK07-V*AN

Measuring Accuracy:±0.5%FS

Cold-end Compensation Tolerance:±2℃(can be modified by software in 0~50℃)

Resolution: 14 bit

Sampling Cycle: 0.5 Sec

Power: AC 110V-240V 50/60HZ

Process value: (PV), set value:(SV)

Output, alarm and self-setting indication: LED

PIN control: including ON/OFF, step PID and continuous PID

Relay Output: Contact capacity 250V AC 3A (resistive load)

Alarm Function Output: 2 ways

Proportional Band (P): 0~full range (ON/OFF control when set to 0)

Detecting Temperature Range: 0℃~1300℃

Insulation Resistance: >50M ohm (500V DC)

Insulation Resistance: 1500V AC/min

Insulation Resistance: Power Consumption <10 VA

Service Environment: 0℃~50℃

Non-corrosive gas environment :30 ~ 85% RH

Size: 48*48*110mm / 1.89*1.89*4.33"

Max.40A SSR

Output Voltage Range: Standard Type

Output Current: 40A

Input Voltage: DC 3V-32V

Output Voltage: 24V-380V AC

K thermocouple probe cable

Length: 1 m

Diameter of sensor: 4.5mm

Temperature range: 0 ~ 1300℃

Internal insulation: glass fiber

External shielding: insulation shielding

Maximum 25A SSR (solid state relay)

Output voltage range: standard

Output current: 25A

Input voltage: DC 3-32v

Output voltage: 24-380v AC

Weight: 264 g / 9.3 oz(approx.)

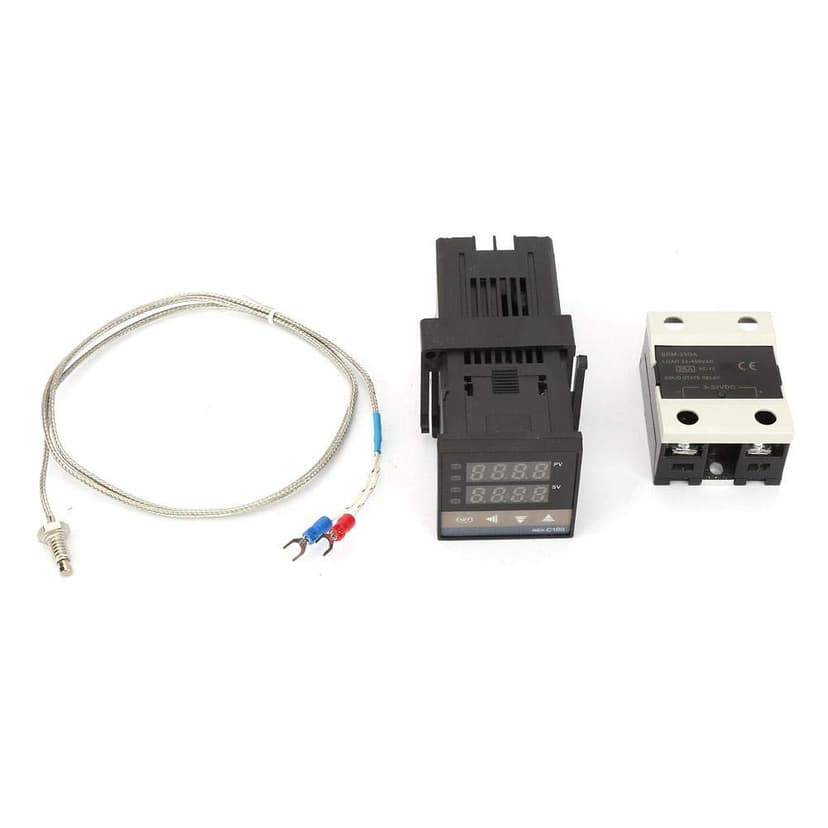

Package list:

1 x REX-C100 PID temperature controller

1 x K thermocouple/temperature sensor

1 x Max 25A SSR (solid state relay)

Product Description

Specification:

Temperature Controller

Model:REX-C100FK07-V*AN

Measuring Accuracy:±0.5%FS

Cold-end Compensation Tolerance:±2℃(can be modified by software in 0~50℃)

Resolution: 14 bit

Sampling Cycle: 0.5 Sec

Power: AC 110V-240V 50/60HZ

Process value: (PV), set value:(SV)

Output, alarm and self-setting indication: LED

PIN control: including ON/OFF, step PID and continuous PID

Relay Output: Contact capacity 250V AC 3A (resistive load)

Alarm Function Output: 2 ways

Proportional Band (P): 0~full range (ON/OFF control when set to 0)

Detecting Temperature Range: 0℃~1300℃

Insulation Resistance: >50M ohm (500V DC)

Insulation Resistance: 1500V AC/min

Insulation Resistance: Power Consumption <10 VA

Service Environment: 0℃~50℃

Non-corrosive gas environment :30 ~ 85% RH

Size: 48*48*110mm / 1.89*1.89*4.33"

Max.40A SSR

Output Voltage Range: Standard Type

Output Current: 40A

Input Voltage: DC 3V-32V

Output Voltage: 24V-380V AC

K thermocouple probe cable

Length: 1 m

Diameter of sensor: 4.5mm

Temperature range: 0 ~ 1300℃

Internal insulation: glass fiber

External shielding: insulation shielding

Maximum 25A SSR (solid state relay)

Output voltage range: standard

Output current: 25A

Input voltage: DC 3-32v

Output voltage: 24-380v AC

Weight: 264 g / 9.3 oz(approx.)


Package list:

1 x REX-C100 PID temperature controller

1 x K thermocouple/temperature sensor

1 x Max 25A SSR (solid state relay)
