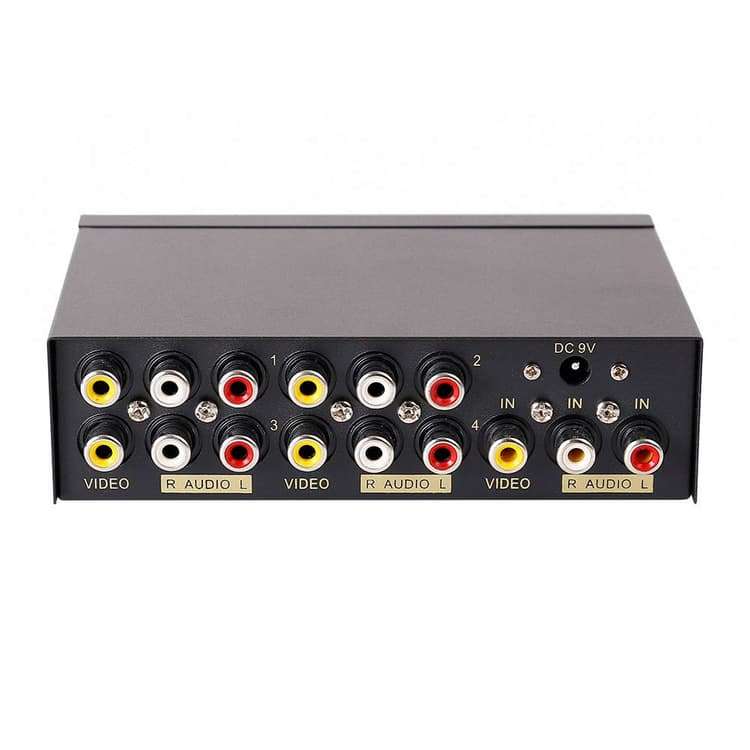

new | DTECH Powered 4 Way 3 RCA Splitter Box 1 in 4 Out Composite Video Audio Distribution Duplicator with Power Adapter
SKU : 01401BAUXXB082XTKN7L
Brand : DTECH
new | DTECH Powered 4 Way 3 RCA Splitter Box 1 in 4 Out Composite Video Audio Distribution Duplicator with Power Adapter
SKU : 01401BAUXXB082XTKN7L
Brand : DTECH
Product Specifications
Conditionnew
AsinB082XTKN7L
CategoryElectronics
SubcategorySelector Switch Boxes
LeafcategorySpeakers
MPNFJ104-US
ColorBlack
Connector TypeRCA
OriginUSA
BrandnameDTECH
Height1.55
Length5.44
Width3.4
Weight1
Warranty Description365 days after the date of the purchase
Product Details
4 way RCA composite video splitter 1 input 4 output splits one audio video analog signal into multi TV monitors / power speakers for multiple viewing monitors or dubbing projects
RCA signal splitter 3RCA (phono connector) distributor amp is built with RCA signal amplifier that enables you to get sharp, clear visual image and reliable audio even in long distance connection
Multiple RCA Splitter 1 in 4 out female to female port is in durable metal case housing with anti-skid feet ensures rapid heat dissipation for protection and a longer use life
Active A/V signal duplicator box is small enough to be fitted behind a monitor, in the back of a rack; RCA video splitter comes with AC 9V power adapter, No extra software needed
RCA audio splitter duplicator without switches features LED indicator and color coded RCA jacks make AV devices connection easy (yellow plug for video, white/ red port for L/R channel audio)
Product Ranking
#512 in RCA Cables
#36901 in Electronics
Product Description
4 Port RCA Audio Video Duplicator Splitter for TV Cable Box DVD
Display the same audio and video on 4 screen

If often you have been had trouble in outputting audio and video to multiple TV (for example receiving a much weaker signals), powered RCA port splitter is a life saver for you!

Multiple Monitors Setup in Mutil-Room
You can use the active composite video distribution amplifier to display the same content from 1 AV source (e.g. DVD player, XBOX, PS3, PS2) on 4 TVs or projectors in multi room at the same time, no worry about not having enough RCA ports on your TV.

Gets the Original Signals Back to Your Life
Powered multi RCA splitter composite video booster boosts and distribute your A/V signal that will eliminate the poor picture and buzz sound caused by using cheap RCA Y splitter cable, RCA TV channel box provides clean output signals like the original signals.

Compact size powered RCA splitter 4 way 1 input 4 output is ideal for applications: public video broadcasting, home theater system receiver amps, VHS, DVR recording recorder, multimedia display video conferencing, subwoofer, PC laptop, etc.

Note: You can use 4 way RCA splitter 1 female to 4 female for both audio and video, audio only, or video only splitting (1 in 2 out, 1 in 3 out, audio triple splitter).

Composite Splitter Input Interface: 1 Chanel 3RCA Jack (yellow, white, red) Female
Output: 4 Chanel 3 RCA connector (yellow, white, red)

1. Video
level Resistance: Input VS 0.8-1.0Vp-p / 75Ω; Output VS 0.8-1.0Vp-p / 75Ω
Bandwidth: 50Hz-5.5MHz

2. Audio
Input level Resistance: 2V (RMS) / 47 KΩ
Output level Resistance: 2V (RMS) /1KΩ
Audio Frequency: 10Hz-20KHz, 0db

What is included:
1 x 4 Way RCA AV Splitter (1 in 4 out)
1 x AC Power Adapter DC 9V (Input: 100V - 240V ~ 50/60Hz 0.3A Max; Output: 9V 500mA)
Product Description
4 Port RCA Audio Video Duplicator Splitter for TV Cable Box DVD
Display the same audio and video on 4 screen

If often you have been had trouble in outputting audio and video to multiple TV (for example receiving a much weaker signals), powered RCA port splitter is a life saver for you!

Multiple Monitors Setup in Mutil-Room
You can use the active composite video distribution amplifier to display the same content from 1 AV source (e.g. DVD player, XBOX, PS3, PS2) on 4 TVs or projectors in multi room at the same time, no worry about not having enough RCA ports on your TV.

Gets the Original Signals Back to Your Life
Powered multi RCA splitter composite video booster boosts and distribute your A/V signal that will eliminate the poor picture and buzz sound caused by using cheap RCA Y splitter cable, RCA TV channel box provides clean output signals like the original signals.

Compact size powered RCA splitter 4 way 1 input 4 output is ideal for applications: public video broadcasting, home theater system receiver amps, VHS, DVR recording recorder, multimedia display video conferencing, subwoofer, PC laptop, etc.

Note: You can use 4 way RCA splitter 1 female to 4 female for both audio and video, audio only, or video only splitting (1 in 2 out, 1 in 3 out, audio triple splitter).

Composite Splitter Input Interface: 1 Chanel 3RCA Jack (yellow, white, red) Female
Output: 4 Chanel 3 RCA connector (yellow, white, red)

1. Video
level Resistance: Input VS 0.8-1.0Vp-p / 75Ω; Output VS 0.8-1.0Vp-p / 75Ω
Bandwidth: 50Hz-5.5MHz

2. Audio
Input level Resistance: 2V (RMS) / 47 KΩ
Output level Resistance: 2V (RMS) /1KΩ
Audio Frequency: 10Hz-20KHz, 0db

What is included:
1 x 4 Way RCA AV Splitter (1 in 4 out)
1 x AC Power Adapter DC 9V (Input: 100V - 240V ~ 50/60Hz 0.3A Max; Output: 9V 500mA)
