new | Eightwood RG400 M17/128 RF Coaxial Cable Double Copper Braid Shielded Coax 20 feet
Brand : Eightwood
new | Eightwood RG400 M17/128 RF Coaxial Cable Double Copper Braid Shielded Coax 20 feet
Brand : Eightwood

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 6,799.00
M.R.P :₹ 9,518.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 6,799.00
M.R.P : ₹ 9,518.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB08216SZ96
CategoryElectronics
SubcategoryF-Pin-Coaxial Tip
LeafcategorySpeakers
MPNZRG40020
Colorpink
Connector TypeCoaxial
OriginUSA
BrandnameEightwood
Height1
Length1
Width1
Weight1
Product Details

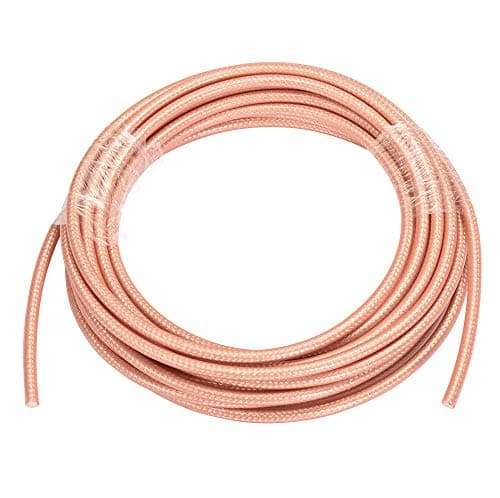

RF double shielded RG400 coax cable, 20 feet
Good conductivity and signal transmission
Superior shielding performance
High-temperature resistance
Max. Operating Frequency:12400MHz
Material-- Inner conductor: silver plated copper
Insulator: PTFE
Outer conductor(shielding) :silver plated copper double braid
Jacket: FEP
Diameter-- Inner conductor: 19*0.203mm
Insulator: 2.95mm
Outer conductor( shielding):3.95mm
Jacket: 4.95mm
Impedance:50 ohm
Package Includes: 1x 20 feet RG400 cable
Product Ranking
#147 in Coaxial Cables
#28629 in Electronics
Product Description
Specification
Nom. Capacitance Conductor to Shield(pF/m):105
Nom. Characteristic Impedance: 50ohm
Nom. Velocity of Propagation:70%
Min. Bend Radius(Install):25mm
Voltage Rating(VMS):1900
Max.Operating Frequency:12400MHz

Nom. Attenuation( dB/m): 0.144(100MHz)
Nom. Attenuation( dB/m): 0.295(400MHz)
Nom. Attenuation( dB/m): 0.482(1000MHz)
Nom. Attenuation( dB/m): 1.184(5000MHz)
Nom. Attenuation( dB/m): 1.899(11000MHz)
Product Description
Specification
Nom. Capacitance Conductor to Shield(pF/m):105
Nom. Characteristic Impedance: 50ohm
Nom. Velocity of Propagation:70%
Min. Bend Radius(Install):25mm
Voltage Rating(VMS):1900
Max.Operating Frequency:12400MHz

Nom. Attenuation( dB/m): 0.144(100MHz)
Nom. Attenuation( dB/m): 0.295(400MHz)
Nom. Attenuation( dB/m): 0.482(1000MHz)
Nom. Attenuation( dB/m): 1.184(5000MHz)
Nom. Attenuation( dB/m): 1.899(11000MHz)
