💝ZVS 20A 1000W Low Voltage Induction Heating Module
💝Flyback Heater Driver Board

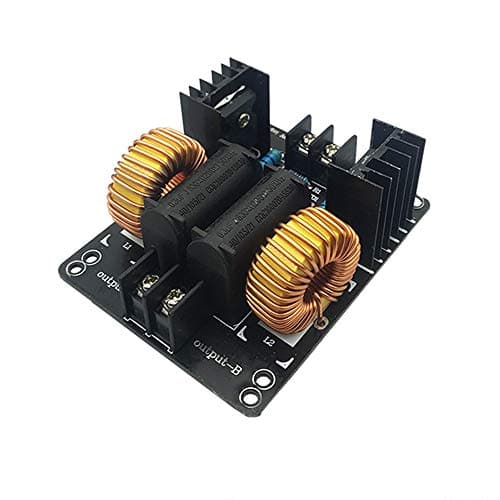

new | ZVS 20A 1000W DC12-30V Low Voltage Induction Heating Module Flyback Heater Driver Board
Brand : IJJ
new | ZVS 20A 1000W DC12-30V Low Voltage Induction Heating Module Flyback Heater Driver Board
Brand : IJJ
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
| Condition | new |
|---|---|
| Asin | B081HDVKTY |
| Category | Electronics |
| Subcategory | Power Converters |
| Leafcategory | CE |
| Color | Black |
| Origin | USA |
| Brandname | IJJ |
| Height | 1 |
| Length | 1 |
| Width | 1 |
| Weight | 1 |
Product Details
💝24V input with no load current of 3A
💝zero voltage switching (ZVS) tesla coil flyback driver board with high power output up to 300W, support DC12-30V input and current should be over 10A, igh voltage output ideal for DIY spark gap tesla coil (SGTC), Jacobs ladder and Marx generator, etc.
💝Large inductor of stable performance parameter, 30mm big magnet ring, 1.2mm pure copper wire; the bottom of circuit board high current part is soldered, all resistor adopt five ring tight resistor
Product Ranking
#3559 in Heaters & Heater Accessories
#1284788 in Tools & Home Improvement
Product Description
A flyback drive circuit, which is used to drive the ignition coil, as did the Zero Voltage Switching, masses of fans called them "ZVS circuit".
Because of its big power, low heat,
simple and reliable by fans are widely used in the drive spark gap tesla coil (SGTC) and Jacob, ladders, Marx generator, etc.
This ZVS driver kit support DC 12-30V voltage input and high voltage output up to 800 times of the input votlage with high arc generated up to 5cm ideal electricity science experiment.
Specifications:
Input Voltage: DC 12-30V
Working Frequency:30-50KHz
Input Current: >5A(under 12V), >10A(over 15V)
Arc Length:2-8cm(depens on power supply)
Board Size: 90 X 90mm/3.54 X 3.54inch(L*W)
Warm Tips:
1. The power supply should at least 12V 5A,if the power supply is too low lead to the low power input, then the two MOS will connect at the same time, this will damage it. (when use the induction heating function, the power supply suggest 24V 15A)
2. When there is no loads connected, please do not power on the module, otherwise it will produce high frequency noise to damge the MOS.
3.Please do not exceed 30V! If you encounter any problems, please feel free to contact us, we will solve it for you as soon as possible
Package Included:1X ZVS Flyback Driver Board
