flagProduct From USA

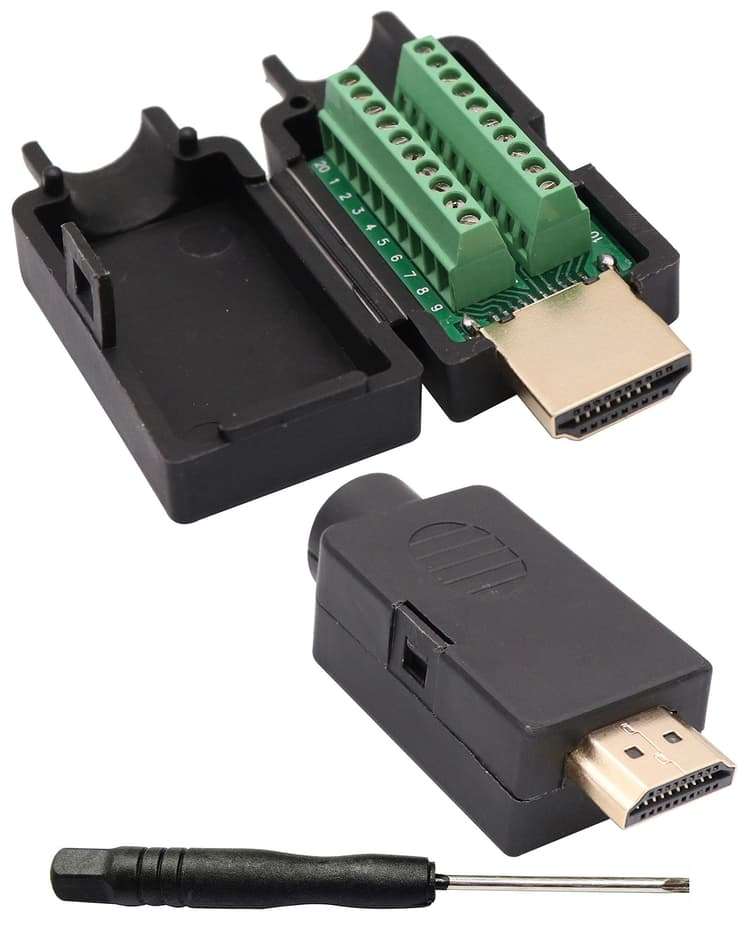

new | AAOTOKK HDMI Screw Terminal Block Adapter Gold Plated HDMI Male to 20 Pin/Way Female Solderless Terminal Breakout Board Connector Signal Module with case (2Pcak/Male)
SKU : 01401BAUXXB081541KPH
Brand : AAOTOKK
new | AAOTOKK HDMI Screw Terminal Block Adapter Gold Plated HDMI Male to 20 Pin/Way Female Solderless Terminal Breakout Board Connector Signal Module with case (2Pcak/Male)
SKU : 01401BAUXXB081541KPH
Brand : AAOTOKK
Product Specifications
Conditionnew
AsinB081541KPH
CategoryElectronics
SubcategoryHDMI Cables
LeafcategoryBISS Basic
MPNA-000015
Connector TypeHDMI
OriginUSA
BrandnameAAOTOKK
Height4
Length7
Width0.5
Weight1
Product Details
Quantity:(2-Pack) Size:Length, width, height(4.6*2.2*1.6cm) Material: plastic. Color:(Black)
Connectors 1 : HDMI male jack .Connectors 2 : 20 Pin/Way female screw terminal block jack.
HDMI Adapter Fully assembled, it suitable for HDMI panels on home improvement projects, buried in the wall,compatible with HDMI 2.0, 19+1 core (5P+4C+ADB)；1.4 and 1.3.Can extend the length of the HDMI cable, Connecting single wires with open cable heads to your HDMI jack.
Wire range: AWG20～26, Pin: 20way/pin, Compact design and reliable connection for the female HDMI to secrew terminal adapter cable (Notice：Please use the multimeter test to connect this HDMI solderless soldering head,Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line. If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources ma
Screw/solderless type,No soldering required, easy to use,Requires only a screwdriver and a wire stripper to terminate HDMI cables,Saves time and hassle for installers.The housing is designed with a folding buckle for easy assembly and disassembly without tools.
Product Ranking
#5454 in Audio & Video Connectors & Adapters
Product Description
Quantity:(2-Pack)
Size:Length, width, height(4.6*2.2*1.6cm)
Material: plastic.
Color:(Black)

Connectors 1 : HDMI male jack .
Connectors 2 : 20 Pin/Way female screw terminal block jack.

Wire range: AWG20～26,
Pin: 20way/pin,

HDMI Adapter Fully assembled,
compatible with HDMI 2.0, 19 1 core (5P 4C ADB)；1.4 and 1.3.

Can extend the length of the HDMI cable, Connecting single wires with open cable heads to your HDMI jack.

The connection method requires professional knowledge, and beginners should be careful to purchase.

Notice：Please use the multimeter test to connect this HDMI solderless soldering head,
Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line.
If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources may vary, just remember to match both ends with the correct wiring structure
Product Description
Quantity:(2-Pack)
Size:Length, width, height(4.6*2.2*1.6cm)
Material: plastic.
Color:(Black)

Connectors 1 : HDMI male jack .
Connectors 2 : 20 Pin/Way female screw terminal block jack.

Wire range: AWG20～26,
Pin: 20way/pin,

HDMI Adapter Fully assembled,
compatible with HDMI 2.0, 19 1 core (5P 4C ADB)；1.4 and 1.3.

Can extend the length of the HDMI cable, Connecting single wires with open cable heads to your HDMI jack.

The connection method requires professional knowledge, and beginners should be careful to purchase.

Notice：Please use the multimeter test to connect this HDMI solderless soldering head,
Most HDMI have varying wiring plans. Due to the different manufacturers, the wiring plans is different, so you need to ask the seller of this line.
If only one end needs to be changed, please apply the same wiring structure that was in use. While wire colors from different sources may vary, just remember to match both ends with the correct wiring structure
