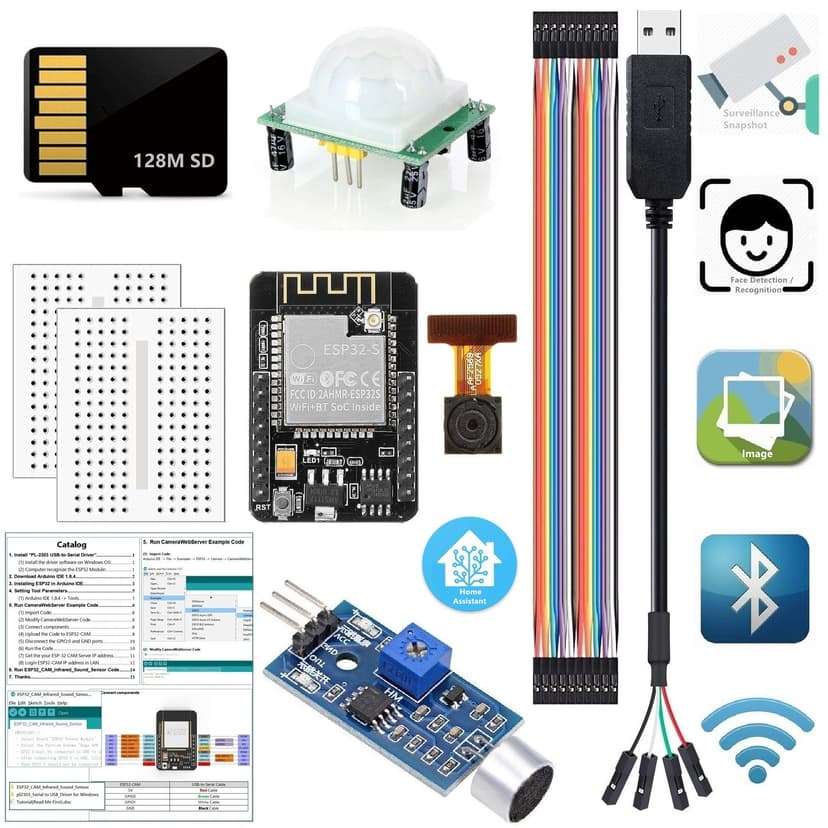

✔️ESP32-CAM Arduino Kits: When someone approaches or there is noise,the kit wakes up,takes a candid photo,and the image is saved in the SD card.It's a web camera,access camera streaming server on local network,with live image,face detection and face recognition functions(You can integrate it to Home Assistant).Program developed with Arduino IDE
✔️【ESP32-CAM】:with 2 Million Pixels built-in flash Camera and SD card slot is WIFI&Bluetooth 4.2 dual-mode development board,PCB on-board antennas and cores based on ESP32 chips.It used as master mode to build independent network controller,or as a slave to other hosts MCUs to add networking capabilities to existing devices.Suitable for home smart devices,industrial wireless control,wireless monitoring,QR wireless identification,wireless positioning system signals,and other IoT applications
✔️【USB to TTL serial PL2303TA 3.2-feet USB2.0 cable】:connects devices with 3.3 V logic level UART signals interface to computer via USB port.Provides access to UART Tx,Rx,5V,GND.Compatible with Windows 2008/XP/Vista/7/8/10(32,64-bit).【128M Micro SD Card】:Size: 0.59x 0.43x0.04 in.Capacity:128M. Read/Write Speed:18M/5M(s).Computer needs connect a Micro SD Adapter to recognize it
✔️【HC-SR501】:When someone approach human infrared PIR body sensor,output range High,when people leave,output Low.Not repeat/repeatable 2 trigger mode.Sensitivity and Time Delay is adjustable.Sensing Angle <100°.【Sound Sensor】: built-in capacitive electret microphone.can identify presence or absence of sound.When sound intensity exceed a certain threshold, output low signal light Off, Otherwise output High light On.Turn the spin button on the sensor board adjust the sensitivity
✔️Tutorial:Document,demo code,drive software,necessary class libraries.Download link label is pasted at the bottom of the packaging box.or contact us when you receive the goods,we will send download Link to you again
Product From USA
