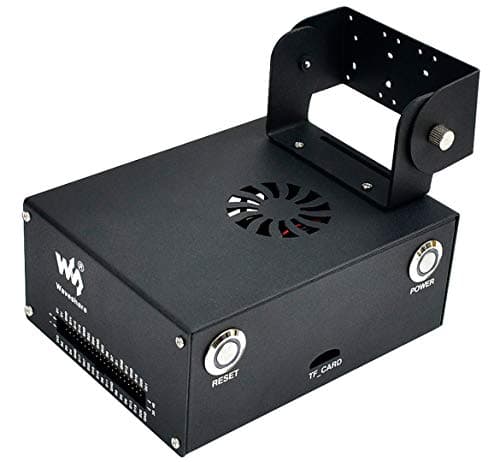

new | Jetson Nano Metal Case/Enclosure for Jetson Nano Developer Kit and B01(A02 & B01) with Camera Holder,Reset and Power Buttons, Support Single or Binocular Camera,Cooling Fan,Wireless-AC8265
Brand : waveshare
new | Jetson Nano Metal Case/Enclosure for Jetson Nano Developer Kit and B01(A02 & B01) with Camera Holder,Reset and Power Buttons, Support Single or Binocular Camera,Cooling Fan,Wireless-AC8265
Brand : waveshare
Product Specifications
Conditionnew
AsinB07VX79GSH
CategoryElectronics
SubcategoryCase Fans
LeafcategoryPC Accessory
MPNJetson Nano Metal Case
ColorJetson Nano Metal Case
OriginUSA
Brandnamewaveshare
Height2.76
Length1.57
Width1.97
Weight1
Product Details
Jetson Nano Metal Case is compatible with : Jetson Nano Developer Kit (Both of the original version and B01 version) ( Case only)
Special camera holder, Mounting holes for single camera or binocular camera, up to 180° roll angle. Recommendation: 8MP IMX219 Camera(8MP IMX219-200 Camera,8MP IMX219-170 Camera,8MP IMX219-120 Camera,8MP IMX219-160 Camera,8MP IMX219-77 Camera). IMX219-83 Stereo Binocular Camera.
Internal Fan Design, Heat dissipation through the airflow vent on the top, more elegant design.Recommendation: Fan-4020-PWM-5V
RESET and POWER buttons, with system status indicator (B01 only, NOT available for the original version).
Allows installing 4G module inside, Recommendation: SIM7600G-H 4G for Jetson Nano. Precise opening design: Cut-outs for GPIO header, TF card, and peripheral ports, Recommendation: Wireless-AC8265
Product Ranking
#5078 in Camera Cases
Product Description

Assembly Steps:

Check the components before assembling.
1.Remove the Jetson nano, assemble the wireless module and replace it.
2.Mount the buttons on the metal box, note that the button with four wires is the Power button and another which has two wires are the Reset button.
3.Connect buttons to Jetson Nano, please refer to the diagram. Insert the micro SD adapter board to the Micro SD slot of Jetson nano. Press it to let it locked.
Note that you should press the adapter to make sure that the adapter is pop-up, then remove it. You cannot directly pull it out, otherwise you will break the Micro SD slot.
4.Adjust the cables, mount the Jetson Nano developer Kit in the Metal box and fix it by screws. You should also fix the Micro SD adapter board by screw.
5.Fix the Jetson Nano GPIO adapter board in metal box by skews.
6.Fix the antennas of the wireless module on the metal box. Assemble the cooling fan
7.Connect Jetson nano to the GPIO adapter by cable.
8.Fix the camera holder-bottom on the metal cover.
9.Fix camera on camera holder-top by nylon screws.
10.Assemble camera holders by screws, adjust the angle and turn it tightly..
11.Connect the cable cables to Jetson Nano (you can first remove it from cameras), If you have only one camera, just need to connect one cable.
12.Assemble the case, connect the Camera and antennas.
For more information about Assembly, please check in the wiki: https://www.waveshare.com/wiki/Jetson_Nano_Case_(C)?Amazon

Package Content

1.Body case (top and bottom)
2.Camera holder bottom mount
3.Camera holder top mount
4.Jetson Nano adapter board
5.Micro SD card adapter board
6.Flat ribbon cable 2*20PIN
7.Spanner
8.Screwdriver
9.Button with 2PIN wires
10.Button with 4PIN wires
11.Screws pack
12.Jumper
