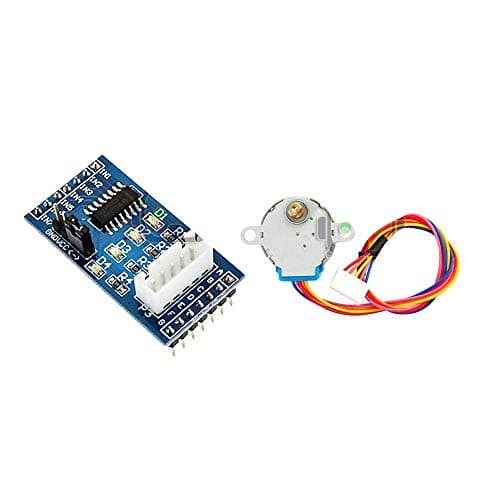

new | DEVMO 1set 28BYJ-48 Geared Stepper Motor + ULN2003 Driver Test Module Board DC 5V Compatible with Ar-duino
Brand : DEVMO
new | DEVMO 1set 28BYJ-48 Geared Stepper Motor + ULN2003 Driver Test Module Board DC 5V Compatible with Ar-duino
Brand : DEVMO

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 3,189.00
M.R.P :₹ 4,464.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 3,189.00
M.R.P : ₹ 4,464.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB07R8BPCWV
CategoryElectronics
SubcategoryModem Cables
LeafcategoryBISS Basic
Connector TypeMicro USB
OriginUSA
BrandnameDEVMO
Height1
Length1
Width1
Weight1
Product Details
★5V Stepper Motor Driver Board Module,ULN2003 motor driver chip.
★Chip all the pins already leads for easy connection to use.
★5V power supply.4-way signal indicator.
★On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct.
★Package Includes: 1set Control boards & Stepper Motor.
Product Ranking
#50 in Motor Drives
#215271 in Industrial & Scientific
Product Description
- Brand new with high quality
- Rated Voltage: DC5V-12V, 4-Phase
- Reduction Ratio: 1/64
- Step Torque Angle: 5.625 /64
- DC Resistance: 200w+- 7% (25 C)
- Insulation Resistance: >10Mw (500V)
- Insulation Grade: A
- No-load Pull in Frequency: >600Hz
- No-load Pull out Frequency: >1000Hz
- Pull in Torque: >34.3mN.m(120Hz)
- Detent Torque: >34.3mN.m
- Temperature Rise: <40K(120Hz)
- Noise: <40dB (120Hz, No load, 10cm)
- Board Size: Approx. 40X21 mm
- On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct
Product Description
- Brand new with high quality
- Rated Voltage: DC5V-12V, 4-Phase
- Reduction Ratio: 1/64
- Step Torque Angle: 5.625 /64
- DC Resistance: 200w+- 7% (25 C)
- Insulation Resistance: >10Mw (500V)
- Insulation Grade: A
- No-load Pull in Frequency: >600Hz
- No-load Pull out Frequency: >1000Hz
- Pull in Torque: >34.3mN.m(120Hz)
- Detent Torque: >34.3mN.m
- Temperature Rise: <40K(120Hz)
- Noise: <40dB (120Hz, No load, 10cm)
- Board Size: Approx. 40X21 mm
- On-board XH-5 P socket.connect 28BYJ-48 Stepper Motor direct
