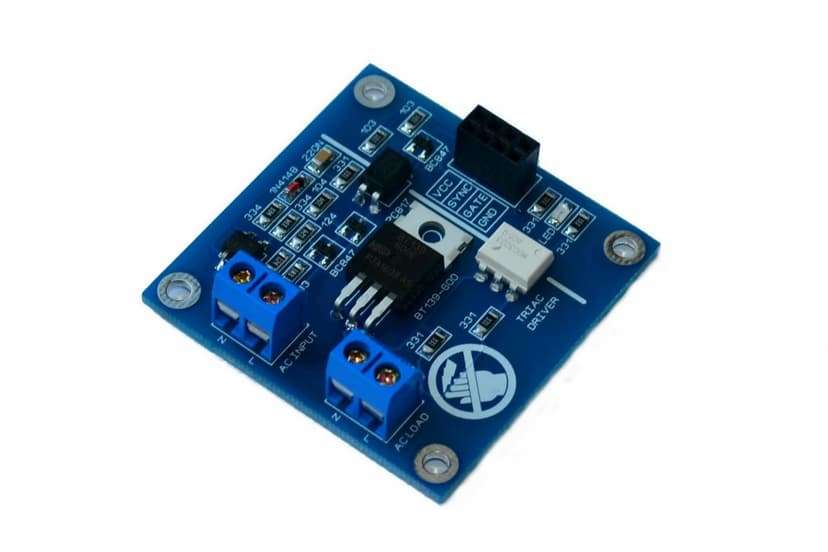

new | SSR Ac Light Dimmer Module Controller Board 50/60hz with Heat Sink 110V-230V Compatible with Arduino, MCUs and Raspberry PI Zero-Cross detection
Brand : Krida
new | SSR Ac Light Dimmer Module Controller Board 50/60hz with Heat Sink 110V-230V Compatible with Arduino, MCUs and Raspberry PI Zero-Cross detection
Brand : Krida
Product Specifications
Conditionnew
AsinB07KCRPCMC
CategoryElectronics
SubcategoryDesktop Barebones
LeafcategoryPersonal Computer
MPN1ChDimmerIOTReg
CPU ManufacturerVIA
Graphics Card DescriptionDedicated
OriginUSA
BrandnameKrida
Height1
Length1
Width1
Weight1
Display TypeLED
Resolution1920 x 1080
Product Details
Auto detect 50Hz or 60Hz. Leading Edge AC Dimmer.
Connected LOAD current 1A long-term and 5A short-term. If you want connect LOAD power more than 250W, connect triac to heatsink.
Working voltage from 110v to 240v. Zero-Cross detection (with zero/cross output pin SYNC).
Module contains a Triac triggering coupled with zero-cross detector mechanism<br> for programming the intensity of incandescent lamps, LED dimmable bulbs, heating elements or fan speed controlled through a micro-controller.
Product Description
Phase Control Circuit (Dimming Circuit)
Low voltage side and high voltage side is completely isolated.
Dimensions of the PCB 50mm x 50mm (1.97inch x 1.97inch).
Four mounting holes diameter 3.2mm (0.13inch).
The distance between mounting holes is 42.7mm.
NOT for controlling via PWM signal !
NOT appropriate to change the brightness of fluorescent lamps !!!
For inductive load controlling must be connected RC snubber
Product Description
Phase Control Circuit (Dimming Circuit)
Low voltage side and high voltage side is completely isolated.
Dimensions of the PCB 50mm x 50mm (1.97inch x 1.97inch).
Four mounting holes diameter 3.2mm (0.13inch).
The distance between mounting holes is 42.7mm.
NOT for controlling via PWM signal !
NOT appropriate to change the brightness of fluorescent lamps !!!
For inductive load controlling must be connected RC snubber
