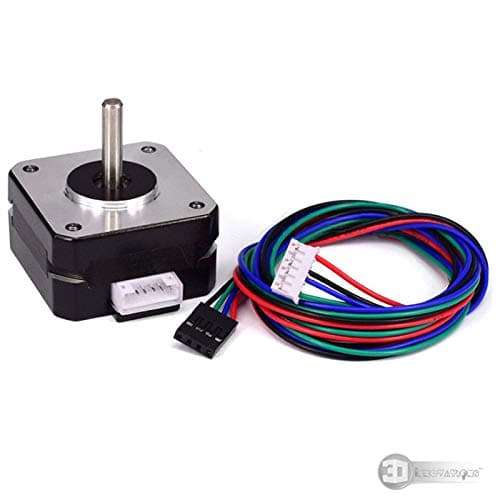

new | 3DINNOVATIONS Titan Extruder 4 Lead Nema 17HS4023 Stepper Motor 42 * 42 * 23mm for 3D Printer
Brand : 3DINNOVATIONS
new | 3DINNOVATIONS Titan Extruder 4 Lead Nema 17HS4023 Stepper Motor 42 * 42 * 23mm for 3D Printer
Brand : 3DINNOVATIONS
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
Conditionnew
AsinB07JZK5L81
CategoryIndustrial & Scientific
Subcategory3D Printers
LeafcategoryELECTRIC_MOTOR
MPNCHPSS675
OriginIndia
Brandname3DINNOVATIONS
Weight1
Product Details
NEMA 17 Bipolar 42x42x23mm 4-Wire
Motor Height: 23mm, Torque: 14N.cm
Motor used Imported Bearings, Coil used High Quality Copper
Cable Length: 1M
Coil material: High Quality Copper. Good corrosion resistance, Good thermal conductivity, Good conductivity, Good torque stability, And temperature not high.
Product Ranking
#7 in 3D Printer Motors
#23027 in Industrial & Scientific
Product Description
Phase: 2 phases
Voltage: 12 V
Current: 0.7 A / phase
Resistance: 4.0 ± 10%? / Phase
Inductance: 3.2 ± 20% mH / Phase
Retention torque: 14 N. cm
Insulation class: B
Angle: 1.8 ± 5% / Step
Dimensions: 42 x 42 x 23mm
Weight: 126g

Package include:
1 x Bipolar Stepper Motor
1 x 1M Cable
Product Description
Phase: 2 phases
Voltage: 12 V
Current: 0.7 A / phase
Resistance: 4.0 ± 10%? / Phase
Inductance: 3.2 ± 20% mH / Phase
Retention torque: 14 N. cm
Insulation class: B
Angle: 1.8 ± 5% / Step
Dimensions: 42 x 42 x 23mm
Weight: 126g

Package include:
1 x Bipolar Stepper Motor
1 x 1M Cable
