new | Gowoops SX1276 LoRa Radio Wireless 862-930MHz 915MHz UART Serial Module Transmitter Receiver + 915Mhz 3dBi SMA Antenna, Compatible with Arduino STM32 51 Single Chip Microcomputer
Brand : Gowoops
new | Gowoops SX1276 LoRa Radio Wireless 862-930MHz 915MHz UART Serial Module Transmitter Receiver + 915Mhz 3dBi SMA Antenna, Compatible with Arduino STM32 51 Single Chip Microcomputer
Brand : Gowoops
Product Specifications
Conditionnew
AsinB07G7RZLTW
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryPC Accessory
MPN2018005503
ColorTransparent
OriginUSA
BrandnameGowoops
Height1
Length1
Width1
Weight1
Product Details
✔ LoRa spread-spectrum communication, super anti-interference performance -- The module adopts LORA spread spectrum technology, transmitting distance and anti-interference performance are one time more than FSK
✔ WOR (Low Power Consumption) -- Work on radio, applicable for battery powered applications
✔ FEC (Forward Error Correction) -- High coding efficiency & good correction performance
✔ Transparent Transmission (Point to Point) -- Data sending is via transparent transmission, the module comes with address
✔ Fixed Transmission -- Each module can connect with other module in different addresses and channels to achieve application like networking, repeating, etc.
Product Ranking
#2283 in Single Board Computers (Computers & Accessories)
Product Description

Notice: If you're not familiar with LoRa wireless module, you'd better to buy two same frequency modules + antennas as you'll need two to transmit and receive data.

Description:

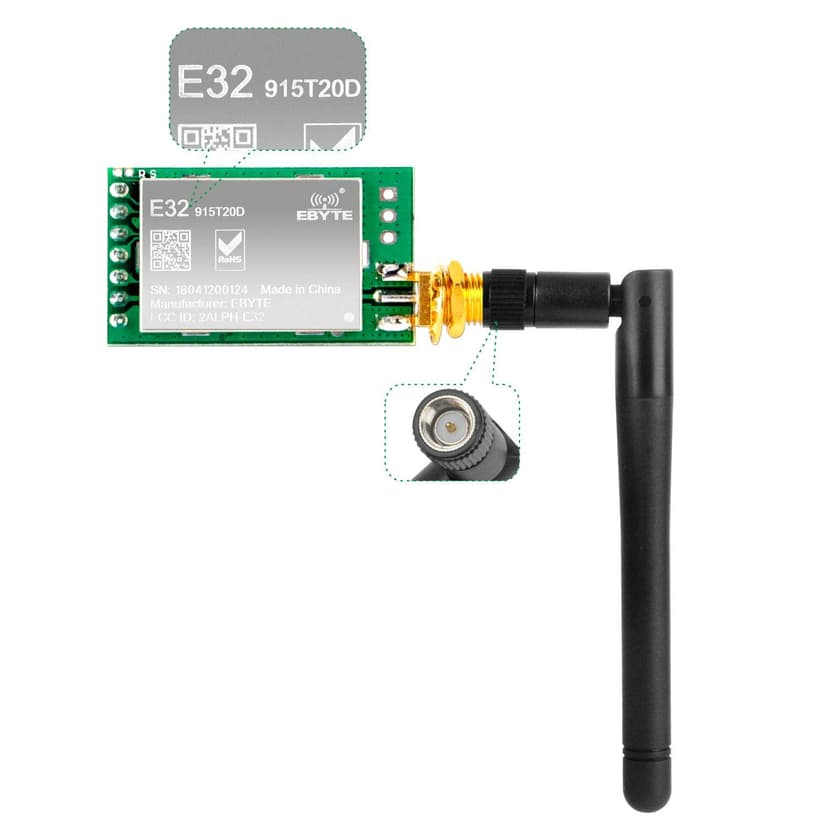

E32-900T20D is a 100mW wireless transceiver module, operates at 862～930MHz, based on original imported RFIC SX1276 fromSEMTECH.

The module adopts LoRa spread-spectrum technology, which means the transmitting distance is much longer than before. Widely used in various occasions: Meter Reading, Smart Home, Smart Agriculture, Smart Oil Field, Industrial Wireless Control, Environment Monitor, Temp/humidity Sensor and etc.

RF Parameter:
IC : SX1276
Working Frequency: 862-930MHz (Default: 868MHz)
Max Transmitting Power: 20dBm
Receiving Sensitivity:-123 dBm (Air Data Rate: 0.3kbps)
Air Data Rate: 0.3k~19.2kbps (Default: 2.4kbps)
Test distance: 5500 meter (In open and clear air, with maximum power, 5dBi antenna gain, height of 2.5m, Air Data Rate: 2.4kbps)

Hardware Parameter:
Size: 21 * 36 mm (Without SMA)
Antenna Type: SMA-K
Communication Interface: UART (Baud rate: 1200~115200, default: 9600)
Buffer: 512 bytes buffer (Automatically sub-packaging with 58 bytes per package)

Package Includes:
1 x LoRa UART Wireless Module(862～930MHz)
1 x LoRa SMA Antenna(862～930MHz)
Product Description

Notice: If you're not familiar with LoRa wireless module, you'd better to buy two same frequency modules + antennas as you'll need two to transmit and receive data.

Description:
E32-900T20D is a 100mW wireless transceiver module, operates at 862～930MHz, based on original imported RFIC SX1276 fromSEMTECH.

The module adopts LoRa spread-spectrum technology, which means the transmitting distance is much longer than before. Widely used in various occasions: Meter Reading, Smart Home, Smart Agriculture, Smart Oil Field, Industrial Wireless Control, Environment Monitor, Temp/humidity Sensor and etc.

RF Parameter:
IC : SX1276
Working Frequency: 862-930MHz (Default: 868MHz)
Max Transmitting Power: 20dBm
Receiving Sensitivity:-123 dBm (Air Data Rate: 0.3kbps)
Air Data Rate: 0.3k~19.2kbps (Default: 2.4kbps)
Test distance: 5500 meter (In open and clear air, with maximum power, 5dBi antenna gain, height of 2.5m, Air Data Rate: 2.4kbps)

Hardware Parameter:
Size: 21 * 36 mm (Without SMA)
Antenna Type: SMA-K
Communication Interface: UART (Baud rate: 1200~115200, default: 9600)
Buffer: 512 bytes buffer (Automatically sub-packaging with 58 bytes per package)

Package Includes:
1 x LoRa UART Wireless Module(862～930MHz)
1 x LoRa SMA Antenna(862～930MHz)
