The VL53L1X is a third-generation FlightSense technology time-of-flight sensor that extends the TOF ranging length to 4 meters and the ranging frequency to 50 Hz. The VL53L1X uses ST's latest ToF technology, which integrates physical infrared filters and optical components to provide distance measurement and immunity to interference regardless of target color and reflectivity. The FlightSense sensor directly measures the distance between the object and the sensor based on the photon round-trip flight time. The measurement accuracy is not affected by the surface characteristics of the measured object, making the low-power high-precision ranging and proximity detection function suitable for a wider range of applications.
Note: For technical support, please refer to CQRobot Wiki to get the test code, SKU: ‎ CQRWX00744US.

SPECIFICATIONS

Long Distance Ranging Sensor Specifications
- Working Voltage: 3.3V/5V
- Product Size: 28.5 mm * 23 mm
- Through Hole Size: 3.0 mm
- Range Measurement: 40 mm to 4000 mm
- Ranging Accuracy: Plus/Minus 5%
- Ranging Time (min): 20 ms (Short Distance Mode), 33 ms (Medium Distance / Long - Distance Mode)
- Ranging Angle: 27 Degree
- Laser wavelength: 940 nm
- Working Temperature: -20 Degree Celsius to 80 Degree Celsius
Interface Cable Specifications
- Cable specifications: 22AWG
- Material: Silicone
- Withstand Voltage: Less Than 50V
- Withstand Current: Less Than 1000MA
- Length: 21cm
- Line Sequence: Black-Negative Power Supply; Red-Positive Power Supply; Green-SDA; Blue-SCL; Yellow-SHUT; Orange-INT.

DISTRIBUTION LIST

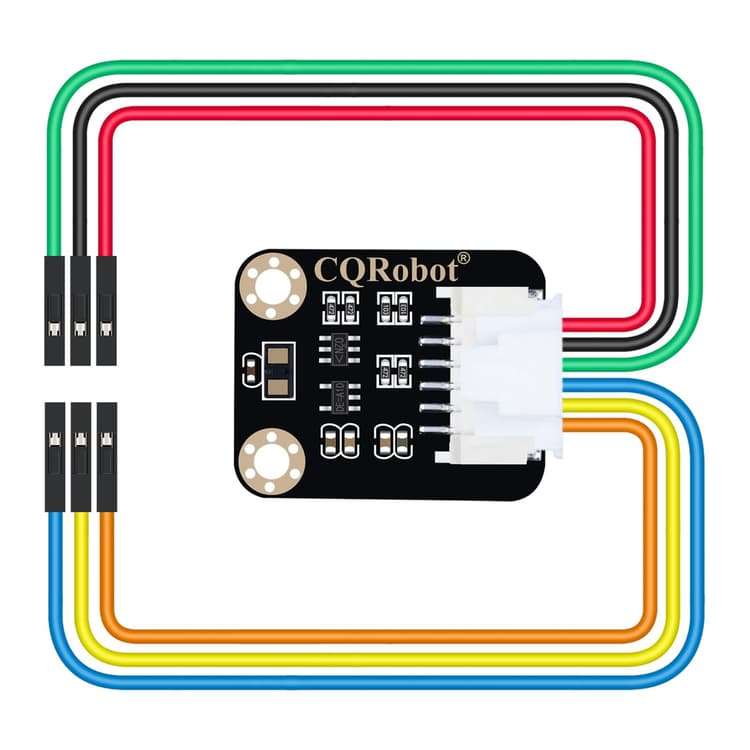

1 * Long Distance Ranging Sensor (VL53L1X)
1 * JST 6-Pin Cable
