flagProduct From USA

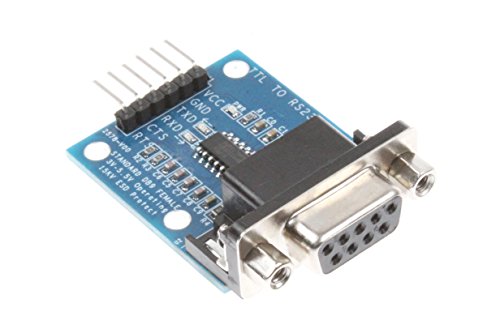

new | NOYITO TTL to RS232 Module TTL RS232 Male Female Mutual Conversion Module Serial Level Conversion to SP232 TTL Serial Port Communicates with RS232 Level Device 15KV ESD Protect (Female)
SKU : 02501BAUXXB07BJJC3R6
Brand : NOYITO
new | NOYITO TTL to RS232 Module TTL RS232 Male Female Mutual Conversion Module Serial Level Conversion to SP232 TTL Serial Port Communicates with RS232 Level Device 15KV ESD Protect (Female)
SKU : 02501BAUXXB07BJJC3R6
Brand : NOYITO
Product Specifications
Conditionnew
AsinB07BJJC3R6
CategoryElectronics
SubcategoryCables & Interconnects
LeafcategoryPC Accessory
MPNNO-TTLRS232-F
ColorFemale
Connector TypeSerial Adapter
OriginUSA
BrandnameNOYITO
Height1
Length1
Width1
Weight1
Warranty DescriptionManufacturer's One-year After-sale Warranty
Product Details
Uses: TTL serial port communicates with RS232 level devices. Serial expansion of the device. RS232 port communication with Computer PC.
Supports 3-5.5V power supply.15KV ESD Protect
RS232 can choose male or female.
The package contains six DuPont wires.
Use high-quality chips. In order to facilitate the use of the product, each pin is marked, and a schematic diagram of the product is printed on the back of the product.
Product Ranking
#454 in Serial Adapters
Product Description
Uses：
The TTL serial port communicates with the RS232 level device.
Serial expansion of the device.
RS232 port communication with computer PC.
Can be used for GPS, electronic compass, car detection, hard disk maintenance etc .(Need the user staff with a certain degree of professional knowledge and operational capabilities)

Description:
Supports 3-5.5V power supply.
RS232 can choose male or female.
The package contains six DuPont wires.
Use high-quality chips.
In order to facilitate the use of the product, each pin is marked, and a schematic diagram of the product is printed on the back of the product.

Instructions for use:
(Taking the access MCU as an example, how to connect each row of pins)
TTL (UART) side:
VCC: DC 3V-5.5V
GND: Connect to GND
TXD: Connect to MCU.RX (Signal Flow: MCU.RX ← SP3232 ← RS232.TX )
RXD: Connect to MCU.TX (Signal Flow: MCU.TX → SP3232 → RS232.RX)
CTS, RTS is not used by default.

RS232 side:
RXD: Connect RS232.TX (Signal Flow: RS232.TX →SP3232 → MCU.RX)
TXD: Connect to RS232.RX (Signal Flow: RS232.RX ← SP3232 ← MCU.TX)
GND: Connect to RS232.GND
CTS, RTS is not used by default.

Package Included:
1 pcs TTL to RS232 Module
Product Description
Uses：
The TTL serial port communicates with the RS232 level device.
Serial expansion of the device.
RS232 port communication with computer PC.
Can be used for GPS, electronic compass, car detection, hard disk maintenance etc .(Need the user staff with a certain degree of professional knowledge and operational capabilities)

Description:
Supports 3-5.5V power supply.
RS232 can choose male or female.
The package contains six DuPont wires.
Use high-quality chips.
In order to facilitate the use of the product, each pin is marked, and a schematic diagram of the product is printed on the back of the product.

Instructions for use:
(Taking the access MCU as an example, how to connect each row of pins)
TTL (UART) side:
VCC: DC 3V-5.5V
GND: Connect to GND
TXD: Connect to MCU.RX (Signal Flow: MCU.RX ← SP3232 ← RS232.TX )
RXD: Connect to MCU.TX (Signal Flow: MCU.TX → SP3232 → RS232.RX)
CTS, RTS is not used by default.

RS232 side:
RXD: Connect RS232.TX (Signal Flow: RS232.TX →SP3232 → MCU.RX)
TXD: Connect to RS232.RX (Signal Flow: RS232.RX ← SP3232 ← MCU.TX)
GND: Connect to RS232.GND
CTS, RTS is not used by default.

Package Included:
1 pcs TTL to RS232 Module
