new | DROK Voltage Amp Meter DC, Battery Monitor DC 0-300V 200A, Ammeter Voltmeter for Solar System Setup Power Energy Capacity Volt Current Detector Panel with Hall Sensor
SKU : 04601BAUXXB07B4CWKRJ
Brand : DROK
new | DROK Voltage Amp Meter DC, Battery Monitor DC 0-300V 200A, Ammeter Voltmeter for Solar System Setup Power Energy Capacity Volt Current Detector Panel with Hall Sensor
SKU : 04601BAUXXB07B4CWKRJ
Brand : DROK
Product Specifications
Conditionnew
AsinB07B4CWKRJ
CategoryTools & Home Improvement
SubcategoryMulti Testers
LeafcategoryHome Improvement
MPN2001712003US
ColorBlack
OriginUSA
BrandnameDROK
Height1
Length1
Width1
Weight1
Product Details
Multifunctional Meter: DROK multimeter panel is available to measure percentage and AH of remaining capacity, DC positive and negative bidirectional current, DC voltage, DC positive and negative power, DC positive and negative bidirectional accumulated electric energy. Voltage measurement range is DC 0-300V, current measurement range is 0-200A.

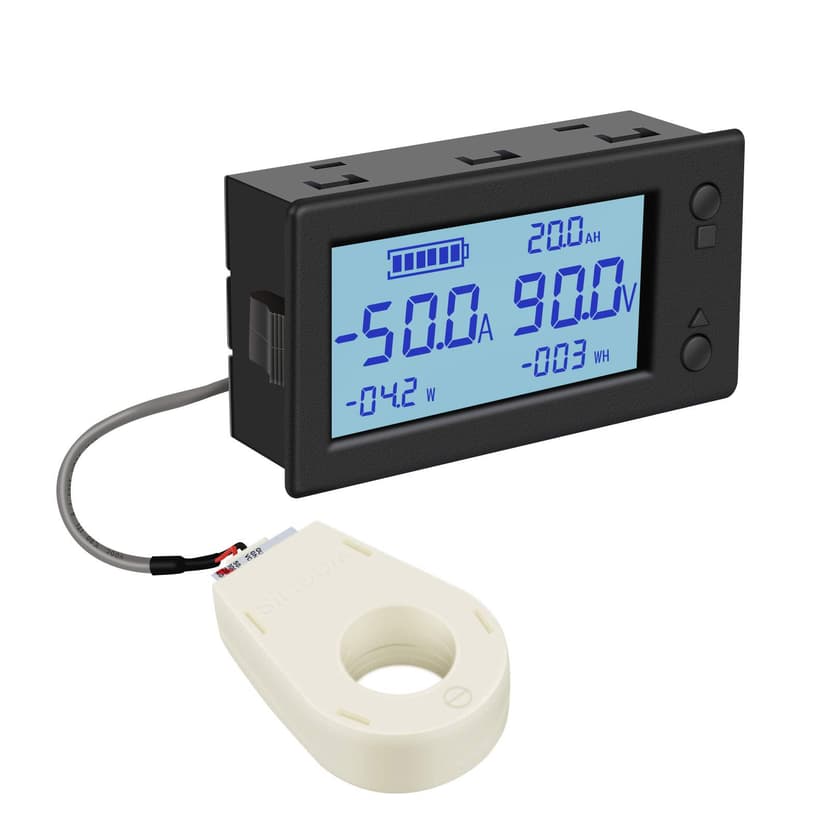

Hall Sensor & Easy Mount: the voltage amperage meter is coming with a Hall transformer to for isolated measurement, reliable and safe; accepting two-wire system connection and three-wire system connection, could be powered DC5~90V, easy and simple to wire this meter up.
Display: backlight can be controlled to be ON or OFF as user’s need; Equipped with full angle of view LCD screen, users could see the display clearly whenever at night and day, indoor or outside, even under the sunshine.
Alarming Function: it will alarm and flash to draw your attention when the real voltage is higher or lower than preset alarming voltage and real current is higher than preset current; It will also alarm and flash to remind you to charge for your device when the remaining capacity of battery is low.
Wide Applications: Can be used as dc amp meter, digital volt meter, power meter, battery capacity monitor. Suitable for all kinds of batteries, such as Lead-acid batteries, Lithium Polymer batteries, lithium iron phosphate batteries and etc. With function of storing date when power down, using this meter, no need to worry that your electric data will be lost.
Product Ranking
#9 in Multimeters & Analyzers
#49808 in Automotive
Product Description

DROK Battery Tester Digital Voltage Ampere Power Energy Multimeter

Technical Parameters:
Model: WLS-PVA200
Current measuring range: 200A
Current resolution: 0.2A
Power supply range: DC5～90V
Voltage measuring range: DC0～300V
Voltage resolution: 0.1V
Capacity measuring range: 0～999AH
Power measuring range: 0～999KW
Electric energy measuring range: 0～999KWH
Measurement error:±1%
Refreshing speed: 0.5S/time
Installing size: 76.0mm * 39.5mm
Diameter of transformer:Φ20mm
Working current: backlight on: 10MA;backlight off：4MA

Package includes:
1 X LCD Digital Cullen Meter

Product Description

DROK Battery Tester Digital Voltage Ampere Power Energy Multimeter

Technical Parameters:
Model: WLS-PVA200
Current measuring range: 200A
Current resolution: 0.2A
Power supply range: DC5～90V
Voltage measuring range: DC0～300V
Voltage resolution: 0.1V
Capacity measuring range: 0～999AH
Power measuring range: 0～999KW
Electric energy measuring range: 0～999KWH
Measurement error:±1%
Refreshing speed: 0.5S/time
Installing size: 76.0mm * 39.5mm
Diameter of transformer:Φ20mm
Working current: backlight on: 10MA;backlight off：4MA

Package includes:
1 X LCD Digital Cullen Meter
