flagProduct From USA

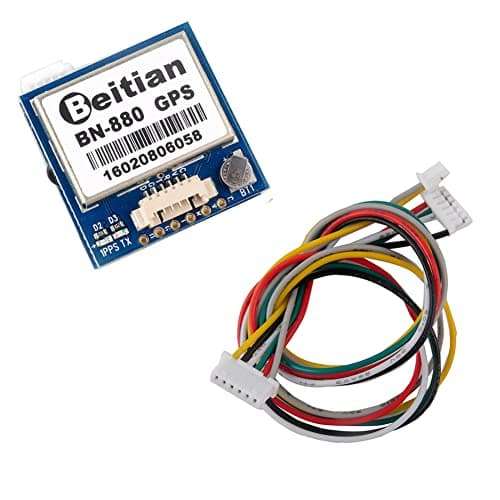

new | Geekstory BN-880 GPS Module U8 with Flash HMC5883L Compass + GPS Active Antenna Support GPS Glonass Beidou Car Navigation for Arduino Raspberry Pi Aircraft Pixhawk APM Flight Controller
SKU : 01401BAUXXB078Y6323W
Brand : Geekstory
new | Geekstory BN-880 GPS Module U8 with Flash HMC5883L Compass + GPS Active Antenna Support GPS Glonass Beidou Car Navigation for Arduino Raspberry Pi Aircraft Pixhawk APM Flight Controller
SKU : 01401BAUXXB078Y6323W
Brand : Geekstory
Product Specifications
Conditionnew
AsinB078Y6323W
CategoryElectronics
SubcategoryAntennas
LeafcategorySpeakers
MPNBeitian BN
OriginUSA
BrandnameGeekstory
Height1
Length1
Width1
Weight1
Product Details
BN-880 is suitable for Open source flight controller, not for flight control with SCM
Bn 880 gps module is dual module compass, with and electronic compass IC HMC5883L
Bn 880 gps module has flash to save configuration. So you do not need to reset next time when you use it
DIts data Level is TTL or RS-232, Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable
When you use it for Raspberry Pi, there is no driver needed but you need to install software
What's Inside The Box ?
BN-880 GPS Module, 15cm Cable
Product Ranking
#100 in GPS Antennas
Product Description
Description:
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format: GPS, GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm , Capture-148dBm
Positioning Time:Cold Start: avg26s , Warm Start: avg25s, Hot Start: avg3s
Level Positioning Precision: 2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precision: 0.1 m/s (Without Aid)
Acceleration Precision :0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m, Max Speed:5153m/s,Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+85℃
Size:28mm x 28mm x 10mm
The Module's Pins:SDA,GND,TX,RX,VCC,SCL

Features:
 GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat

Note:
 Can not use for flight control with SCM, but it is suitable for Open source flight controller.
GPS Program Set up documents and instructions:Please click here BN-880 GPS Configuration files

Package Included:
 1x BN-880 GPS Module
1x 15cm Cable
Product Description
Description:
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format: GPS, GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm , Capture-148dBm
Positioning Time:Cold Start: avg26s , Warm Start: avg25s, Hot Start: avg3s
Level Positioning Precision: 2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precision: 0.1 m/s (Without Aid)
Acceleration Precision :0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m, Max Speed:5153m/s,Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 38400dps
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+85℃
Size:28mm x 28mm x 10mm
The Module's Pins:SDA,GND,TX,RX,VCC,SCL

Features:
 GPS Module,Dual Module Compass
With electronic compass IC HMC5883L
1.25mm spacing between the 6pins patch seat

Note:
 Can not use for flight control with SCM, but it is suitable for Open source flight controller.
GPS Program Set up documents and instructions:Please click here BN-880 GPS Configuration files

Package Included:
 1x BN-880 GPS Module
1x 15cm Cable
