| Condition | new |
|---|---|
| Asin | B078S2J7CY |
| Category | Industrial & Scientific |
| Subcategory | Temperature Controllers |
| Leafcategory | BISS |
| MPN | Walfrontzmdbpvth1w |
| Origin | USA |
| Brandname | Walfront |
| Height | 0.39 |
| Length | 1.97 |
| Width | 1.57 |
| Weight | 1 |

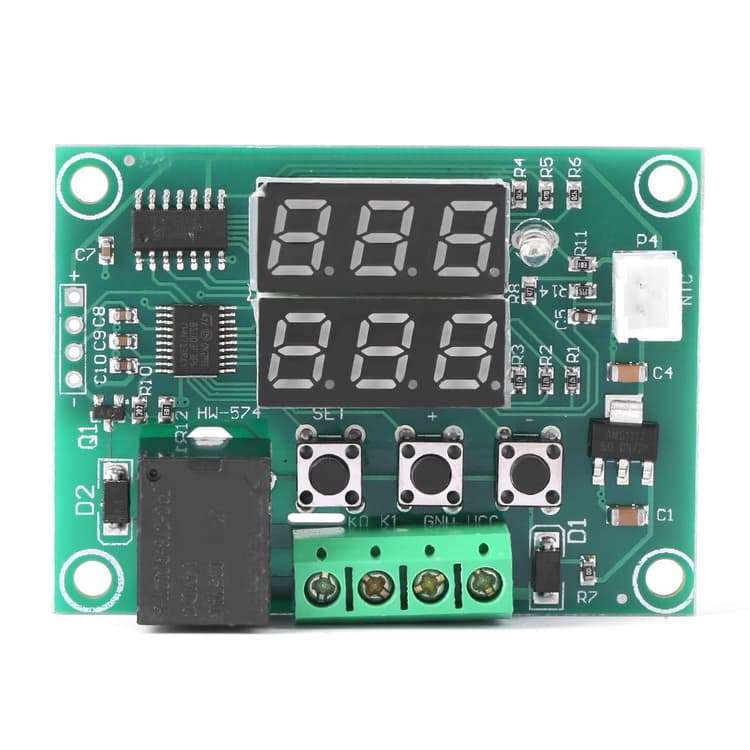

Specifications:
Control Range
-50℃~110℃
Control Exactness
0.1℃
Sensor Input
NTC10K water-resistant sensor L=0. 5M
Temperature Alarm
-49℃~110℃
Input Voltage
DC12V
Output Type
Relay output maximum. 10A
Return Difference Set
0.1~30℃
Delay Start
0~10minutes
Temperature Correction
-10℃~+10℃
Red Display
Instruction:
K0 K1 Terminal:
Thermostat output type is relay output, K0 and K1 is equivalent to a extension relay switch; 12V power supply the thermostat, sensor detects temperature, internal temperature control program control relay output and load (if the load is powered by AC power supply, it is safer to connect K0 and K1 to live wire)
Code
Function
Setting Range
Default
P0
Temperature Control Mode
H(hot)/C(cold)
C
P1
Return Difference Setting
0.1~30℃
2℃
P2
Temperature Correction
-10~10℃
0℃
P3
Delay Start
0~10 (min.)
0
P4
Temperature Alarm
-49~110℃
110℃
"SET" Button: Set switch
"+" Button: Increase temperature
"-" Button: Reduce temperature
to Factory Settings: Power on, press and hold "+" and "-" buttons together for about 3 seconds.
Package Includes:
1 x Temperature Controller
