new | DIYmall Optical Fingerprint Reader Sensor Module for Ar Duino 2560 R3 Raspberry Pi ESP8266 ESP32 51 AVR STM32 Red Light DC 3.8-7V
Brand : DIYmall
new | DIYmall Optical Fingerprint Reader Sensor Module for Ar Duino 2560 R3 Raspberry Pi ESP8266 ESP32 51 AVR STM32 Red Light DC 3.8-7V
Brand : DIYmall

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 5,109.00
M.R.P :₹ 7,152.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 5,109.00
M.R.P : ₹ 7,152.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB077GKPWMN
CategoryElectronics
SubcategoryAudio & Video Accessories
LeafcategorySpeakers
MPNFZ2904
ColorFingerprint sensor
OriginUSA
BrandnameDIYmall
Height0.12
Length1.22
Width0.71
Weight1
Product Details
It can work with any microcontroller which with serial port: such as Ar duino,51,avr,stm32,pic,arm,msp430. Pls note: the connection for the fingerprint sensor with 2560 and R3 is different, pls follow the connection diagram shows in the product images.
Functions: fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search;Applications: Fingerprint door locks, Access control systems, management software, fingerprint payment etc.
What you will get is: 1 X Fingerprint Reader Sensor Module with 1pc plug cable. If any question, pls contact us by email.You can find " Sold by DIYmall" under Buy Now button, click "DIYmall" and you will get to a new page, click "Ask a question".
Product Ranking
#362 in Security & Surveillance Biometrics
Product Description
Specifications: Supply voltage: DC 3.8 ~ 7.0V
Backlight color: red
Light way: long light / flashing
Supply current: Operating current: <60mA
Peak current: <85mA
Fingerprint image input time: <0.5 seconds
Window area: 15 × 17mm
Matching method: Comparison method (1: 1)
Search method (1: N)
Characteristic file: 384 bytes
Template file: 786 bytes
Storage capacity: 240
Security Level: 3 (from low to high: 1,2,3,4,5)
False Acceptance Rate (FAR): <0.001% (Security Level 3)
Refusal rate (FRR): <1.0% (security level is 3)
Search time: <220 ms (1: 240 average)
Host interface: UART (TTL logic level)
Communication baud rate (UART): (9600 × N) bps Where N = 1 ~ 12
(default N = 6, ie 57600bps)
It can work with any microcontroller which with serial port:such as Arduino,51,avr,stm32,pic,arm,msp430
Many functions:fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search
Applications:
Fingerprint door locks, safes, guns, financial and other security areas;
Access control systems, industrial computers, POS machines, driving training, attendance and other areas of identity;
Private clubs, management software, licensing and other management areas;
Medicare recipients, pensioners receive, fingerprint payment and other financial areas.
Connection:
pin #2 is IN from sensor (GREEN wire)
pin #3 is OUT from arduino (WHITE wire)
5V connect sensor (Red wire)
GND connect sensor (Black wire)

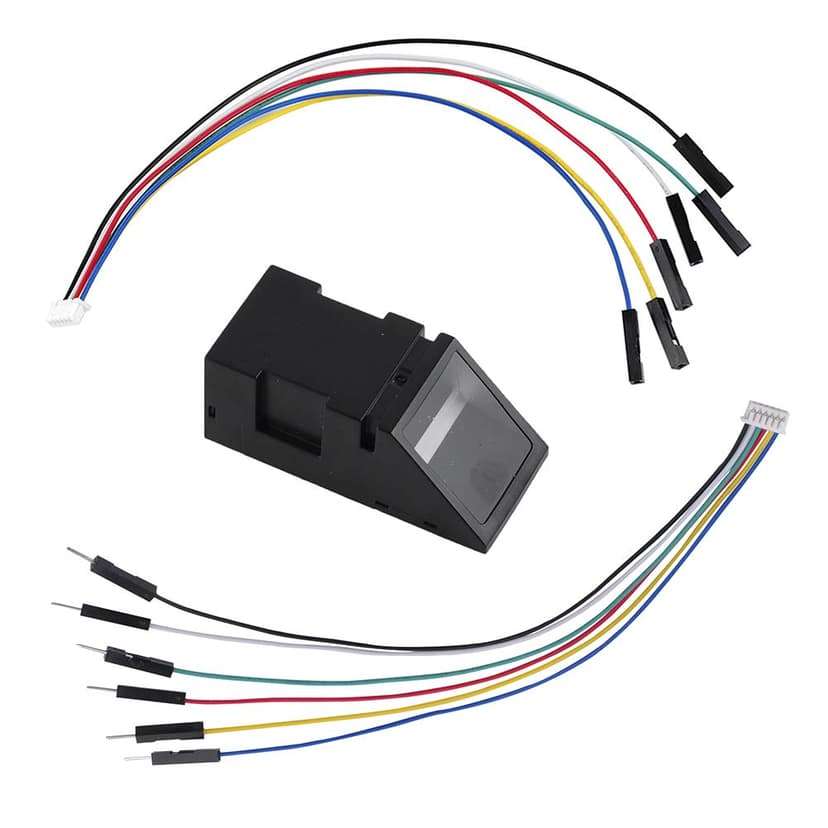

Package Includes:
1 X Optical Fingerprint Reader Sensor
1 X Cable
