flagProduct From USA

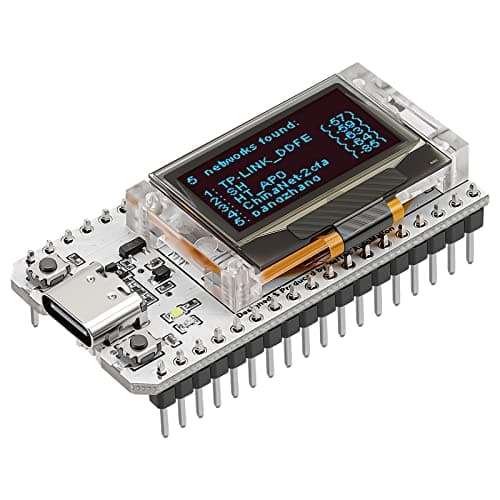

new | MakerFocus ESP32 OLED WiFi Kit V3 Integrated WiFi Bluetooth 2.4GHz PCB Antenna CP2102 Development Board with 0.96-inch OLED Display for Arduino Intelligent Scenes
SKU : 00301BAUXXB076KJZ5QM
Brand : MakerFocus
new | MakerFocus ESP32 OLED WiFi Kit V3 Integrated WiFi Bluetooth 2.4GHz PCB Antenna CP2102 Development Board with 0.96-inch OLED Display for Arduino Intelligent Scenes
SKU : 00301BAUXXB076KJZ5QM
Brand : MakerFocus
Product Specifications
Conditionnew
AsinB076KJZ5QM
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryPersonal Computer
MPNUZM173505AEVXI378
CPU ProcessorTegra
CPU ManufacturerNVIDIA
CPU Speed240
Processor Count2
OriginUSA
BrandnameMakerFocus
Height0.05
Length1.97
Width1
Weight1
Total USB Ports1
RAM Memory Installed Size8 MB
RAM Memory TechnologySRAM
Product Details
Support Ard uino Development Environment: WiFi kit 32 is a classic IoT Dev-board, it’s a highly integrated development board based on ESP32 (including WiFi and BLE)
Easy to Use: With good RF circuit and low-power design, ESP32 development board is the best choice for smart cities, farms, homes and IoT makers
Perfect Circuit Design: Onboard WiFi, Bluetooth 2.4GHz PCB antenna. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
Power Supply: Onboard SH1.25 battery interface, integrated lithium battery management system. You can also use the Type-C interface to power the development board, the interface with complete ESD protection, short circuit protection, RF shielding and other protection measures
OLED Display: Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information
What's Inside The Box ?
1 * ESP32 Development Board
Product Ranking
#1621 in Single Board Computers (Computers & Accessories)
Product Description
WiFi Kit 32 (V3) is a classic IoT development board. It’s a highly integrated product based on ESP32(including WiFi and BLE), Li-Po battery management system, 0.96” OLED are also included. It’s the best choice for smart cities, farms homes and IoT makers

Features:
1. Microprocessor: ESP32-S3FN8 (Main frequency up to 240 MHz)
2. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures
3. Onboard SH1.25-2 battery interface, integrated lithium battery management system 4. Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna
5. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information
6. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
7. Support the Ar duino development environment

Parameter:
WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh
Hardware Resource: 7*ADC1+2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI, etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2*1.25 lithium battery interface; 2*18*2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Power consumption: Deep sleep 10 uA
Operating temperature: -20~70℃
Dimensions: 50.2 * 25.5* 10.2 mm

Package Content:
1 * Power Cord
1 * ESP32 Development Board
2 * Pin Headers
Product Description
WiFi Kit 32 (V3) is a classic IoT development board. It’s a highly integrated product based on ESP32(including WiFi and BLE), Li-Po battery management system, 0.96” OLED are also included. It’s the best choice for smart cities, farms homes and IoT makers

Features:
1. Microprocessor: ESP32-S3FN8 (Main frequency up to 240 MHz)
2. Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures
3. Onboard SH1.25-2 battery interface, integrated lithium battery management system 4. Onboard Wi-Fi, Bluetooth 2.4GHz PCB antenna
5. Onboard 0.96-inch 128*64 dot matrix OLED display, which can be used to display debugging information, battery power and other information
6. Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing
7. Support the Ar duino development environment

Parameter:
WiFi: 802.11 b/g/n, up to 150Mbps
Bluetooth: Bluetooth LE, Bluetooth 5, Bluetooth mesh
Hardware Resource: 7*ADC1+2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI, etc.
Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash
Interface: Type-C USB; 2*1.25 lithium battery interface; 2*18*2.54 Header Pin
Battery: 3.7V lithium battery power supply and charging
Power consumption: Deep sleep 10 uA
Operating temperature: -20~70℃
Dimensions: 50.2 * 25.5* 10.2 mm

Package Content:
1 * Power Cord
1 * ESP32 Development Board
2 * Pin Headers
