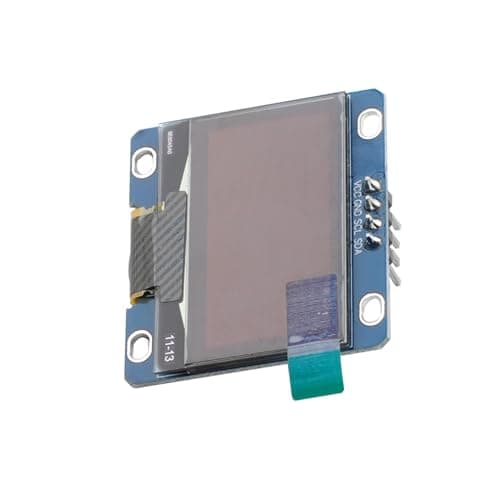

new | DIYmall 1.3" OLED Display Module I2C IIC Serial 128X64 SH1106 LCD Blue Light Screen for Arduino Raspberry Pi 51 MSP420 STIM32 SCR ESP32
Brand : DIYmall
new | DIYmall 1.3" OLED Display Module I2C IIC Serial 128X64 SH1106 LCD Blue Light Screen for Arduino Raspberry Pi 51 MSP420 STIM32 SCR ESP32
Brand : DIYmall

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
 3,200.00
M.R.P : 4,480.00

5% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
3,200.00
M.R.P : 4,480.00

5% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days   Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB073VD6W1H
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryBISS Basic
MPNFZ1427-1
Colorblue
OriginUSA
BrandnameDIYmall
Height1.18
Length1.38
Width0.39
Weight1
Product Details
Supported Platforms: for arduino,raspberry pi, 51 series, MSP430 series, STIM32 / 2, SCR chips, ESP32
Support wide voltage: 3.3V-5V DC
Communication: IIC, only two I / O ports
Driver: SH1106
What You Get: 1 X 1.3" Blue Oled
Product Ranking
#5801 in Single Board Computers (Computers & Accessories)
Product Description
Description:
Size: 1.3
Resolution: 128X64
Color: Blue
Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SH1106
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight

Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data

Product Description
Description:
Size: 1.3
Resolution: 128X64
Color: Blue
Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SH1106
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight

Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
