The output voltage is adjustable from 0V-50.00V, the output current is adjustable from 0-5.000A.
The module can storage 10 groups of preset value and it can quickly extract 2 groups of preset value.

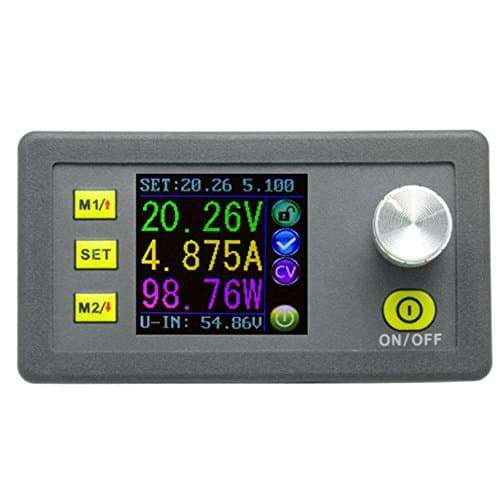

new | Diymore DP50V5A Step-Down Module DC 6-55V to 0-50V 5A Digital Adjustable Programmable Regulated Power Supply Buck Converter with LCD Display
Brand : diymore
new | Diymore DP50V5A Step-Down Module DC 6-55V to 0-50V 5A Digital Adjustable Programmable Regulated Power Supply Buck Converter with LCD Display
Brand : diymore
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
| Condition | new |
|---|---|
| Asin | B01N0VKTC2 |
| Category | Electronics |
| Subcategory | Power Converters |
| Leafcategory | PC Accessory |
| MPN | A6011516 |
| Color | 6-55V to 0-50V |
| Origin | USA |
| Brandname | diymore |
| Height | 1.9 |
| Length | 3.12 |
| Width | 1.69 |
| Weight | 1 |
Product Details
This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one.
In the output state display area, it is convenient for you to know whether the output works, constant voltage/current output state, current data group extracted, etc.
With LCD display and the function of voltage and current meter, you can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc. With advanced functions, high accuracy, wide application, the item is really practical.
Product Ranking
#713 in Electrical Motor Controls
#710686 in Tools & Home Improvement
Product Description
Description:
This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one.
Specification:
Input voltage: 6-55V
Output power: 0-250W
Output voltage: 0V-50.00V
Output current: 0-5.000A
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: +/- (0.5% + 1 digit)
Output Current accuracy: +/- (0.5% + 2 digits)
Note: Input voltage must 1.1 times higher than the output voltage.
When large current circumstances, pay attention to heat elimination.
Wiring:
IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative
Note:
The maximum input voltage is 55V. It is better to make the value less than the limit value, otherwise the item maybe be damaged.
DP50V5A output for battery charging or capacitive load, please add a diode on output positive in case that the current flow backward the module.
Do not use the meter in AC power supply, and wiring should be exactly the same as the wiring diagram, or else it will cause damage.
Package Included:
1 X DP50V5A Power Supply Module
This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one.
