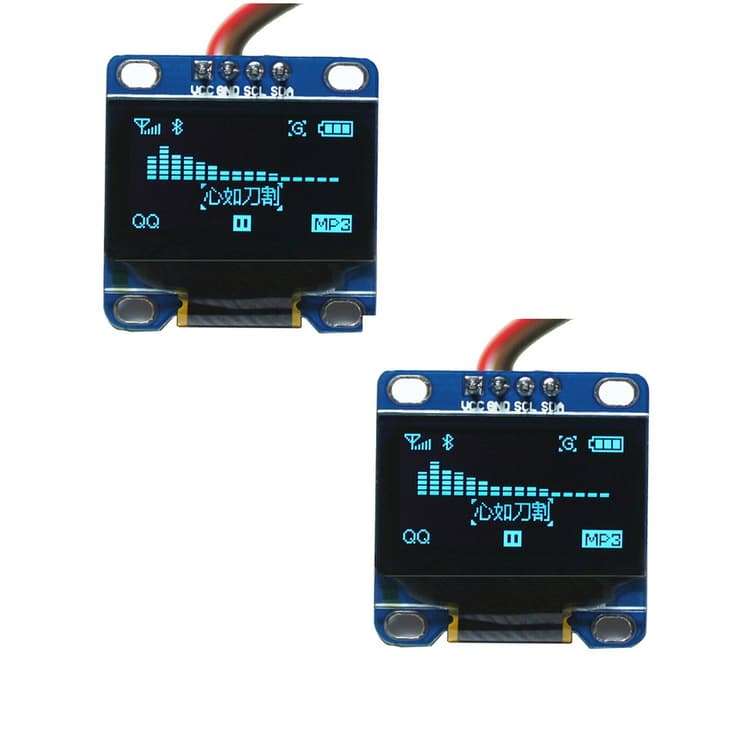

new | DIYmall 0.96 Inch Blue OLED Module I2C IIC Serial 128x64 LCD LED Display for Arduino Micro:bit 51 MSP420 STIM32 SCR (Pack of 2pcs)
SKU : 02501BAUXXB01HHOETIA
Brand : DIYmall
new | DIYmall 0.96 Inch Blue OLED Module I2C IIC Serial 128x64 LCD LED Display for Arduino Micro:bit 51 MSP420 STIM32 SCR (Pack of 2pcs)
SKU : 02501BAUXXB01HHOETIA
Brand : DIYmall
Product Specifications
Conditionnew
AsinB01HHOETIA
CategoryElectronics
SubcategoryComputer Components
LeafcategoryPC Accessory
MPNFZ1112X2
ColorBlue
OriginUSA
BrandnameDIYmall
Height1.18
Length1.18
Width1.97
Weight1
Display Size0.96 inches
Display TypeLED
Resolution128 x 64
Product Details
Compatible with MMDVM，Pi-Star, and it works with raspberry pi. https://tech(dot)scargill(dot)net/ssd1306-with-python/
Document link:https://drive(dot)google(dot)com/open?id=1qkexPET5MUICAarGOtlnQk4F-JEKkrHZ
The IIC address can be changed(pls check the 3rd picture),it is convenient to use with different machines
How to use 2 oled display modules at the same time, pls check this vedio for information: https://www(dot)youtube(dot)com/watch?v=yef23sJjiU0
What you will get is: 2 X 0.96inch oled blue,any question please feel free to contact us
Product Ranking
#21639 in Computer Components
Product Description
Size: 0.96
Resolution: 128X64
Color: Blue Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430
series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight Interface:
VCC: 3.3-5V GND: Ground
SCL: Serial Clock
SDA: Serial Data

Package Included:
2 X IIC OLED Moudle
Product Description
Size: 0.96
Resolution: 128X64
Color: Blue Viewing angle: greater than 160 degrees
Supported platforms: for arduino, 51 series, MSP430
series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight Interface:
VCC: 3.3-5V GND: Ground
SCL: Serial Clock
SDA: Serial Data

Package Included:
2 X IIC OLED Moudle
