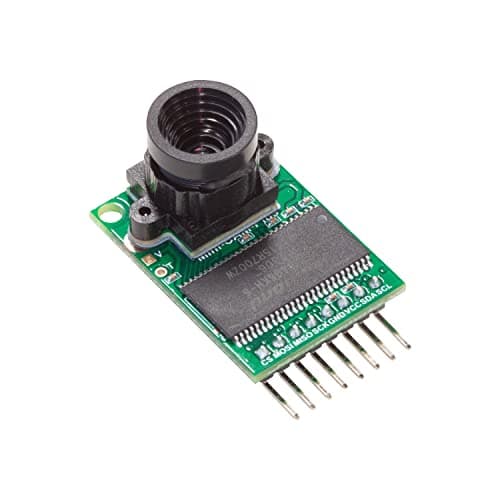

new | Arducam Mini Module Camera Shield with OV2640 2 Megapixels Lens Compatible with Arduino UNO Mega2560 Board and Raspberry Pi Pico
Brand : Arducam
new | Arducam Mini Module Camera Shield with OV2640 2 Megapixels Lens Compatible with Arduino UNO Mega2560 Board and Raspberry Pi Pico
Brand : Arducam
Product Specifications
Conditionnew
AsinB012UXNDOY
CategoryElectronics
SubcategorySingle Board Computers
LeafcategoryPhotography
MPNUCT_B0067
CPU ProcessorTegra
CPU ManufacturerArduCAM
Processor Count1
OriginUSA
BrandnameArducam
Height1
Length1
Width1
Weight1
Warranty Description6 months
Product Details
Compatible with Arduino, Raspberry Pi Pico, MCU, Raspberry Pi, ARM, DSP, FPGA platforms
2 megapixels image sensor OV2640, build-in 650nm IR block filter, visible light only
M12 mount or CS mount lens holder with changeable lens options
I2C interface for the sensor configuration，SPI interface for camera commands and data stream
What's Inside The Box ?
1 Arducam Mini module Camera Shield With OV2640 2 megapixels lens
Product Ranking
#174 in Single Board Computers (Computers & Accessories)
Product Description
Arducam-2MP-Plus is optimized version of Arducam shield Rev.C, and is a high definition 2MP SPI camera, which reduce the complexity of the camera control interface. It integrates 2MP CMOS image sensor OV2640, and provides miniature size, as well as the easy to use hardware interface and open source code library. The Arducam mini can be used in any platforms like Arduino, Raspberry Pi, Raspberry Pi Pico, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard boards. Arducam mini not only offers the capability to add a camera interface which doesn’t have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.

Application:
IoT cameras
Robot cameras
Wildlife cameras
Other battery-powered products

Features:
2 megapixels image sensor OV2640
M12 mount or CS mount lens holder with changeable lens options
IR sensitive with proper lens combination
I2C interface for the sensor configuration
SPI interface for camera commands and data stream
All IO ports are 5V/3.3V tolerant
Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
Provide open source code library
Small form of factor

Package Including:
1pcs Arducam Mini module Camera Shield With OV2640 2 megapixels lens
Product Description
Arducam-2MP-Plus is optimized version of Arducam shield Rev.C, and is a high definition 2MP SPI camera, which reduce the complexity of the camera control interface. It integrates 2MP CMOS image sensor OV2640, and provides miniature size, as well as the easy to use hardware interface and open source code library. The Arducam mini can be used in any platforms like Arduino, Raspberry Pi, Raspberry Pi Pico, Maple, Chipkit, Beaglebone black, as long as they have SPI and I2C interface and can be well mated with standard boards. Arducam mini not only offers the capability to add a camera interface which doesn’t have in some low cost microcontrollers, but also provides the capability to add multiple cameras to a single microcontroller.

Application:
IoT cameras
Robot cameras
Wildlife cameras
Other battery-powered products

Features:
2 megapixels image sensor OV2640
M12 mount or CS mount lens holder with changeable lens options
IR sensitive with proper lens combination
I2C interface for the sensor configuration
SPI interface for camera commands and data stream
All IO ports are 5V/3.3V tolerant
Support JPEG compression mode, single and multiple shoot mode, one time capture multiple read operation, burst read operation, low power mode and etc.
Provide open source code library
Small form of factor

Package Including:
1pcs Arducam Mini module Camera Shield With OV2640 2 megapixels lens
