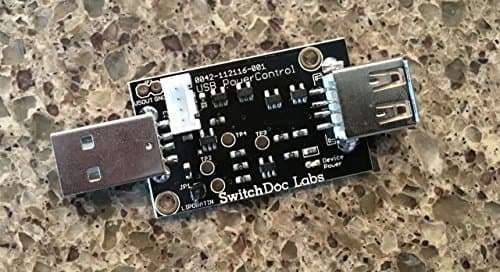

new | USB PowerControl Board - USB to USB Solid State Relay for Raspberry Pi and Arduinos
SKU : 00301BAUXXB00VQLS09K
Brand : SwitchDoc Labs
new | USB PowerControl Board - USB to USB Solid State Relay for Raspberry Pi and Arduinos
SKU : 00301BAUXXB00VQLS09K
Brand : SwitchDoc Labs
Product Specifications
Conditionnew
AsinB00VQLS09K
CategoryElectronics
SubcategoryUSB Flash Drives
LeafcategoryPersonal Computer
MPN5002271
OriginUSA
BrandnameSwitchDoc Labs
Height0.47
Length2.56
Width1.18
Weight1
Product Details
Can Switch the Power to any USB device plugged into the Female A USB port On/Off
Controlled by a single control line or by the Grove Connector
Implements Hysteresis on Control - 3.8V/3.3V Turn On/Off Voltage on Control Line. Can be connected to GPIO Pin or directly to LiPo Battery
Over Current Protection, Thermal Shutdown, Reverse Current Blocking
Full Documentation and Software for Raspberry Pi and Arduino on www.switchdoc.com. This is board V2.
Product Ranking
#9399 in USB Flash Drives
Product Description
The USB PowerControl Board is a digitally controlled power switch for your Arduino or Raspberry Pi. Anything you can plug into a USB port can be controlled with USB PowerControl. It's easy to hook up. You connect a control line (a GPIO line or the output of a LiPo battery) to the LIPOBATIN line and if the line is LOW (< ~3.3V) the USB Port is off. If it is HIGH (above 3.8V) the USB Port is turned on and you have 5V of power to the USB plug. Or you can use the on board grove connector to provide control for the USB PowerController Board. This board was initially designed to sit in-between a Solar Power Controller (such as SunAir/SunAirPlus) and a Raspberry Pi / Arduino. The input to the board was designed to come directly from a LiPo battery so the computer won't be turned on until the LiPo battery was charged up above 3.8V. We provide a hysteresis circuit so the board won't turn off until the voltage goes below around 3.3V. This is an excellent board to shut on and off USBpo wered devices like a Raspberry Pi and Arduino. It works just like a conventional relay.
Product Description
The USB PowerControl Board is a digitally controlled power switch for your Arduino or Raspberry Pi. Anything you can plug into a USB port can be controlled with USB PowerControl. It's easy to hook up. You connect a control line (a GPIO line or the output of a LiPo battery) to the LIPOBATIN line and if the line is LOW (< ~3.3V) the USB Port is off. If it is HIGH (above 3.8V) the USB Port is turned on and you have 5V of power to the USB plug. Or you can use the on board grove connector to provide control for the USB PowerController Board. This board was initially designed to sit in-between a Solar Power Controller (such as SunAir/SunAirPlus) and a Raspberry Pi / Arduino. The input to the board was designed to come directly from a LiPo battery so the computer won't be turned on until the LiPo battery was charged up above 3.8V. We provide a hysteresis circuit so the board won't turn off until the voltage goes below around 3.3V. This is an excellent board to shut on and off USBpo wered devices like a Raspberry Pi and Arduino. It works just like a conventional relay.
