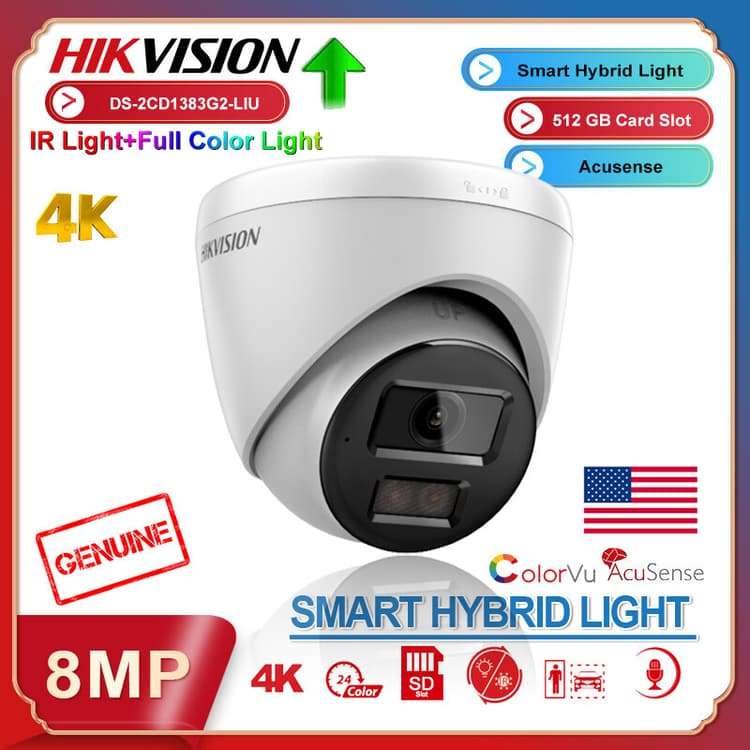

Hikvision 4K 8MP Smart Hybrid Light Colorvu IP Camera DS-2CD1383G2-LIU IP67 POE
>Hikvision APP : hik-connect, guard viewer, IVS-4200
>Search Tool：SADP （search device and change IP address）
>Warranty: 3years
>If there is any problem with use, please contact with us at any time. we have very professinal engineer, can help you set online.
>>> The Camera is 100% Hikvision Original , can support firmware upgrade;
>>> All the items are with 3 years warranty, if there is any problem after purchased, please contact us for help.
>>> All the items are with 3 years warranty, if there is any problem after purchased, please contact us for help.
8 MP Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot) (Optional)
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
DS-2CD1383G2-LIU
Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens
Lens TypeFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°
4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
Lens MountM12
Iris TypeFixed
ApertureF2.0
DORI
DORI
2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m
4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
Illuminator
Supplement Light TypeIR,White Light
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm
Video
Main Stream
50 Hz:
12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Region Of Interest (ROI)1 fixed region for main stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Audio
Audio TypeMono sound
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz
Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
ClientiVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Day/Night SwitchDay,Night,Auto,Schedule
Image EnhancementBLC,HLC,3D DNR
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privacy Mask4 programmable polygon privacy masks
Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-In MicrophoneYes
Reset Key-F: Yes
Event
Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
LinkageUpload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture
General
Power
12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 6.5 W
MaterialMetal & Plastic
DimensionØ110 mm × 93 mm (Ø4.33" × 3.66")
Package Dimension150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
WeightApprox. 385 g (0.85 lb.)
With Package WeightApprox. 586 g (1.3 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
LanguageEnglish, Ukrainian
General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
3 Modes Can Be Switched
This POE IP camera has 2PCS IR LED + 2PCS Warm Light LED, three modes can be switched ((IR mode only) (color mode only)
(IR+color mode) can be set freely, Color mode：Warm Light LED will always be on, Infrared + color mode: When a human body is detected,
the Warm Light LED will automatically turn on and switch to color mode,Very suitable for use in the front door, yard, garage
Ultra 8MP High HD Resolution
Observe high-quality footage with a 1/1.8" Progressive Scan CMOS
Ultra HD 8MP- Resolution (3840 × 2160@30fps) Provide a more HD and smoother visual experience.
Focus on human and vehicle targets classification based on
Empowered by deep learning algorithms,
Hikvision AcuSense technology brings human or vehicle target classification alarms to front- and back-end devices.
The system can greatly reduce false alarms generated by targets other than humans or vehicles,
vastly improving alarm efficiency and effectiveness
Ultra HD Resolution，Smart265+
Smart H.265 technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression
Motion detection&P2P
The camera support the motion detection，recording by the alarm detection，
Camera can easy to add the camera to mobile phone via APP，Preview in real time no matter where you are
Easy to use
The camera is Hikvsion original version, 100% English version, compatible with Hikvision and other brand protocol，
the camera can Plug and play with Hikvison NVR, Power Over Ethernet (POE) for easy installation
IP67 Weatherproof
Equipped with an ip67 rated weatherproof outer casing, designed to operate the camera even in extreme weather conditions.
Support On-vif
The camera is Hikvision 100% Original version camera, English Version, can plug and play with Hikvision NVR.
And support use with third party NVR.
