new | Oumefar Three Phase Motor Rotation Indicator, Sequence Tester, Handheld, 400V AC, 2-400Hz, 3.5mA, No Batteries Included
Brand : Oumefar
new | Oumefar Three Phase Motor Rotation Indicator, Sequence Tester, Handheld, 400V AC, 2-400Hz, 3.5mA, No Batteries Included
Brand : Oumefar

₹ 9,870.00
M.R.P :₹ 16,450.00

40% OFF

Availability :
In Stock

*Prices subject to change due to market. The price shown in the checkout is the guaranteed price.
₹ 9,870.00
M.R.P : ₹ 16,450.00

40% OFF

Availability :
In Stock
Delivery :
Available This pincode is not serviceable! Please try with a different pincode Checking...
Quantity
7 days Replacement
7 days Replacement
Manufacturers Warranty
Manufacturers Warranty
Top Brand
Top Brand
Free delivery
Free delivery
Secure Transaction
Secure Transaction
Blue Dart Delivered
Blue Dart Delivered
Contact For Bulk Product Enquiry
100% Guarantee Safe Checkout
  • visa
  • mastercard
  • discover
  • Maestrocard
  • paypal
  • americanexpress
  • paytm
  • upi
Note: Please be aware that products from the USA may come with an input voltage of 110V - 120V, requiring the use of an appropriate step-down transformer for compatibility. Understanding the device's wattage is essential for selecting the correct power converter.
Product Specifications
Conditionnew
AsinB08DFV5F4C
CategoryTools & Home Improvement
SubcategoryMulti Testers
LeafcategoryBISS Basic
MPNOumefardw8bny90vh
OriginUSA
BrandnameOumefar
Height1.22
Length4.92
Width2.64
Weight1
Product Details
【Parameters】 : Maximal working voltage : 400V AC voltage; Nominal voltage (tested at rotation direction) : 2~400V AC voltage , 2~400Hz; Nominal voltage (tested at phase sequence) : 120~400V AC voltage , 2~400Hz; Test current (per phase) : <3 . 5mA
【Product Description】 : PM5900 Motor and Phase Rotation Indicator is used to test magnetic field
【Long Service Life】 : This motor phase indicator is, and light weight handheld device , which is necessary tool for those who often install , repair or maintain three phase system or motor
【Easy to Use】 : Without a need to link testing line , the motor rotation direction can be decided by placing this indicator the motor and aligning it with motor drive shaft
【Multi Function】 : The direction tester also supports nontype magnetic field rotation direction test (motor rotation direction test)
Product Ranking
#567 in Test Indicators
#1812137 in Industrial & Scientific
Product Description

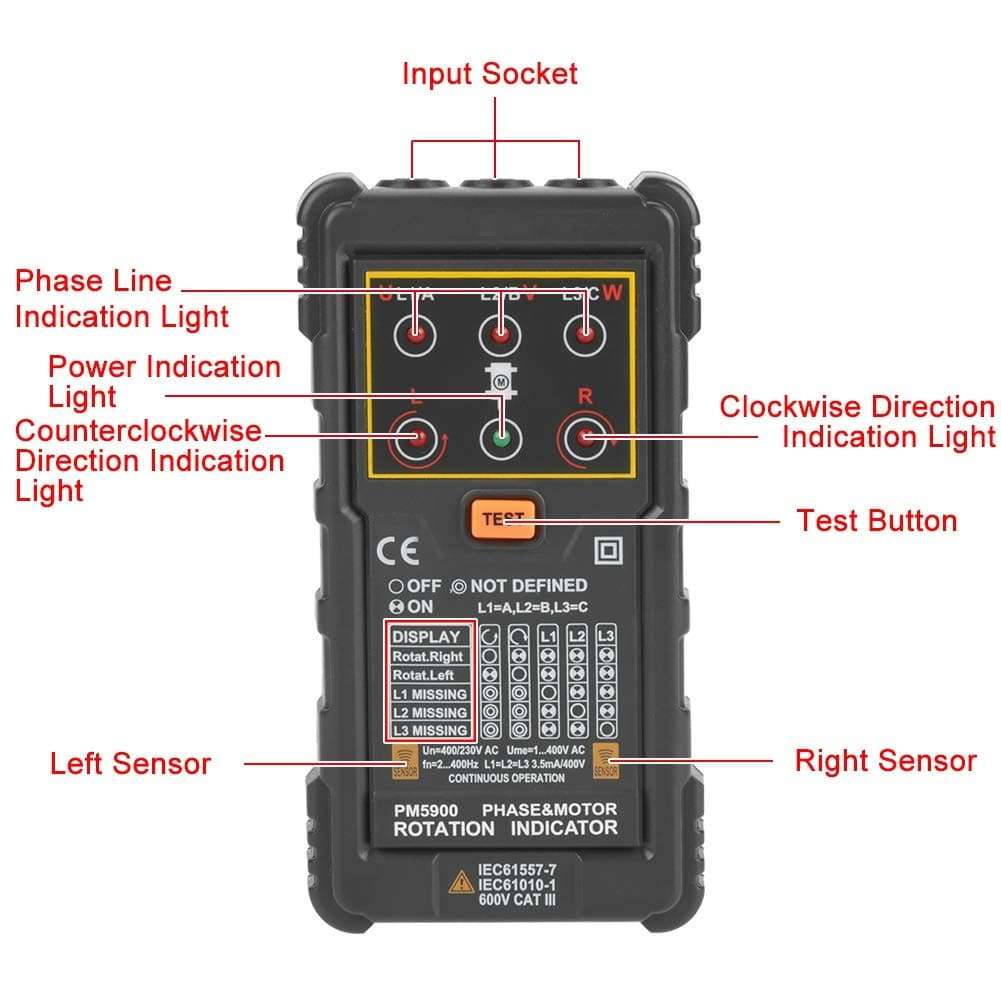

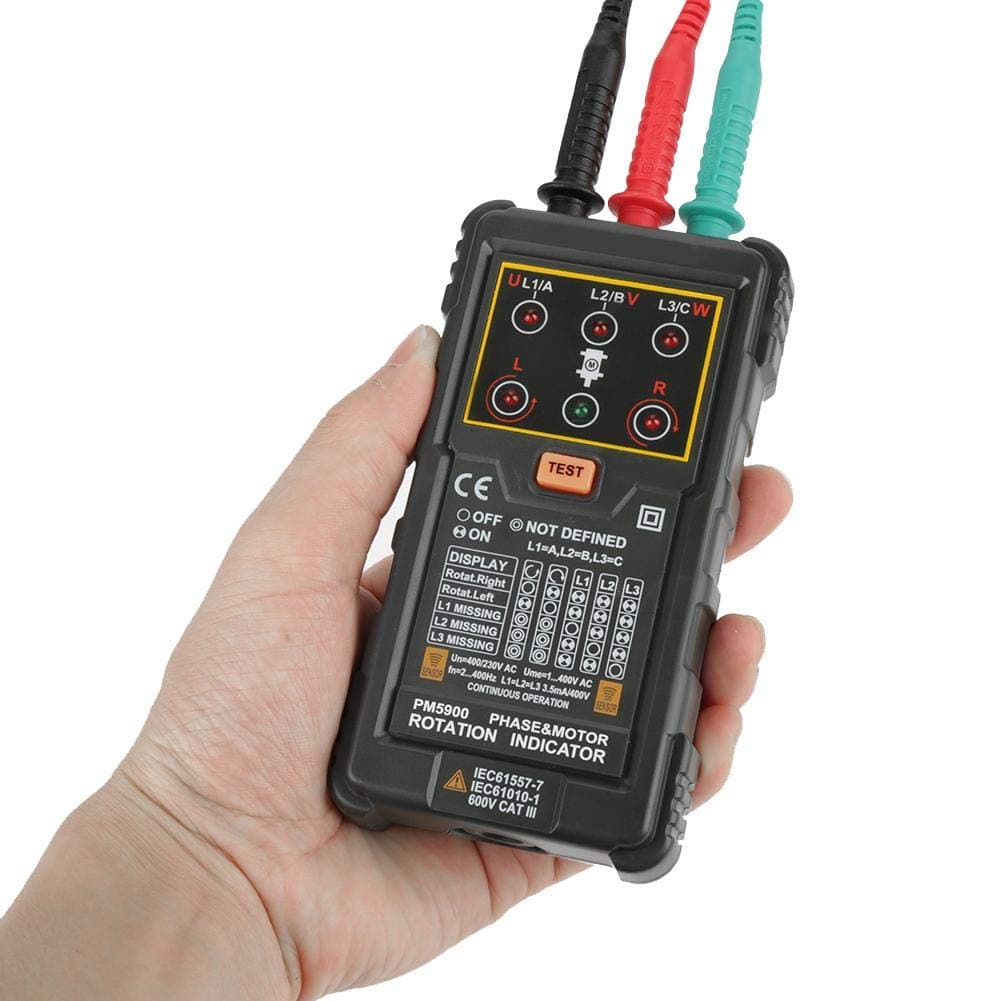

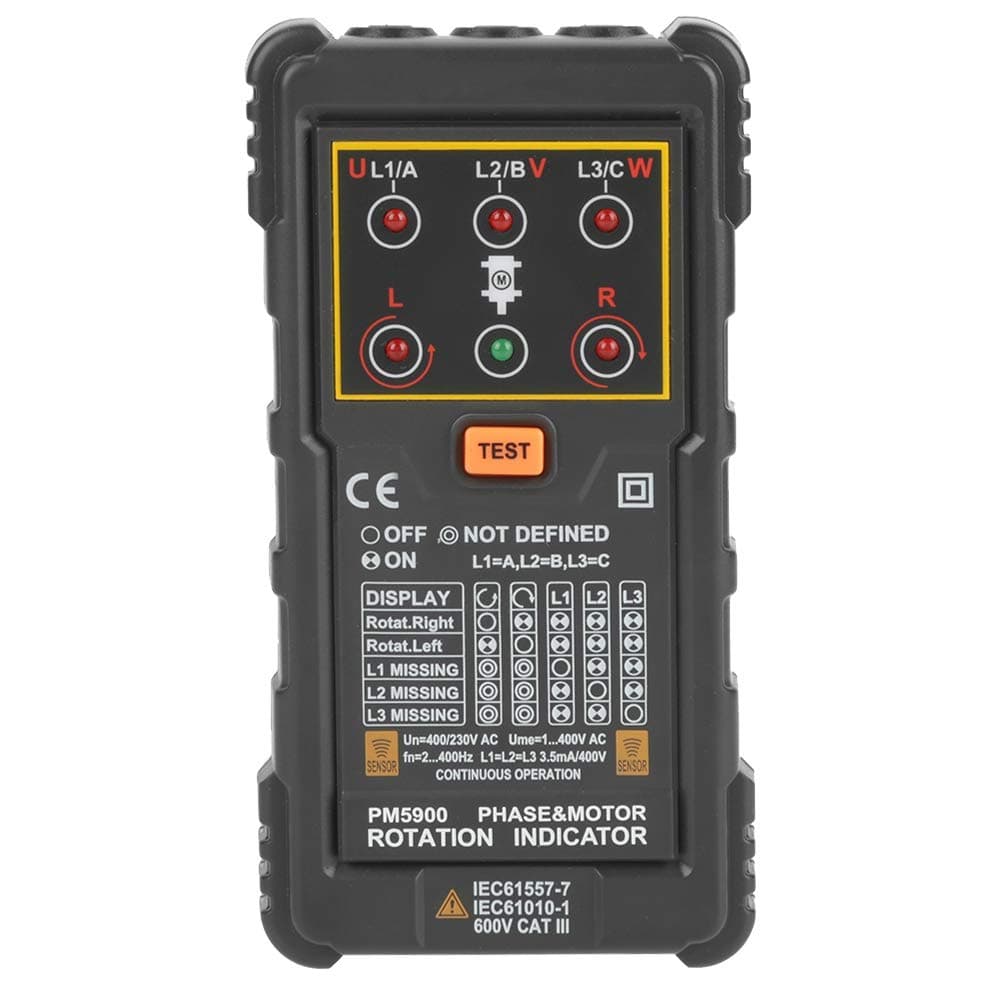

Features : PM5900 Motor and Phase Rotation Indicator is used to test magnetic field direction of three phase system , phase rotation , motor rotation direction . Without a need to link testing line , the motor rotation direction can be decided by placing this indicator the motor and aligning it with motor drive shaft . It is, and light weight handheld device , which is necessary tool for those who often install , repair or maintain three phase system or motor . Used to test phase sequence input of three phase voltage , to indicate phase line L1 , L2 and L3 . It also supports nontype magnetic field rotation direction test (motor rotation direction test) .


Specifications :

Brand : PEAKMETER
Model : PM5900

Maximal working voltage : 400V AC voltage

Nominal voltage (tested at rotation direction) : 2~400V AC voltage , 2~400Hz

Nominal voltage (tested at phase sequence) : 120~400V AC voltage , 2~400Hz

Test current (per phase) : <3 . 5mA

Battery : 3 x 1 . 5V AA batteries(NOT included)

Temperature :

Operating : 0~40℃ , maximal 80 % relative humidity (non condensing)

Storage : 10~50℃ , maximal 80 % relative humidity (non condensing , battery not included)

Altitude : <2000m(meter)

Anti explosion type : IP 40

Weight : 442g(approx . )

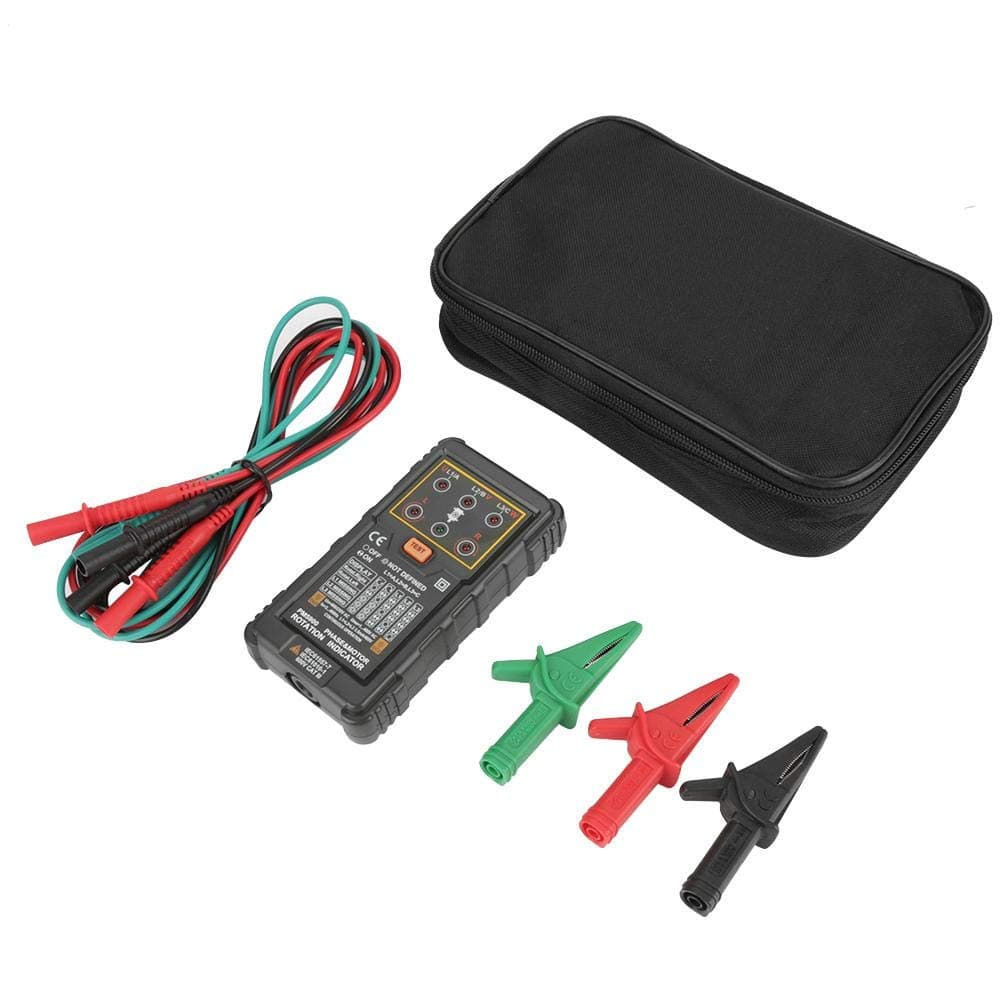

Package Includes :

1 x Tester (batteries are NOT included)
3 x Test Cables

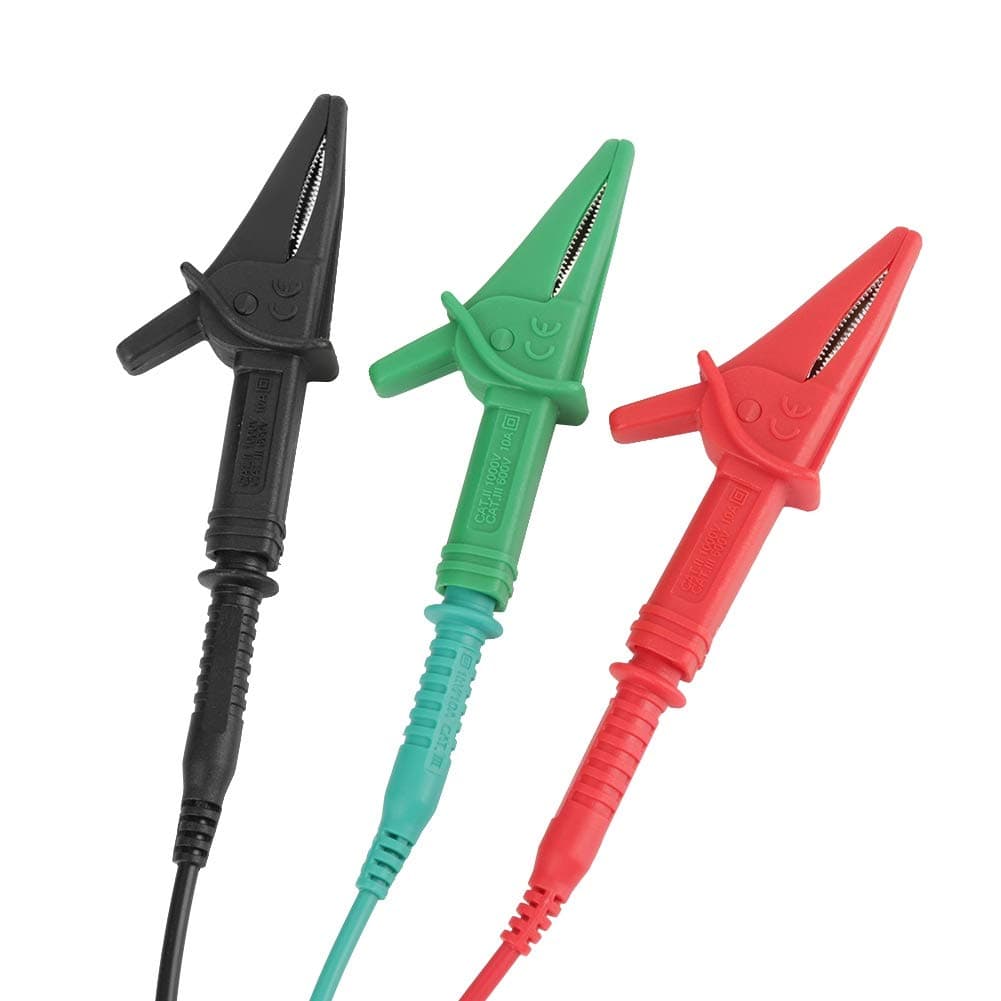

3 x Cable Clips

1 x Bag

Product Description
Features : PM5900 Motor and Phase Rotation Indicator is used to test magnetic field direction of three phase system , phase rotation , motor rotation direction . Without a need to link testing line , the motor rotation direction can be decided by placing this indicator the motor and aligning it with motor drive shaft . It is, and light weight handheld device , which is necessary tool for those who often install , repair or maintain three phase system or motor . Used to test phase sequence input of three phase voltage , to indicate phase line L1 , L2 and L3 . It also supports nontype magnetic field rotation direction test (motor rotation direction test) .


Specifications :

Brand : PEAKMETER
Model : PM5900

Maximal working voltage : 400V AC voltage

Nominal voltage (tested at rotation direction) : 2~400V AC voltage , 2~400Hz

Nominal voltage (tested at phase sequence) : 120~400V AC voltage , 2~400Hz

Test current (per phase) : <3 . 5mA

Battery : 3 x 1 . 5V AA batteries(NOT included)

Temperature :

Operating : 0~40℃ , maximal 80 % relative humidity (non condensing)

Storage : 10~50℃ , maximal 80 % relative humidity (non condensing , battery not included)

Altitude : <2000m(meter)

Anti explosion type : IP 40

Weight : 442g(approx . )


Package Includes :

1 x Tester (batteries are NOT included)
3 x Test Cables

3 x Cable Clips

1 x Bag
