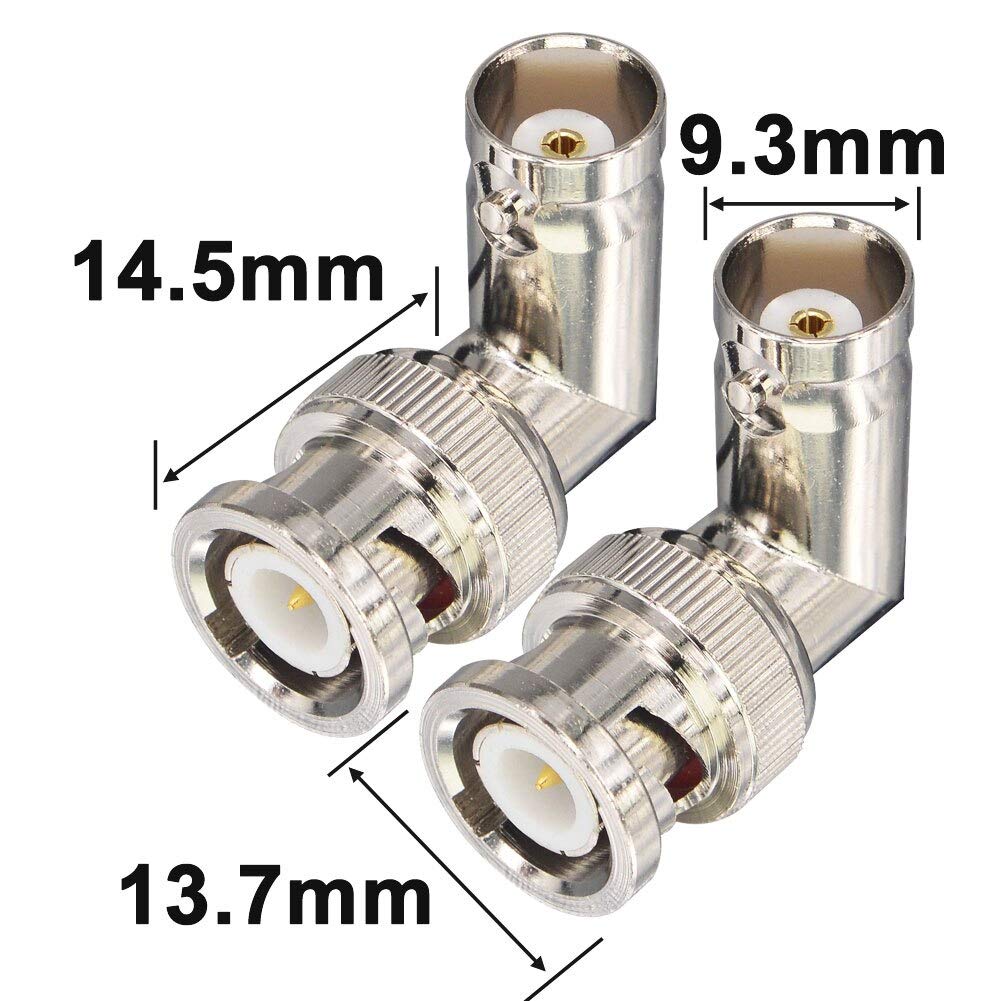

onelinkmore BNC Male to Female Right Angle Adapter 90 Degree 2-Pack — 50 Ohm Elbow Connector for NanoVNA, Oscilloscope, Ham Radio, Scanner, CCTV, SDR, Antenna Cable Space-Saving Installation
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•90° ELBOW SAVES CLEARANCE WHEN CABLES CANNOT EXIT STRAIGHT FROM THE PORT: A straight BNC cable pulling perpendicular to a panel creates mechanical stress on the connector and requires 3-4 inches of clearance behind the device. The 90° elbow redirects the cable parallel to the panel surface — recovering that clearance and eliminating the bending stress on the BNC port. Essential for oscilloscopes mounted in shallow rack positions, scanners in vehicle consoles, and NanoVNA setups on crowded test benches where cables must exit sideways rather than backward.
•2-PACK COVERS DUAL-CHANNEL OSCILLOSCOPES AND DUAL-ANTENNA SETUPS IN ONE PURCHASE: Oscilloscopes typically have 2-4 BNC input channels — all of which may need right-angle adapters simultaneously when the instrument is rack-mounted or pushed against a wall. This 2-pack equips both channels of a dual-channel scope, both antenna ports of a dual-band scanner, or both BNC ports of a NanoVNA in one purchase. No need to order a second pack for the second channel.

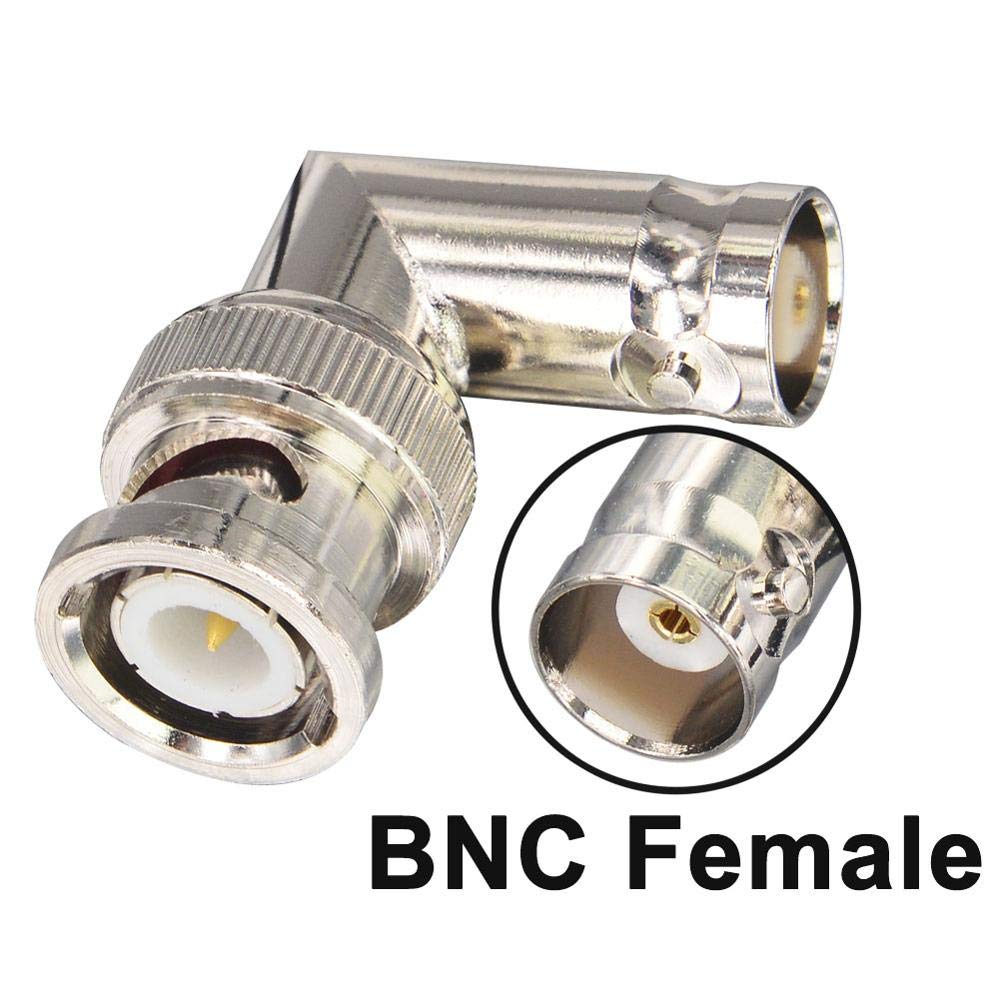

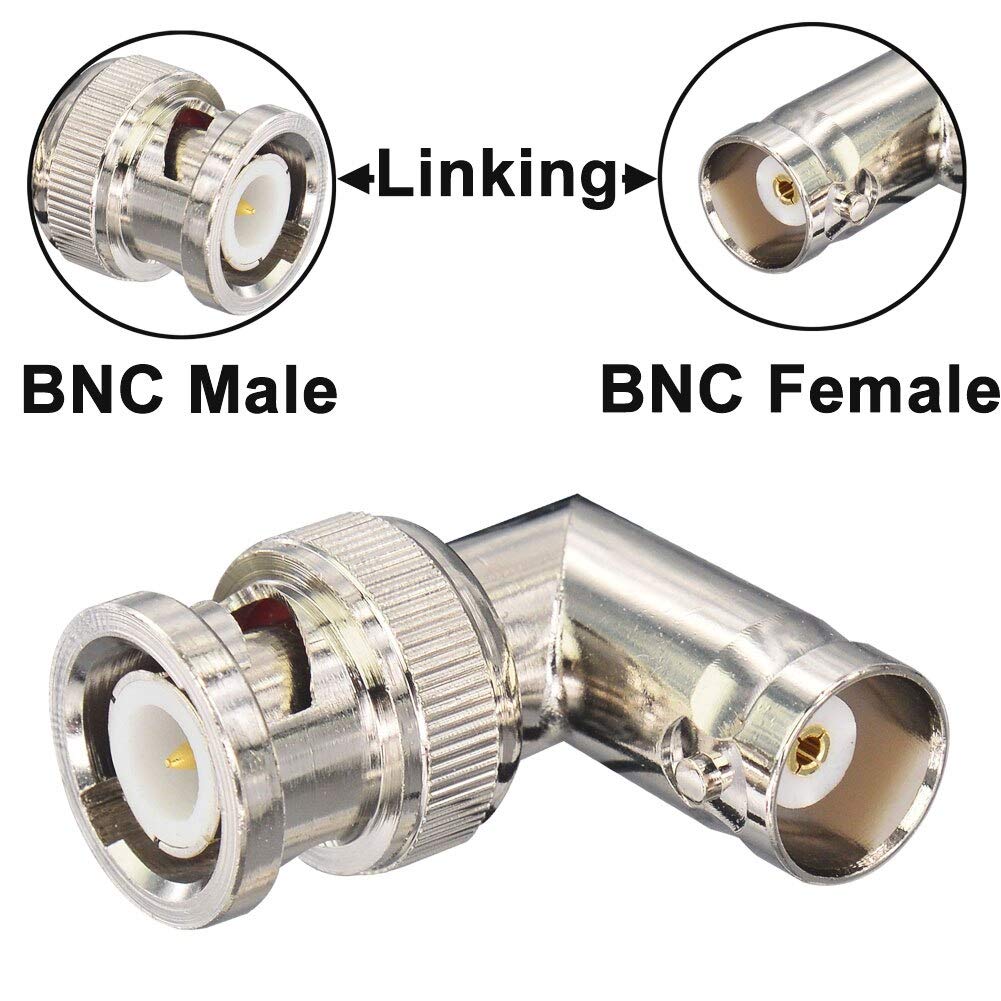

•NO SOLDERING, NO TOOLS — IN-LINE INSTALLATION IN SECONDS: BNC Male plug (center pin, bayonet lock) threads directly onto any BNC Female port with a quarter-turn lock. BNC Female socket (center hole, bayonet coupling) accepts any BNC Male cable or adapter. Install between your existing BNC cable and device port without modifying either — remove and reposition as needed. No crimping, no soldering, no tools required.
•NICKEL-PLATED BRASS, GOLD-PLATED CENTER CONTACTS — 50 OHM, 1,000+ MATING CYCLES: Machined brass body with nickel plating and gold-plated center pin maintains stable 50 Ohm impedance with low insertion loss across HF through UHF frequencies. Gold-plated contacts resist oxidation that degrades conductivity over time, particularly in high-humidity field environments. Rated for 1,000+ mating cycles — handles daily connect/disconnect cycles during antenna testing, scanner use, and bench work without contact wear.
•WIDE COMPATIBILITY — TEST EQUIPMENT, HAM RADIO, SDR, SCANNER, CCTV: BNC Male to BNC Female 90° adapter compatible with: NanoVNA-H4 / NanoVNA-F BNC ports, Rigol/Tektronix/Keysight oscilloscope inputs, RTL-SDR Blog V4 (with BNC adapter), Uniden BCD536HP / SDS100 scanner BNC antenna ports, Baofeng UV-5R (with BNC adapter), Icom/Kenwood/Yaesu BNC-port HTs, ham radio transceivers, CCTV camera BNC video outputs (75 Ohm systems — note impedance mismatch with 50 Ohm equipment). NOT for RP-BNC or F-type connectors.
