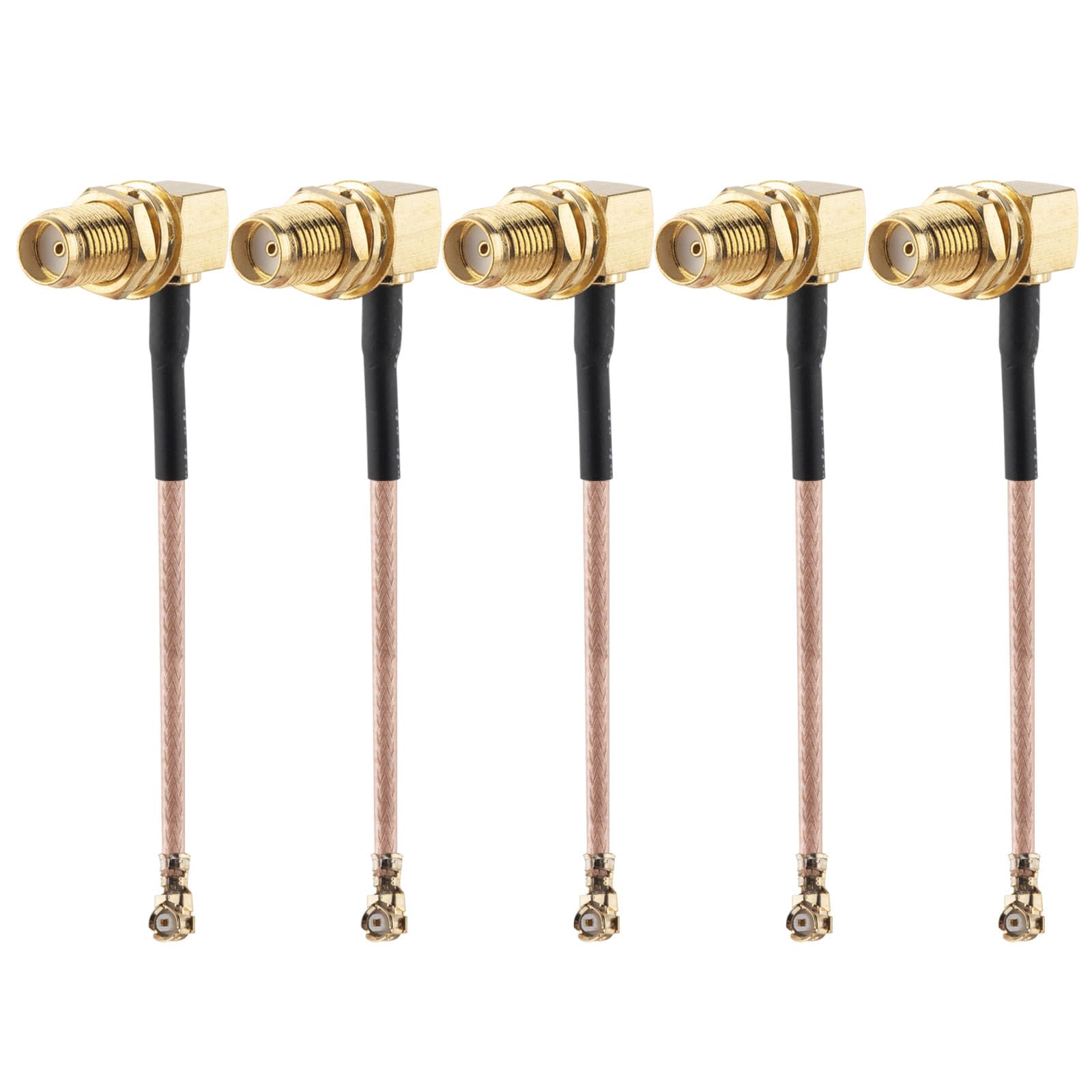

onelinkmore 5cm U.FL to SMA Female Right Angle Pigtail Cable 5-Pack — RG178 IPX MHF1 50 Ohm for Compact Router, Industrial IoT Gateway, Mini PCIe WiFi Card, FPV Drone Tight Enclosure Build
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

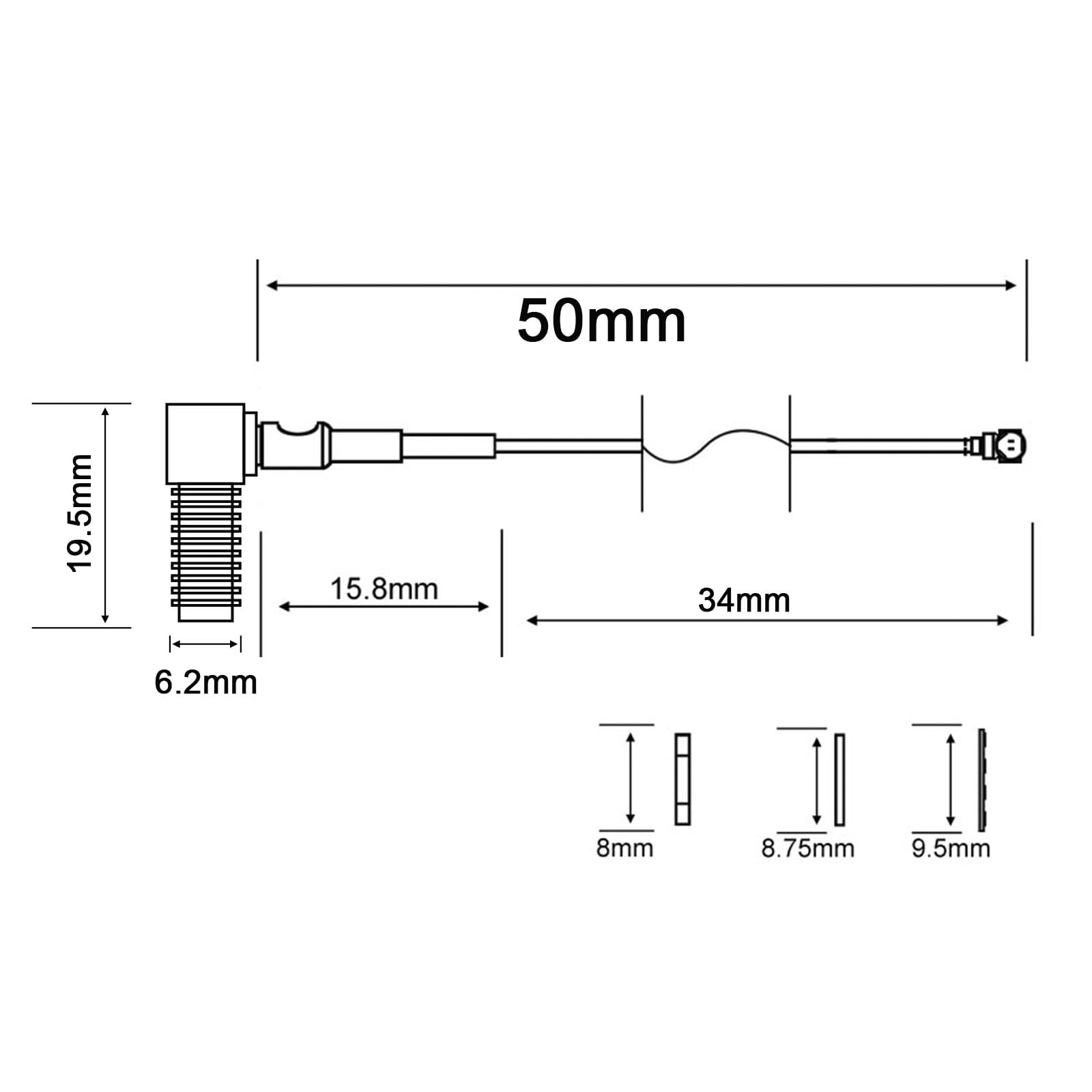

•5CM — THE EXACT LENGTH FOR DIRECT CARD-TO-PANEL MOUNT IN TIGHT ENCLOSURES: 5cm eliminates excess cable slack inside compact embedded routers, industrial IoT gateways, and small form-factor wireless builds where the Mini PCIe card or U.FL module sits directly beside the SMA bulkhead port. Longer cables in tight spaces must fold back on themselves — creating mechanical stress at the fragile U.FL snap joint and increasing EMI pickup from the looped cable. 5cm routes clean with zero slack.
•48-HOUR SALT SPRAY TESTED SMA CONNECTORS — CORROSION PROOF: Every SMA connector has passed a 48-hour continuous salt spray test (ASTM B117), verifying rust-free conductivity in humid and industrial environments. Pure brass body with gold-plated contacts maintains stable 50 Ohm impedance through 1,000+ mating cycles — critical for gateway builds and industrial enclosures where connectors are rarely unplugged and must maintain contact quality long-term.
•90° RIGHT ANGLE U.FL — PROTECTS THE SNAP JOINT, ROUTES PARALLEL TO PCB: The right-angle U.FL end exits horizontally from the board connector, keeping the cable parallel to the PCB surface. A straight cable pulling sideways on a U.FL port applies lateral force that unseats or damages the snap connector over time. The 90° design eliminates that stress — essential for any enclosure where vertical clearance above the U.FL port is less than 10mm.
•RG178 PURE COPPER, DC TO 6GHz — LOW LOSS AT 5CM FOR ALL FREQUENCY BANDS: RG178 pure copper center conductor with silver-plated braid shield. At 5cm, signal loss is negligible across all relevant frequencies: WiFi 2.4GHz/5GHz, Bluetooth 2.4GHz, GPS L1 1.575GHz, LoRa 915MHz, FPV 5.8GHz. Impedance 50 Ohm, VSWR ≤1.5, rated DC to 6GHz. 1.9mm outer diameter routes through 2mm chassis knockout holes without modification.

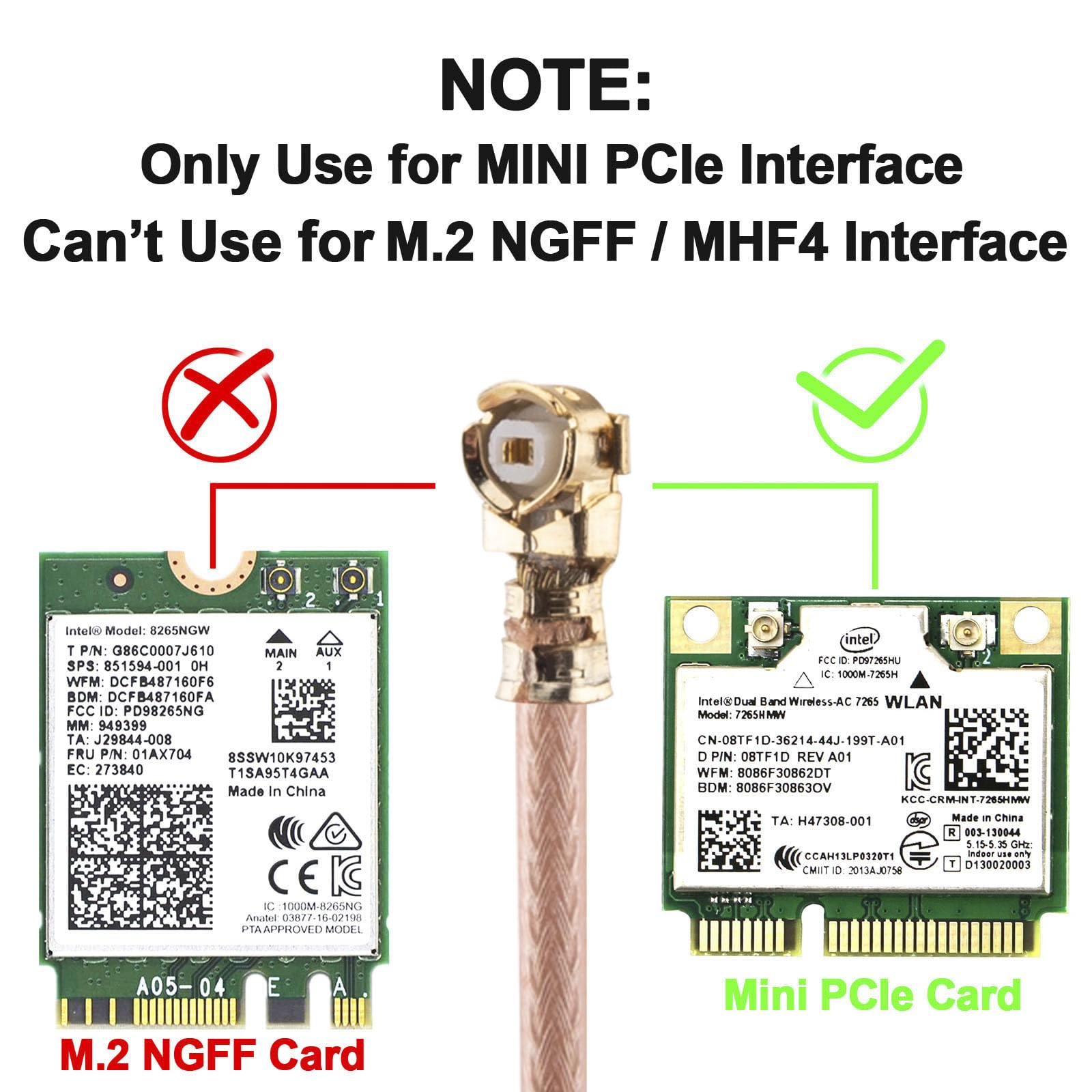

•⚠️ U.FL (IPX/MHF1) NOT MHF4 + COMPATIBLE DEVICES: U.FL snaps onto a 2mm receptacle — standard on Mini PCIe WiFi cards, FPV VTX modules, GPS boards, compact routers, and industrial gateways. NOT compatible with MHF4 (M.2 NGFF cards in modern laptops). Compatible with: Intel/Atheros Mini PCIe cards, u-blox NEO-6M/M8N GPS, ESP32 U.FL variants, Heltec LoRa modules, NRF24L01 external antenna mods, ZigBee coordinators, Sierra Wireless LTE modems. 5-pack included. NOT for RP-SMA or F-type.
