NGFF PCI-E 4.0 x1 Lane PCI Express Host to U.3 U3 Kit SFF-8639 SSD Adapter for Motherboard Compatible with PM1735 NVMe PCIe SSD
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

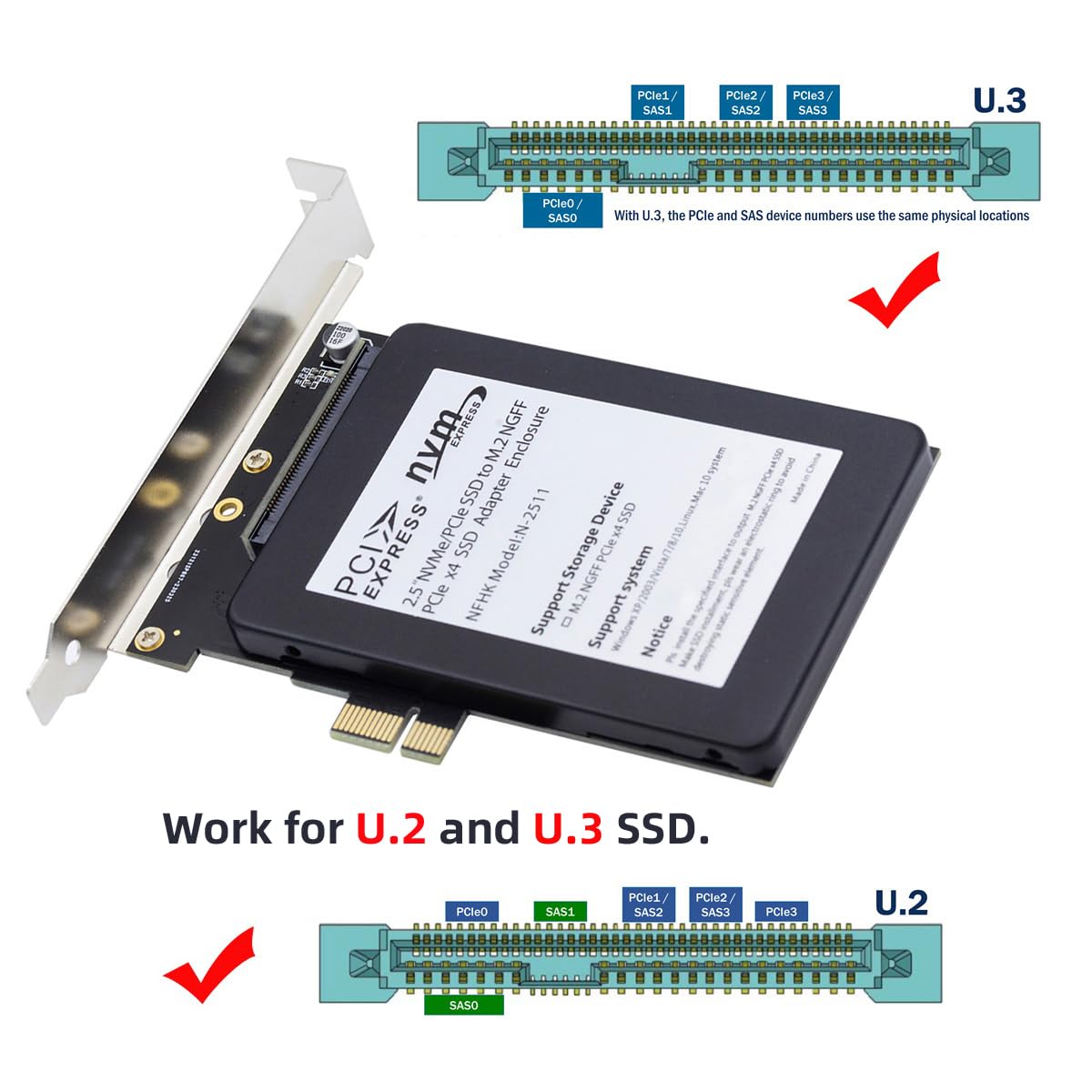

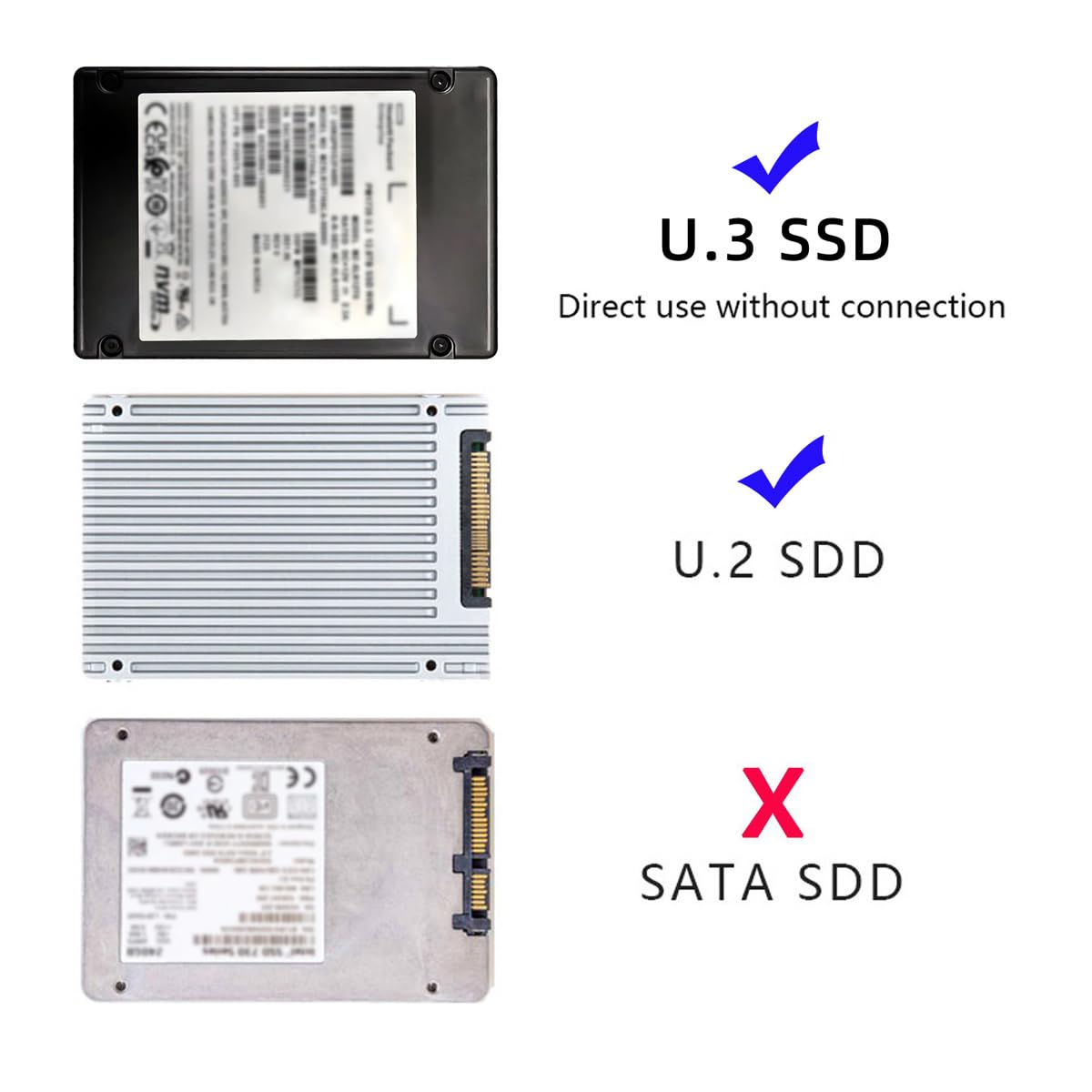

•1) The pci-e 1x card work for U.2 and U.3 SSD,not work for SATA/SAS SSD.The speed and other properties is not changed,only form conversion interface.Transparent to the operating system and does not require any software drivers.

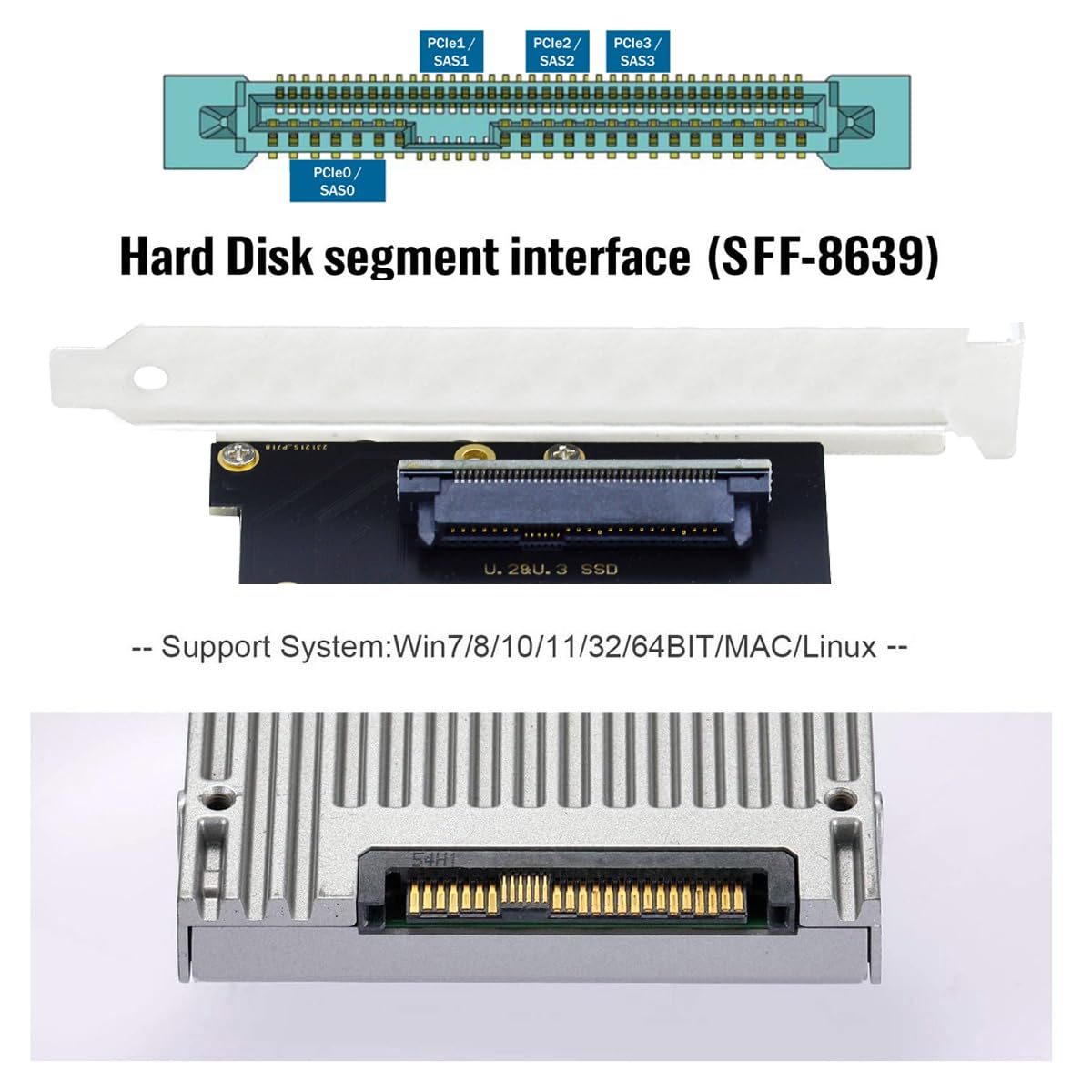

•2) This PCI Express card expands the PC by one U.2/U.3 SFF-8639 interface.It can be connected e.g. the U.2/U.3 U3 PM1735 Series SSD.

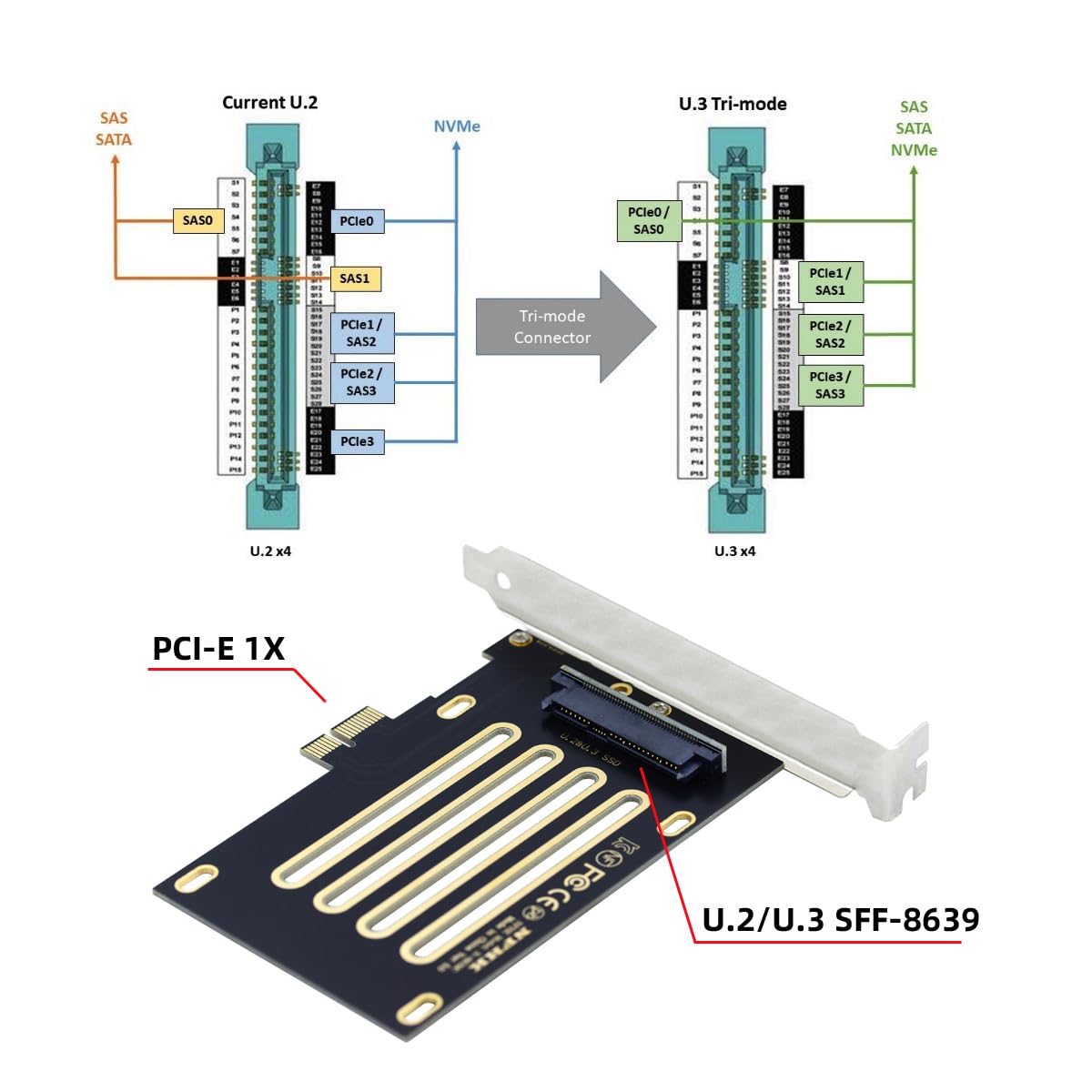

•3) U.3 is a Tri-mode standard, building on the U.2 spec and using the same SFF-8639 connector. It combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U.3 can also support hot-swap between the different drives.
•4) To avoid damage to the device, ensure that the installation direction is correct. Does not support hot-plugging.
•5) U.3 drives are still backward compatible with U.2, though—the U.3 drives determine which host type it is inserted into (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up. U.3 drives can still act as dual-port NVMe drives in supporting systems.U.2 drives are not compatible with U.3 hosts.
