NFHK Adapter SFF-8654 Slimline Female Host to U.2 U.3 SFF-8639 NVME PCIe PCI-Express SSD Adapter for Mainboard
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

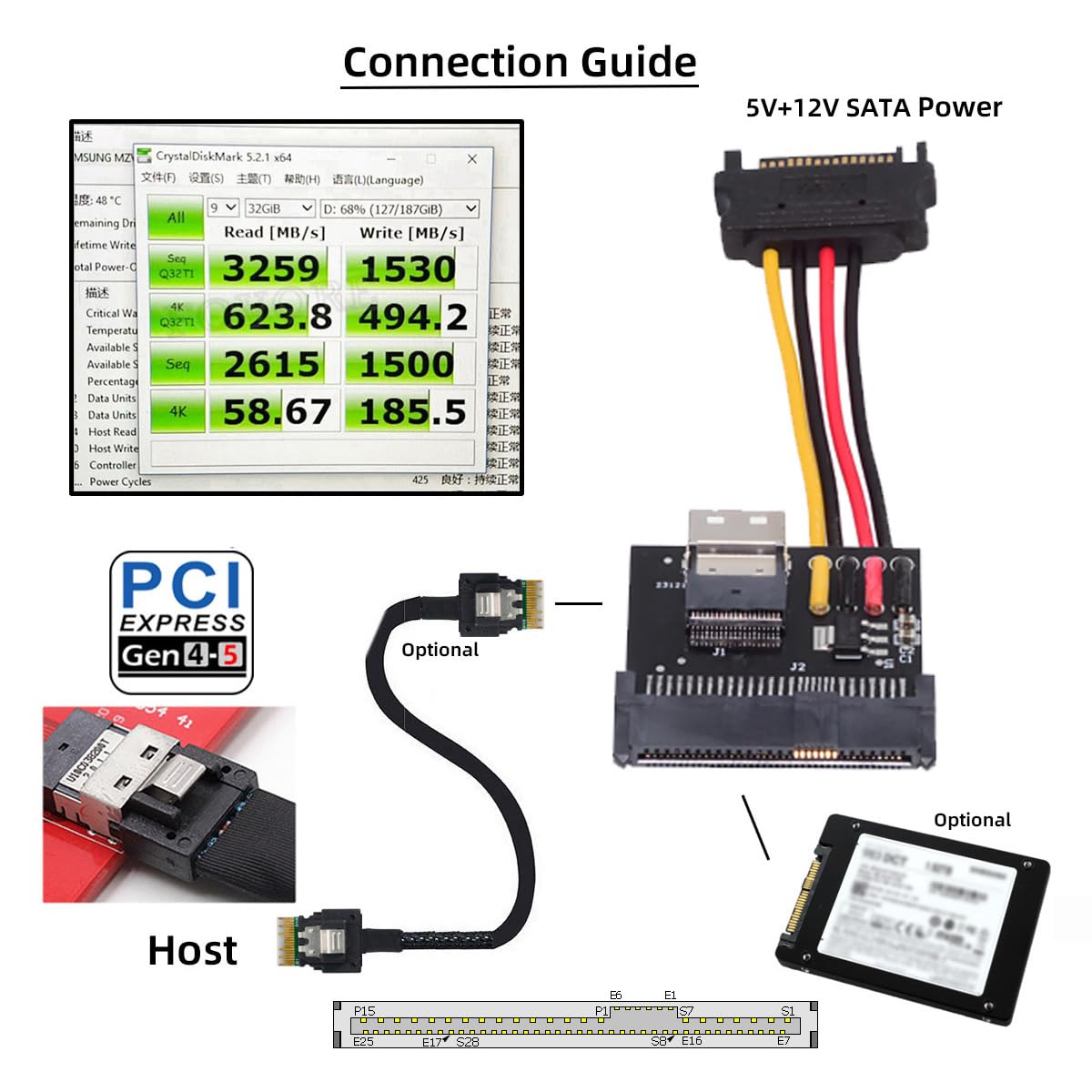

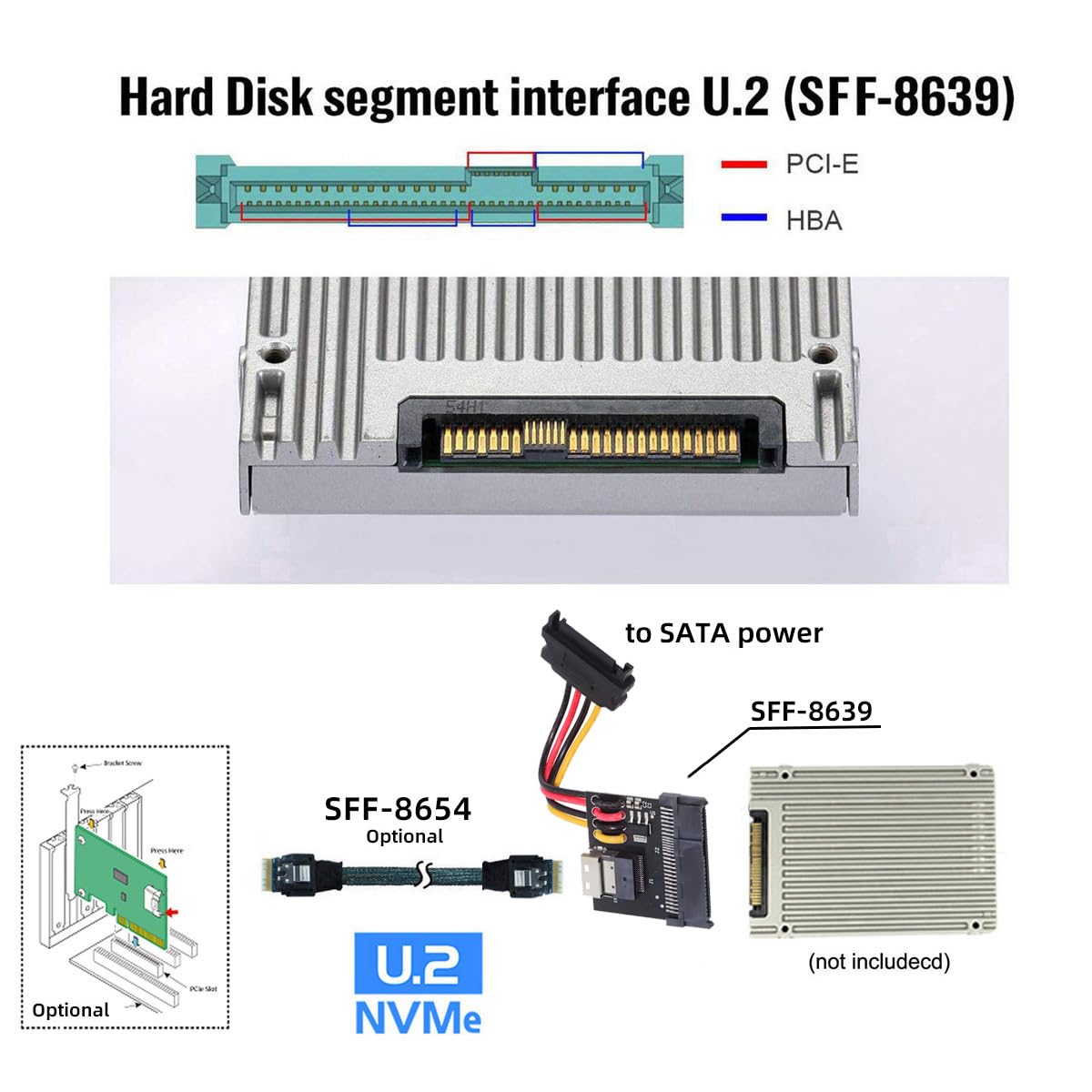

•1) This convertor expands the SFF-8639 U.2/U.3 by one SFF-8654 slimline interface. It can be connected e.g. one SSD by using an optional cable.
•2) The card transmits PCI Express 4.0/5.0 signals using the NVMe protocol.Data transfer rate up to 64Gbps, Supports NVM Express (NVMe) 1.2.
•3) The speed and other properties is not changed,only form conversion interface.Transparent to the operating system and does not require any software drivers.
•4) U.3 drives are still backward compatible with U.2, though—the U.3 drives determine which host type it is inserted into (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up. U.3 drives can still act as dual-port NVMe drives in supporting systems.

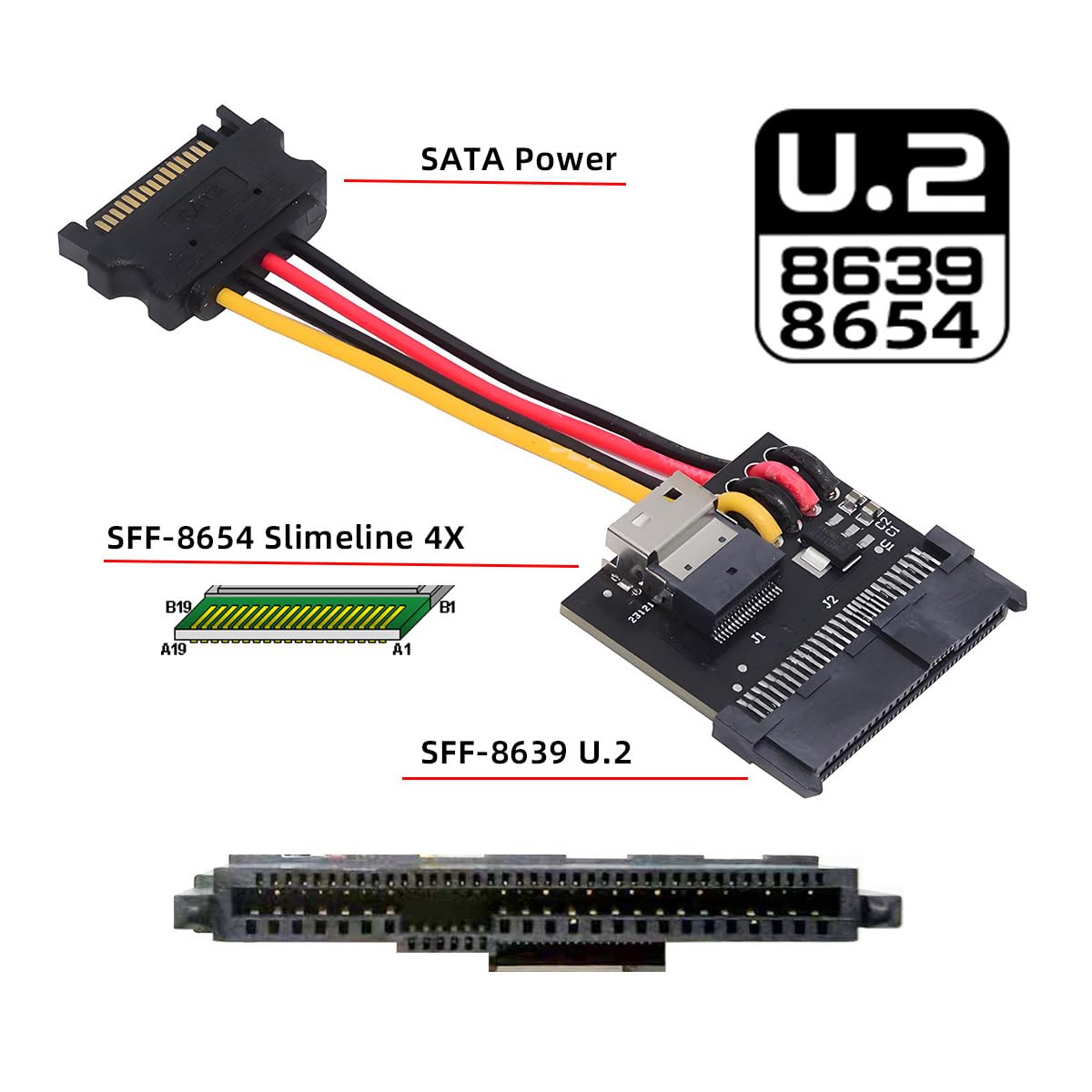

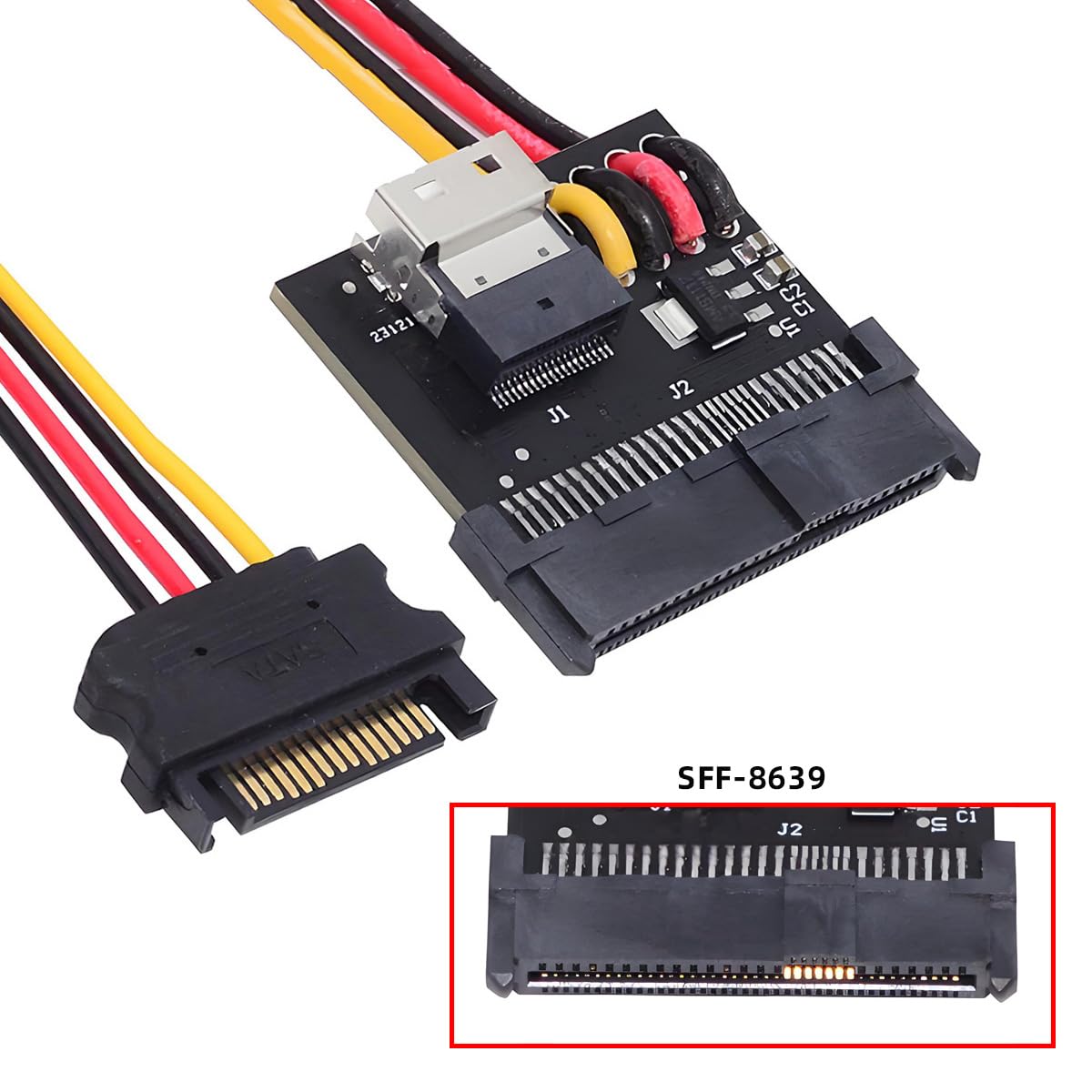

•5) Connectors: 1 x slimline SFF-8654 female and 1 x SFF-8639 U.2/U.3 female and 1 x SATA power.
