NAS Motherboard 8 Bay Core i5 8265U 4C/8T, Mini ITX PC Mainboard White M11, 2 x NVMe PCIe3.0 x2, Dual 2.5GbE i226V LAN, DDR4 16GB RAM 128GB SSD, PCIe x4 Slot, TF, HD+DP
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•8th Gen i5 Low Power CPU: M11 Motherboard equipped with Core i5 8265U ES version Processor, 4 cores 8 threads, base 1.6GHz, up to 3.4GHz, 6MB cache. With a low 15W TDP, it is ideal for power-efficient systems like NAS. Supports virtualization with VT-x and VT-d, with NIC and storage devices supporting passthrough. UEFI and Legacy Mode Supported. Not support sleep mode

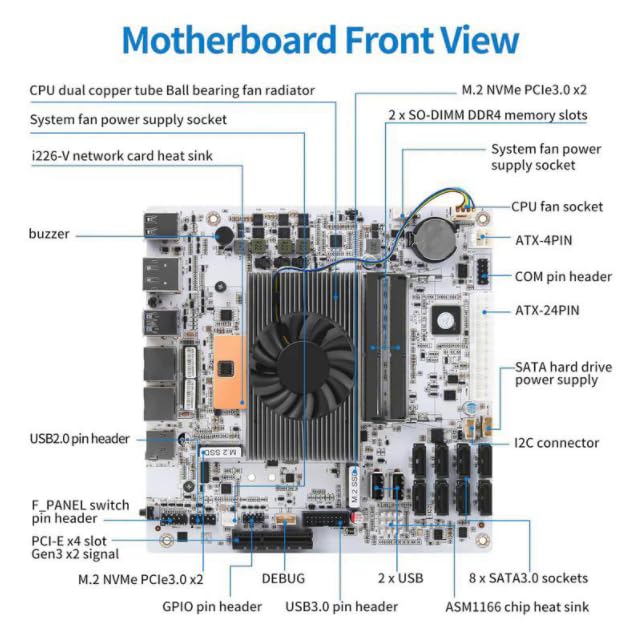

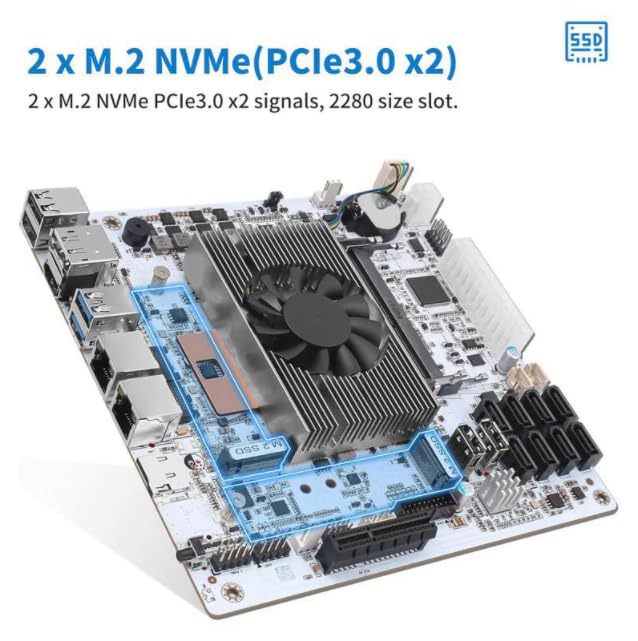

•8-Bay SATA 3.0 + 2 × NVMe: Equipped 8 × SATA 3.0 ports, 2 native ports plus 6 additional ports expanded via ASM1166 (PCIe 3.0 x2 lanes). Includes 2 × M.2 NVMe slots (PCIe3.0 x2), supporting 2280-sized NVMe SSDs. Features dual Channel DDR4 2400MHz SO-DIMM RAM slot (compatible with 2133/2666/3200 MHz), supporting up to 2 x 32GB memory modules
•Dual 2.5GbE RJ45 LAN: Features 2×i226-V 2.5GbE Ethernet controllers, supporting link aggregation, it is compatible with various open-source NAS systems (like TrueNAS or unraid), WinOS, Linux systems or PVE virtualization systems, suited for building VMs and 24/7 continuous operation

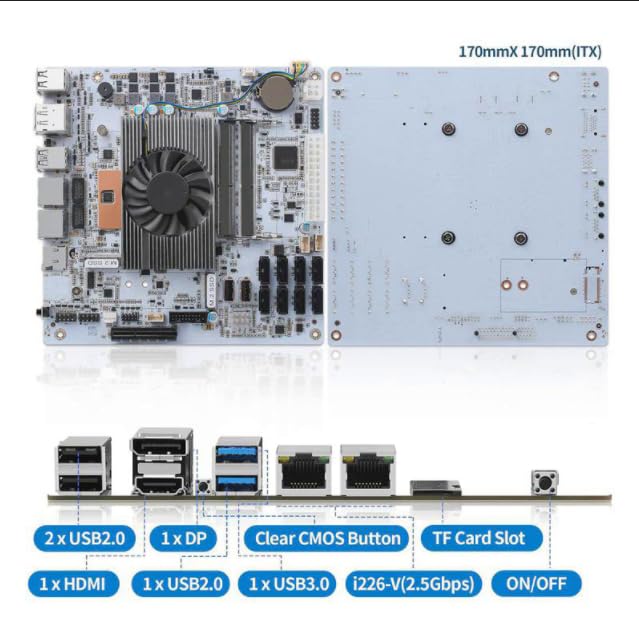

•Various I/O Interfaces: Equipped with HD (4K@24Hz) + DP (4K@60Hz) ports, it supports dual screen display. 1 × USB 3.0, 3 × USB 2.0 for data transfer or peripherals. 2 × built-in USB 2.0 for drive encryption or system boot. 1 × TF slot (MicroSD) for specific boot options. 1 × Clear CMOS button to restore normal boot if BIOS fails
•Other Specifications: This Mini-ITX motherboard (17 × 17 cm) requires 24-pin + 4-pin power input. It features 1 × PCIE x4 slot (PCIe 3.0 x2 signal, side-notched) for network card or SSD card expansion. Includes USB 3.0 and USB 2.0 headers for front I/O connecting. I/O shield Included. PDF manual offered
