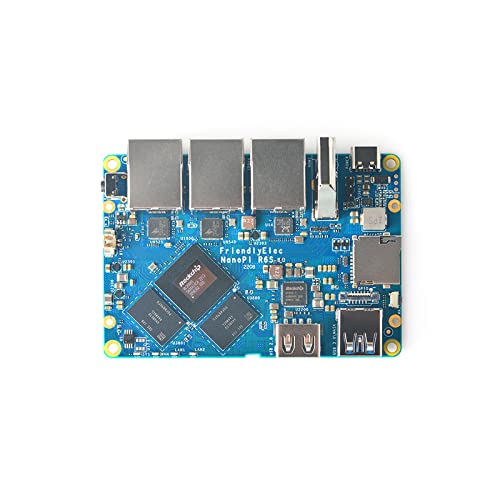

Nanopi R6S Mini Router OpenWRT LPDDR4X Single Board Computer with Three Gbps Ethernet Ports Based in Rockchip RK3588S Soc for IOT NAS Smart Home Gateway Support Debian Ubuntu (8GB RAM +32GB eMMC)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•[WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R6S mini router can support external USB wifi adapter. Simultaneous dual band with wireless speed 300Mbps(2.4G)+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing.
•[Open Source and Programmable] It can support FriendlyWrt, a custom system based on the OpenWrt distribution. It is open source and ideal for developing IoT applications, NAS applications, smart home gateways, and more.

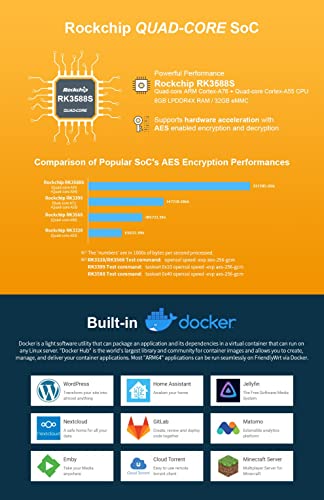

•[High Performance Chip] NanoPi R6S has Rockchip RK3588S Chip, CPU: quad-core ARM Cortex-A76 & quad-core Cortex-A55 CPU; Mali-G610 MP4 GPU compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2; NPU: 6TOPs, supports INT4/INT8/INT16/FP16; 64-bit 8GB LPDDR4X at 2133MHz RAM, 32GB eMMC, at HS400 mode

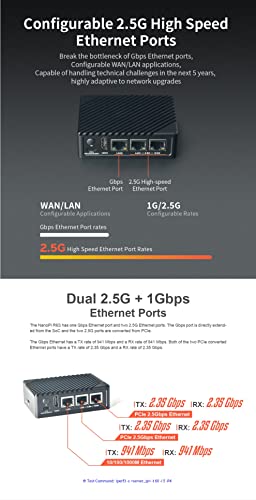

•[DUAL PCIe 2.5G GBPS ETHERNET PORTS] The NanoPi R6S mini router has three 2.5Gbps Ethernet ports: one directly extended from the SoC and the other two converted from a PCIe. Gets around 941Mbits/second download and upload.

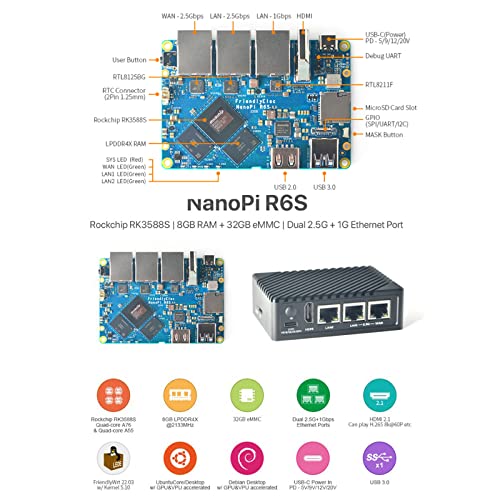

•[LARGER STORAGE & EXTENSIBILITY] MicroSD slot/UHS-I up to SDR104 mode; USB3.0 Host x1: USB Type A; USB 2.0 Host x1: USB Type A; 3pin 2.54mm header; GPIO: 12-pin 0.5mm FPC connector, Debug UART x1, one Native Gigabit Ethernet and Dual PCIe 2.5G Gigabit Ethernet ports (1 WAN and 2 LAN).
•[8K Video Decoders and Encoders] Support 8K@60fps H.265 and VP9 decoder, 8K@30fps H.264 decoder, 4K@60fps AV1 decoder, 8K@30fps H.264 and H.265 encoder.NanoPi R6S Mini Router is very suitable for enterprise customers to customize the development of mini machine vision systems with multiple network ports.
•[USER MANUAL] WiKi:"youyeetoo.com/blog/nanopi-r6s-ysdpnanor6sa-209". Pls feel free to email us to get the Datasheet or any questions of this module after you purchased it. How to email us? Click ''forum.youyeetoo.com/'' and ask a question.
