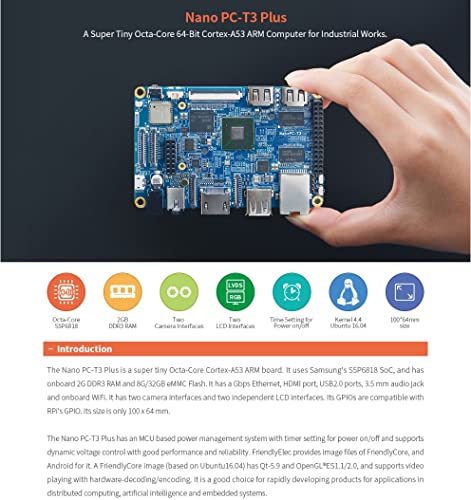

NanoPC-T3 Plus S5P6818 CPU Single Board Computer, 2GB 32bit DDR3 RAM 16GB eMMC ARM Motherboard, Gigabit Ethernet HDMI USB Ports for IoT Programming, Support Android5.1 UbuntuCore QT
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•[S5P6818 CPU] NanoPC-T3 Plus S5P6818 processor adopts eight-core Cortex-A53 architecture, and the main frequency is 400M 1.4GHz. NanoPC-T3 Plus is equipped with 2GB 32bit DDR3 RAM, 16GB eMMC, Integrated temperature sensor.
•[Audio Video Interface] NanoPC-T3 Plus has audio interface, video input/output interface, etc., with two video inputs, supports DVP camera and MIPI-CSI camera, and has four video outputs, HDMI 1.4A interface, LVDS interface, parallel RGB-LCD interface, MIPI-DSI interface. It also supports RTC, onboard backup battery interface, leads to four USB interfaces (three of which are standard A-type interfaces, and the other is a 2.54mm female header), etc.
•[Onboard WiFi/Bluetooth] NanoPC-T3 Plus Single Board Computer Integrated WiFi (802.11 b/g/n) and Bluetooth (4.0 dual mode), with Gigabit Ethernet (RTL8211E) network port and power management function, onboard ceramic antenna, with serial port debugging function.
•[Power Management] An ARM Cortex-M0 single chip microcomputer is used for power management, supporting functions such as dynamic voltage regulation, software shutdown and scheduled startup.
•[OS/Software] NanoPC-T3 Plus Open Source can run Android5.1, Debian, UbuntuCore Qt and other systems smoothly. The kernel driver source code is completely open source, with rich interfaces and perfect system integration. It is the main control board of choice for enterprise users.
•[Wiki]"wiki.friendlyelec.com/wiki/index.php/NanoPC-T3_Plus"; Pls feel free to contact us to get the Datasheet or any questions of this module after you purchased it. How to contact us? Click "WayPonDEV " and ask a question.
