Nano Base Board (C) for Compute Module 4, Same Size as CM4, with Multiple Peripheral Interfaces Onboard 8MP Camera Module with 160°FOV
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

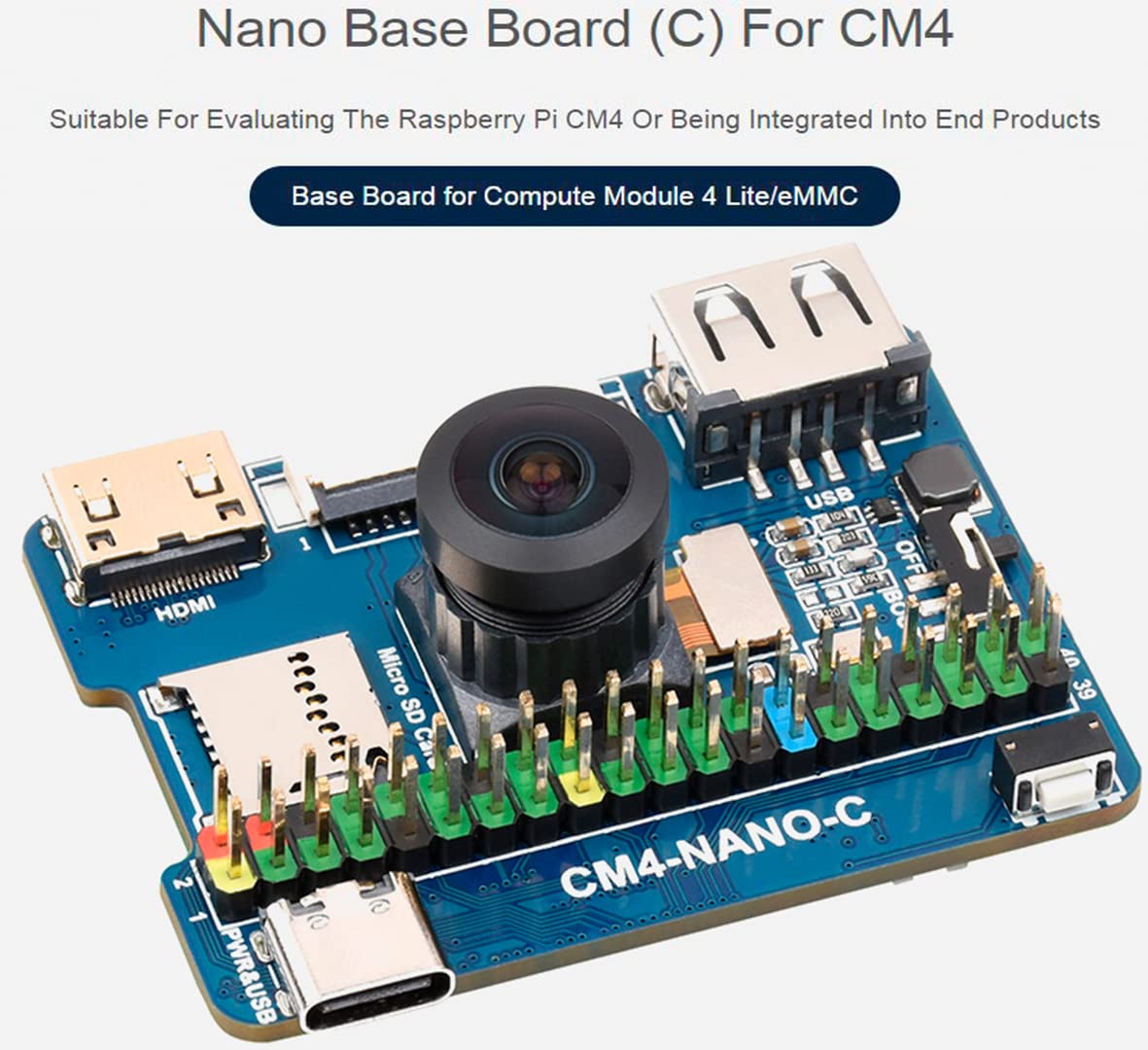

•Nano Base Board (C) for Compute Module 4 Lite/eMMC. Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products.

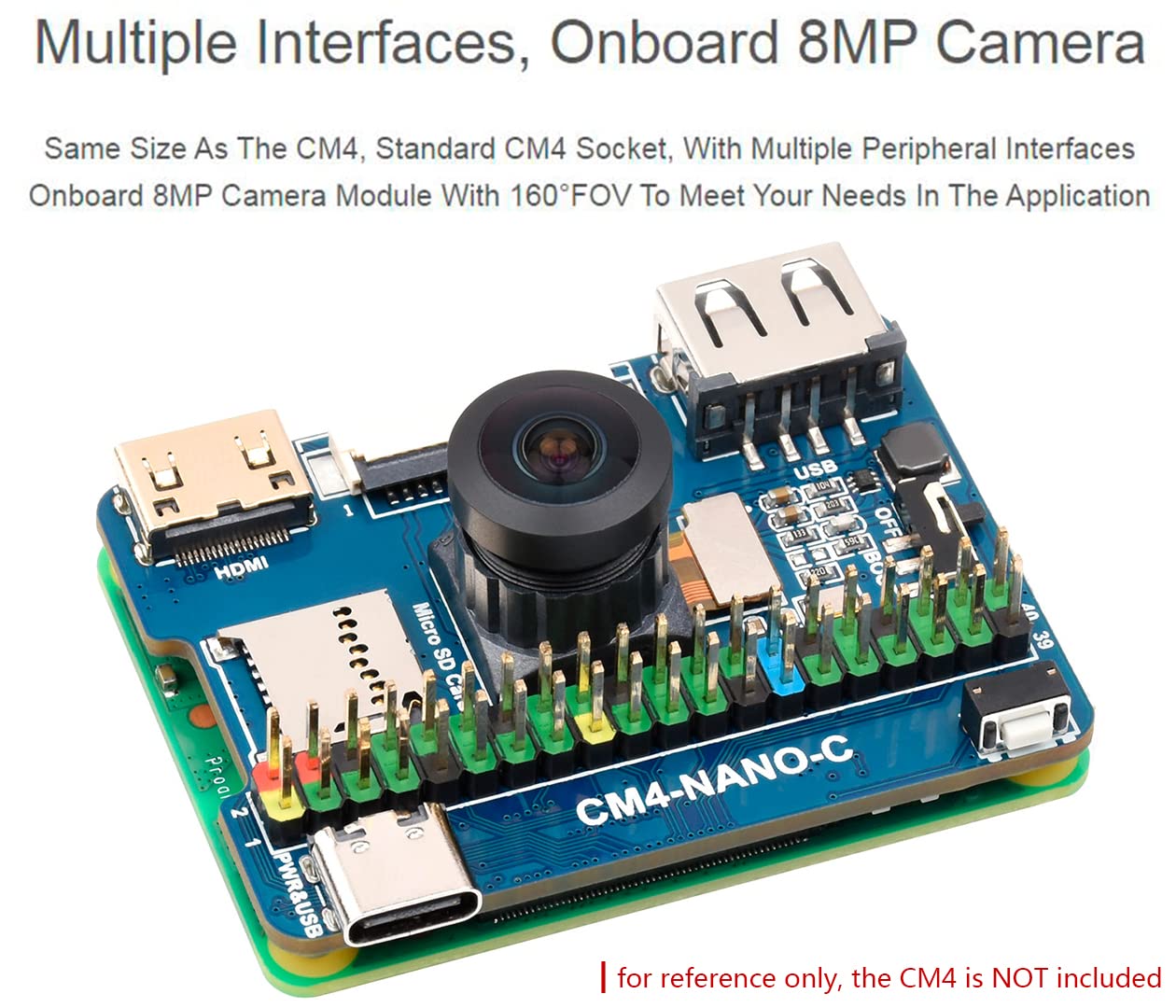

•Multiple Interfaces, Onboard 8MP Camera. Same Size As The CM4, Standard CM4 Socket, With Multiple Peripheral Interfaces. Onboard 8MP Camera Module With 160°FOV to meet your needs in the application.

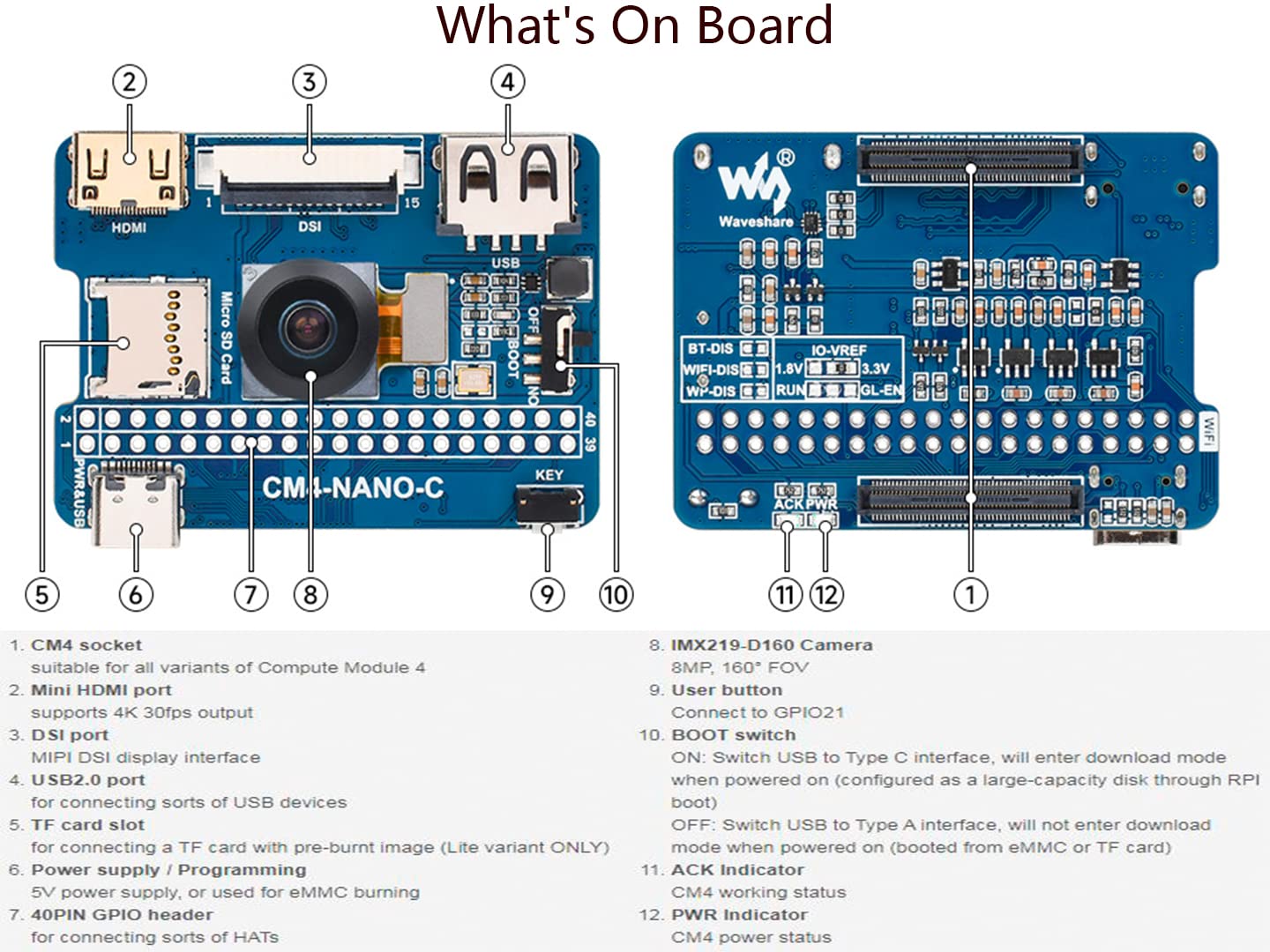

•Connector : Raspberry Pi 40PIN GPIO header × 1. USB : USB 2.0 Type A port × 1. Display: MIPI DSI port × 1 (15pin 1.0mm FPC connector). Camera: IMX219-D160 (8MP, 160°FOV). Video : Mini HDMI port × 1, supports 4K 30fps output.
•Storage: TF card socket for Compute Module 4 Lite (without eMMC) variants. Power input: 5V
