[Nano Base Board (B) For Raspberry Pi Compute Module 4] Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
[Same Size As The CM4]Standard CM4 Socket,Suitable For Narrow Application Environment
new | Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC,Same Size As The CM4,with Raspberry Pi 40PIN GPIO Interface,USB 2.0 Type A,Gigabit Ethernet RJ45 Connector,MIPI DSI Port
Brand : waveshare
new | Nano Base Board (B) for Raspberry Pi Compute Module 4 Lite/eMMC,Same Size As The CM4,with Raspberry Pi 40PIN GPIO Interface,USB 2.0 Type A,Gigabit Ethernet RJ45 Connector,MIPI DSI Port
Brand : waveshare
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
| Condition | new |
|---|---|
| Asin | B09VK1YKDN |
| Category | Electronics |
| Subcategory | Single Board Computers |
| Leafcategory | SINGLE_BOARD_COMPUTER |
| MPN | Nano Base Board (B) |
| Origin | USA |
| Brandname | waveshare |
| Weight | 1 |
Product Details

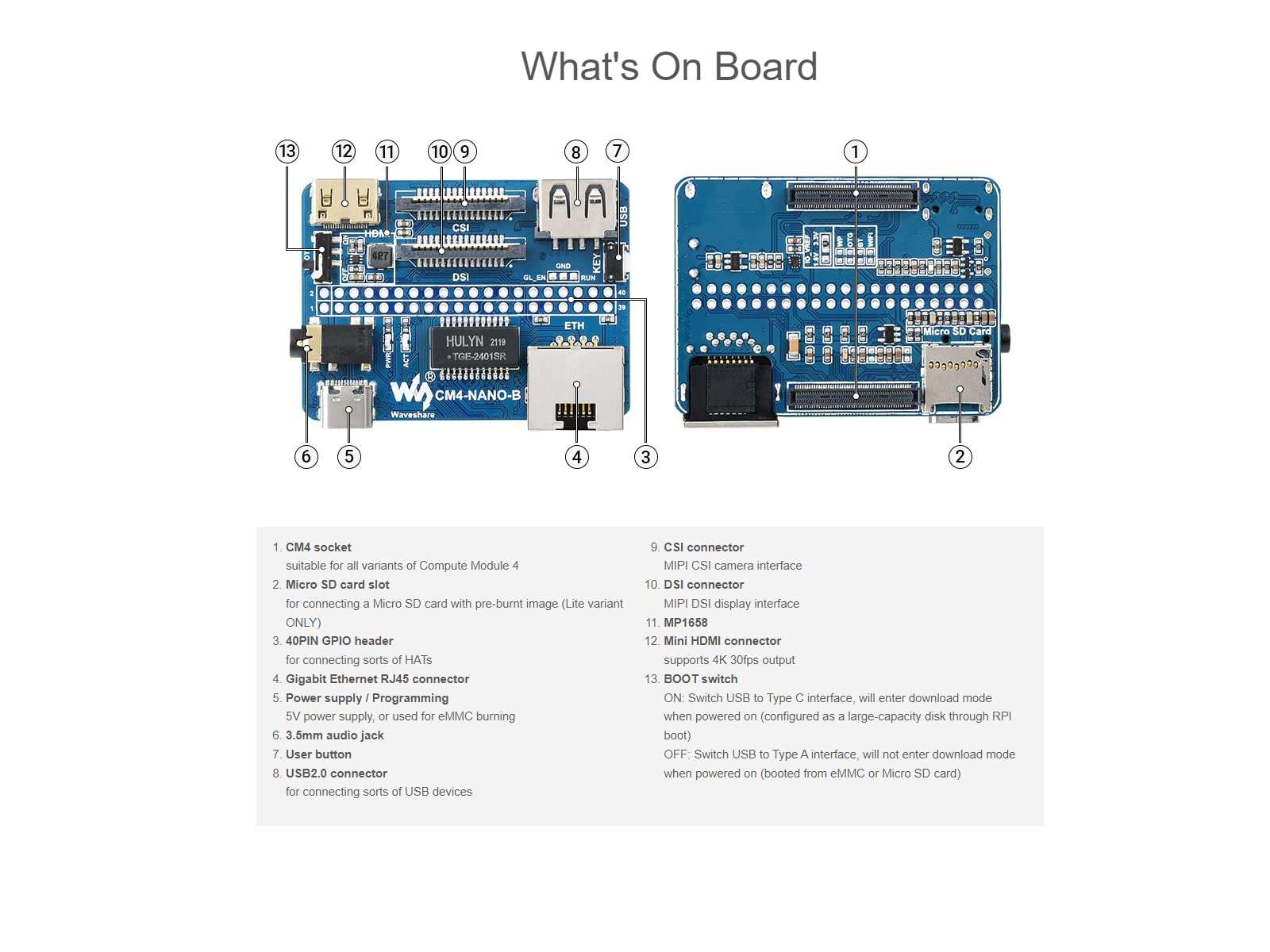

[Multiple Peripheral Interfaces]Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack…
[STORAGE]Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
[Note]The CM4 is NOT included. Please buy it separately if necessary.
Product Description
Nano Base Board (B) For Raspberry Pi Compute Module 4, Same Size As The CM4

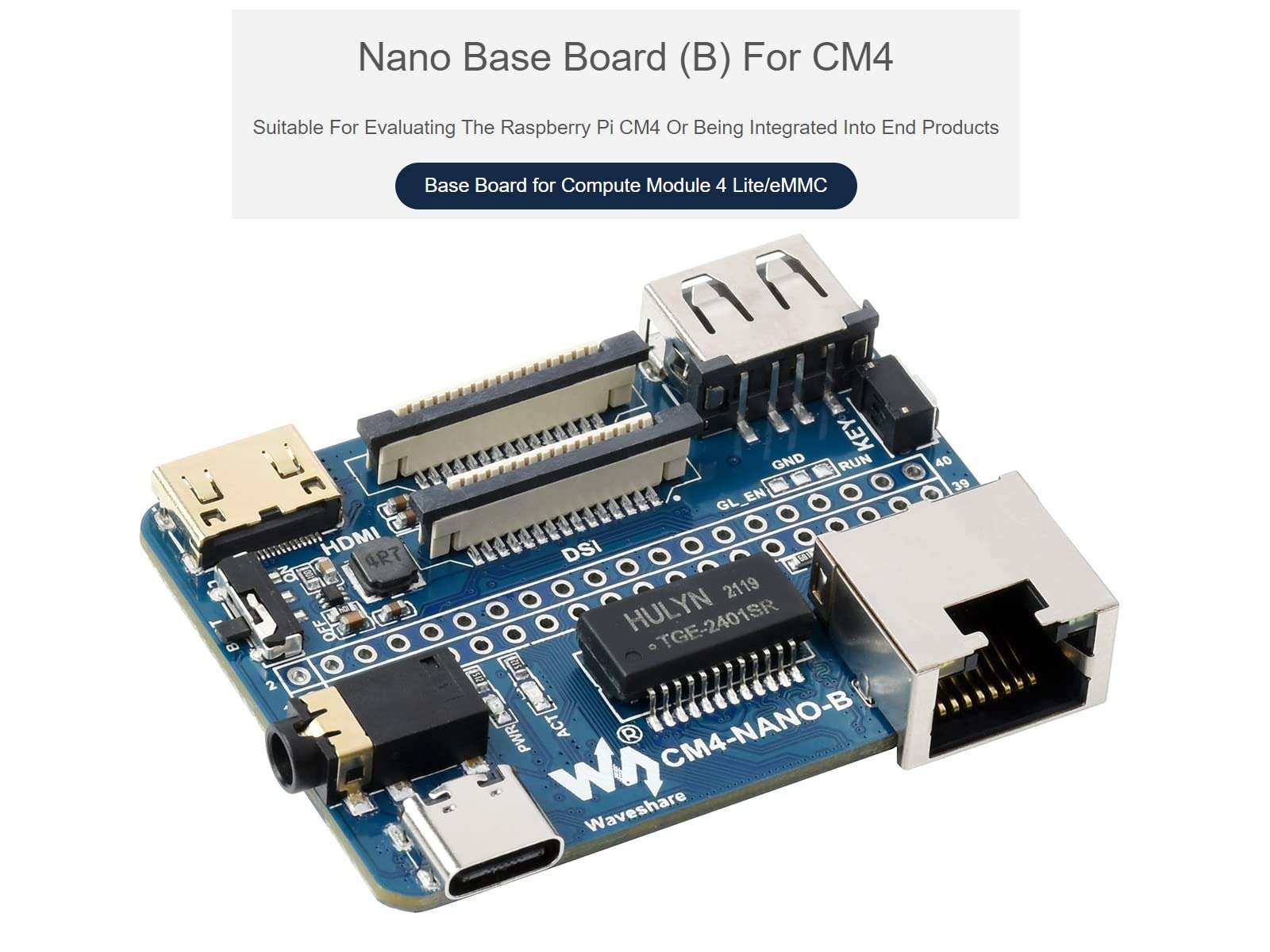

1.Nano Base Board (B) For CM4
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
Base Board for Compute Module 4 Lite/eMMC

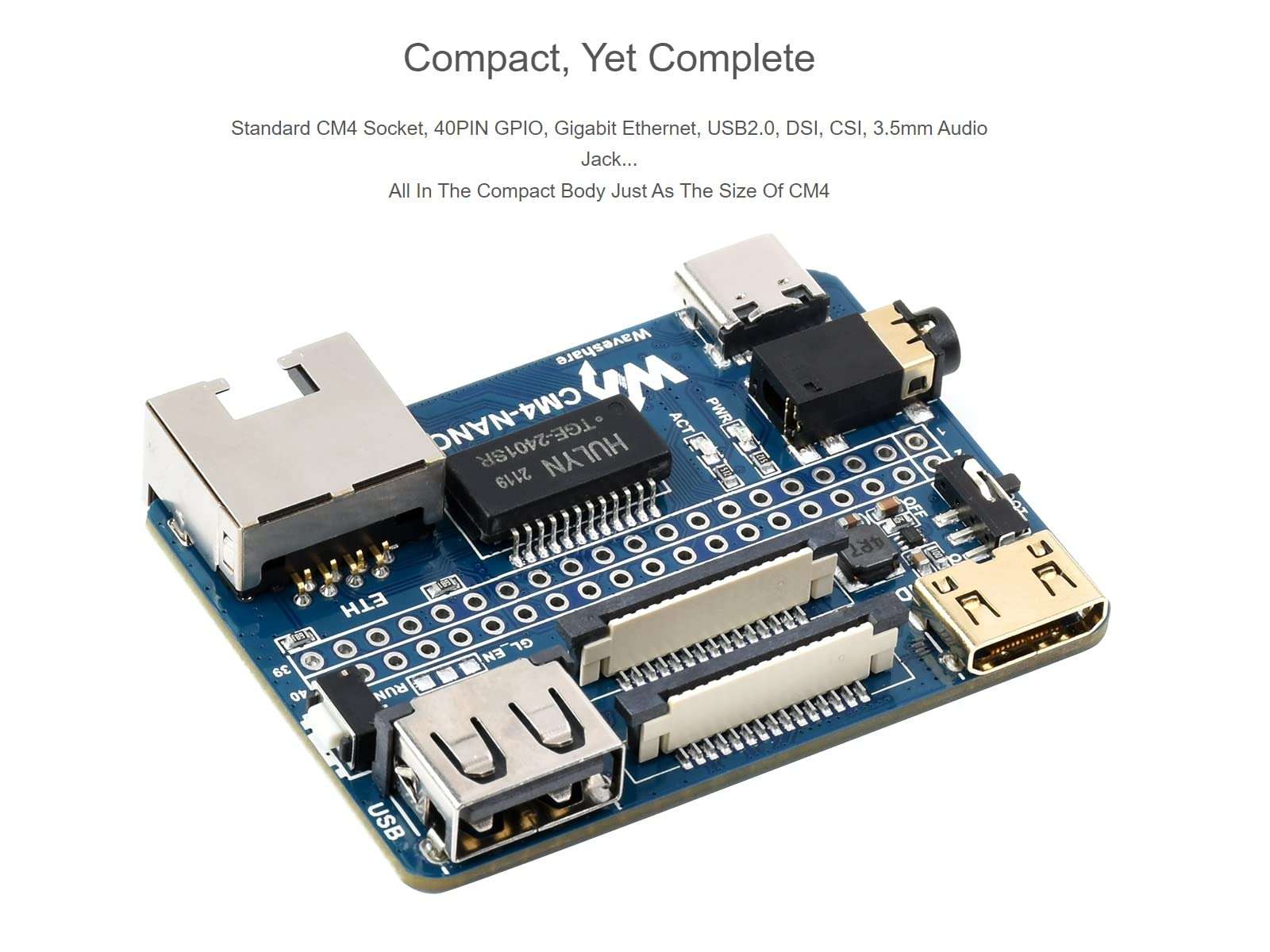

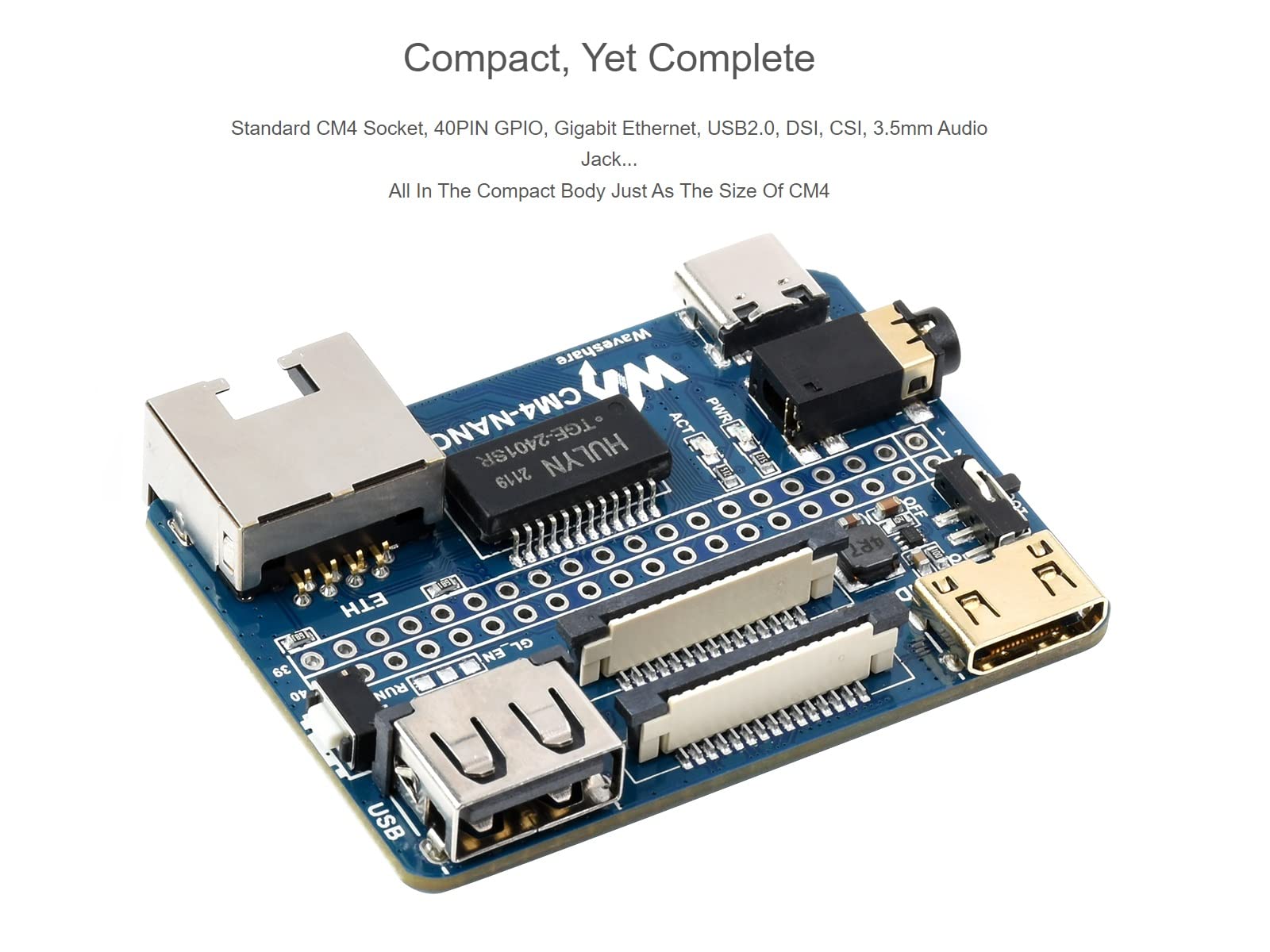

2.Compact, Yet Complete
Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm Audio Jack...
All In The Compact Body Just As The Size Of CM4
Specifications
CM4 SOCKET---suitable for all variants of Compute Module 4
NETWORKING---Gigabit Ethernet RJ45 connector
CONNECTOR---Raspberry Pi 40PIN GPIO header × 1
USB---USB 2.0 Type A connector × 1
DISPLAY---MIPI DSI port × 1 (15pin 1.0mm FPC connector)
CAMERA---MIPI CSI-2 port × 1 (15pin 1.0mm FPC connector)
VIDEO---Mini HDMI port × 1, supports 4K 30fps output
AUDIO---3.5mm jack
STORAGE---Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
POWER INPUT---5V

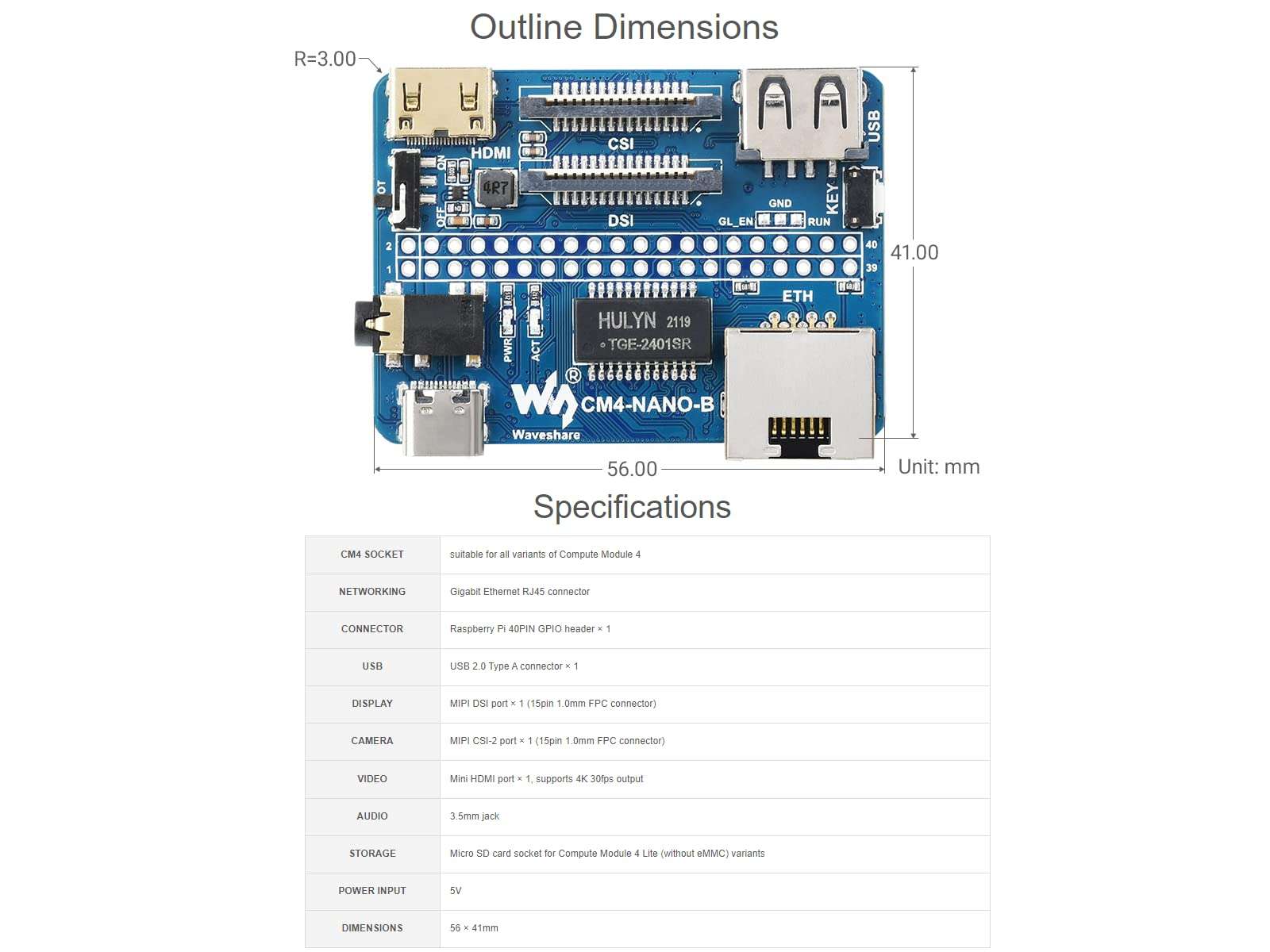

DIMENSIONS---56 × 41mm

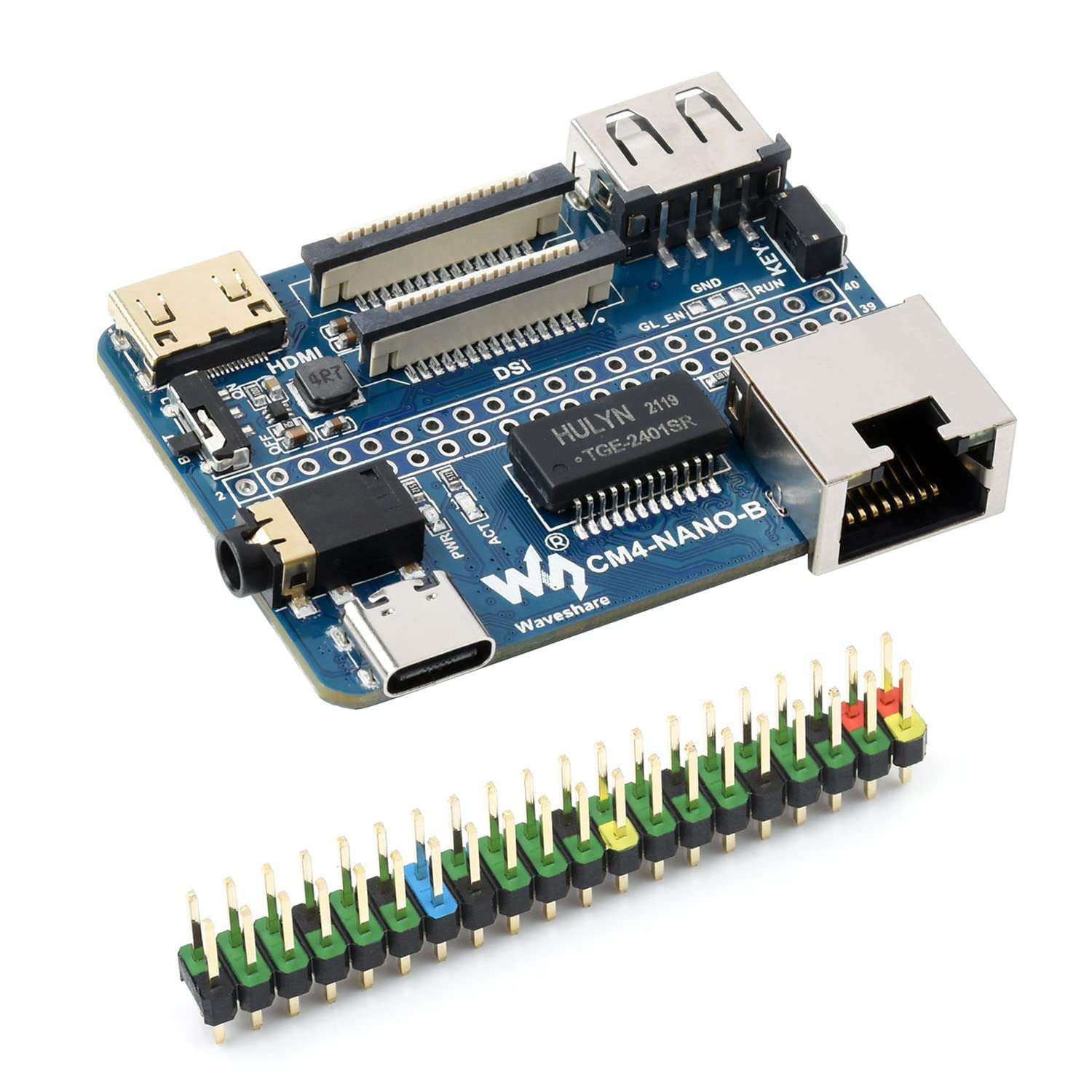

Package Content CM4-NANO-B x1
2*20PIN color-coded straight pinheader x1
Note
1.Development Resources is provided , please contact us if you have any problem .
2.the Compute Module 4 in the photo is NOT included.
