Nano Base Board (B) for Compute Module 4 Lite/eMMC,with Raspberry Pi 40PIN GPIO Header,Gigabit Ethernet RJ45,MIPI CSI-2 Port Connector 3.5mm Jack Audio
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

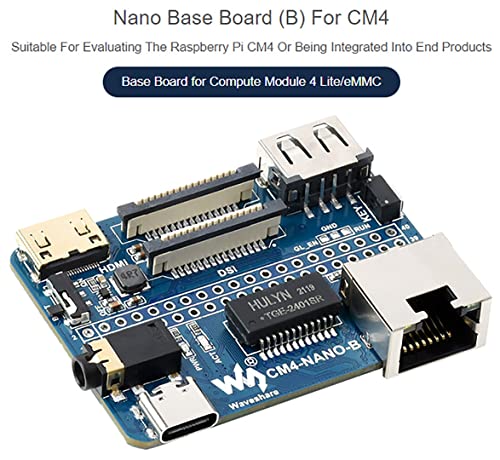

•CM4-NANO-B (Raspberry Pi CM4 Ultra Mini Expansion Board Type B) is a baseboard that can be used with Raspberry Pi Compute Module 4 Lite/eMMC. Although it is tiny, it can bring out the interface of Raspberry Pi Compute Module 4.

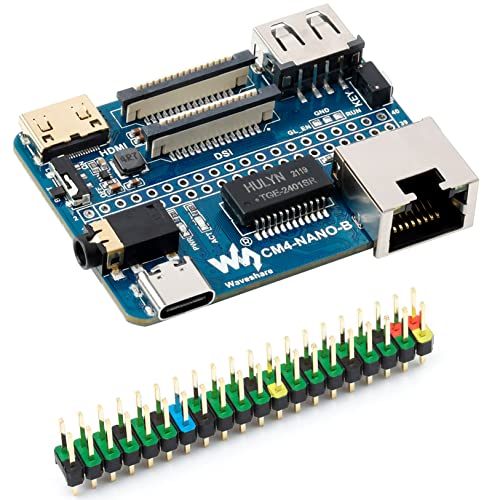

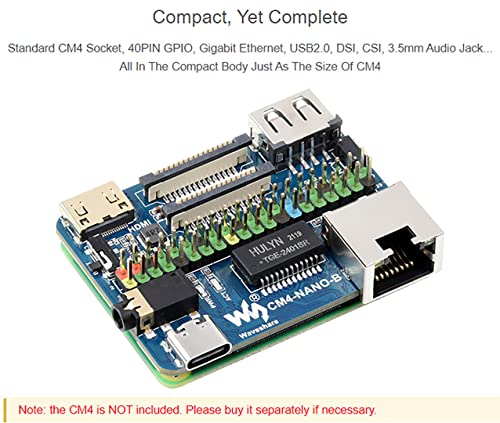

•Standard CM4 Socket, 40PIN GPIO, Gigabit Ethernet, USB2.0, DSI, CSI, 3.5mm audio jack,ect.All in the compact body just as the size of CM4

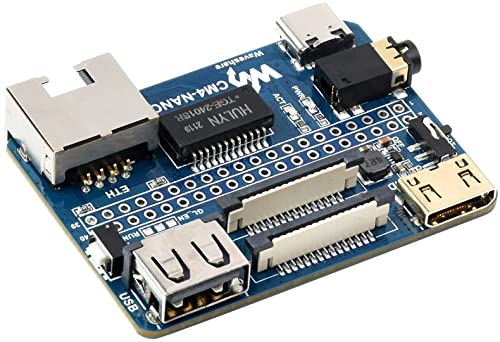

•Networking:Gigabit Ethernet RJ45 connector. Connector:Raspberry Pi 40PIN GPIO header x 1. USB:USB 2.0 Type A connector x 1. Display:MIPI DSI port x 1 (15pin 1.0mm FPC connector). Camera:MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector). Video:Mini HDMI port x 1, supports 4K 30fps output.

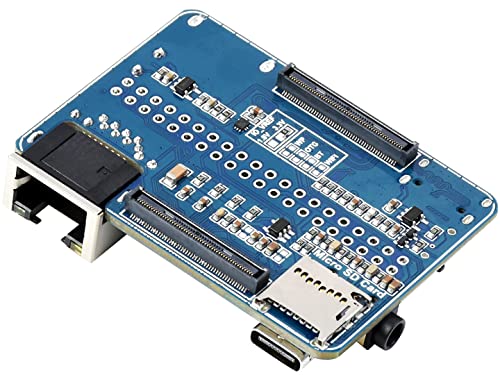

•Audio:3.5mm jack. Storage:Micro SD card socket for Compute Module 4 Lite (without eMMC) variants. Power input:5V. Dimensions : 56x 41mm.
•Note: DO NOT hot-plug any devices except the USB and HDMI. The USB2.0, CSI, DSI and Audio interfaces are disabled by default and need to be enabled by the user.
