Mudder 20 Pieces Charging Module Battery Charging Board with Battery Protection BMS 5V Micro USB 1A 186 50 Power Module
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•What you receive: there are 20 pieces charging modules in our package, practical tools for you, which can also meet your various needs, enough for you to change and replace
•Details: the usb charging module with micro USB female, can be directly inputed to do with phone charger rechargeable battery, still retains the input voltage wiring pads, convenient for you to DIY; Charging cut-off voltage: 4.2V, max charge current: 1000 mA

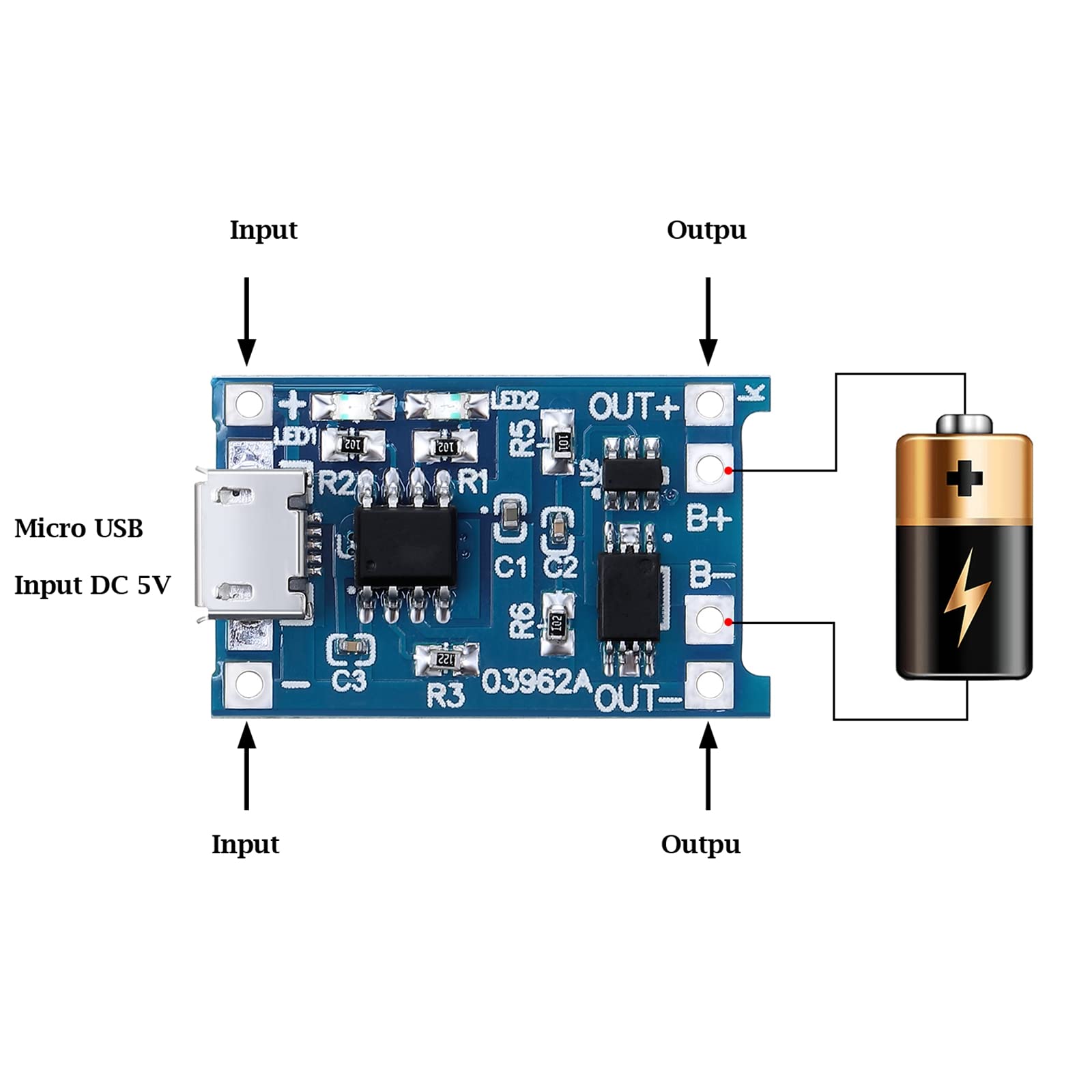

•Function introduction: input voltage is 5V, battery over-discharge protection voltage is 2.5V, battery over current protection current is 3A; Connect the battery to the B+ B-, inserted into the USB female mobile phone charger, the red light is being charged and the green light to full

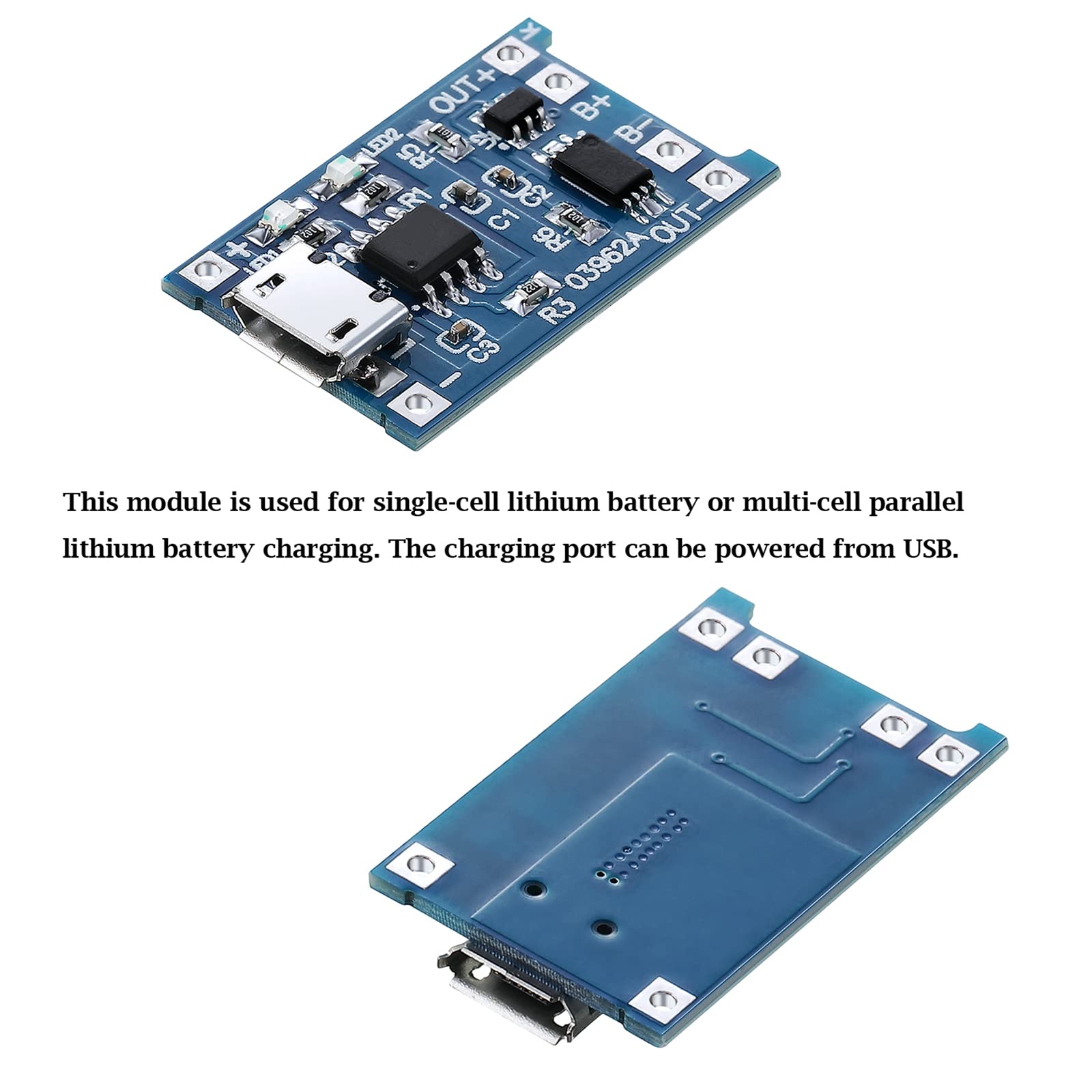

•Suitable occasion: the battery charging board is applied for single-cell lithium battery or multi-cell parallel lithium battery charging, and the charging port can be powered from USB, which are convenient for you to operate
•Notice: please note that the charge should disconnect the load OUT terminal on the positive and negative can not be wrong, please according to specifications, otherwise it will break directly; The ammeter for testing current can only be connected in series with the 5V input terminal of the charging board
