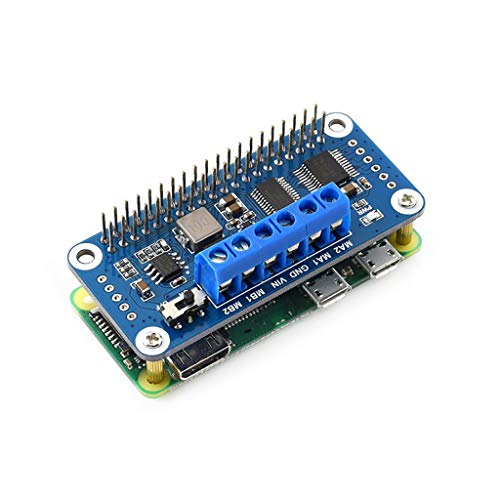

Motor Driver HAT for Raspberry Pi Onboard PCA9685 TB6612FNG Drive Two DC Motors I2C Interface 5V 3A Can be Stackable up to 32 This Modules
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

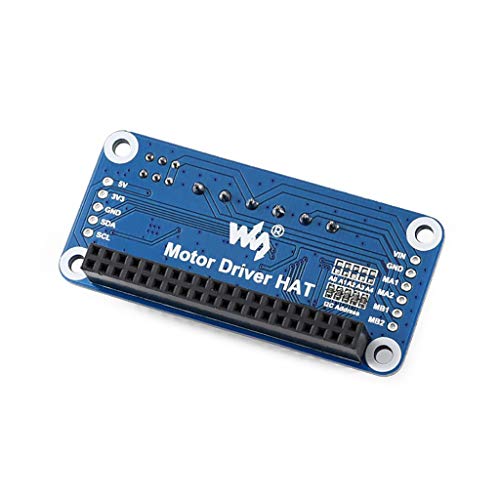

•I2C controlled, by setting 5 address jumpers, it is stackable up to 32 this modules; Reserved I2C control pins, allows to work with other control boards
•Onboard PCA9685 chip, provides 12-bit hardware PWM to adjust motor speed; Onboard TB6612FNG dual H-bridge motor driver, high efficiency, low heating
•Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
•Comes with development resources and manual (examples in BCM2835, wiringPi, and python) : www.waveshare.com/wiki/Motor_Driver_HAT
