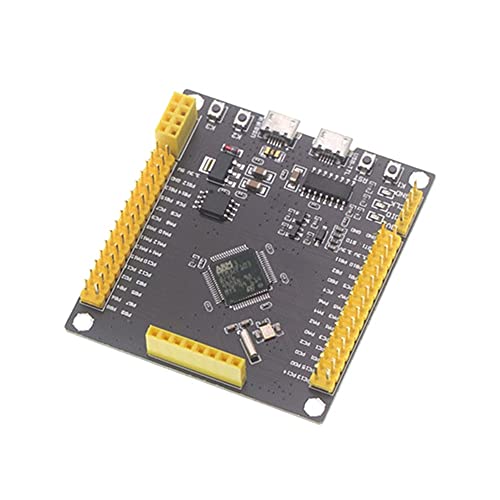

MiOYOOW STM32F103RCT6 Development Board Two USB Ports with 3 LED Lights and 1 Power Indicator
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

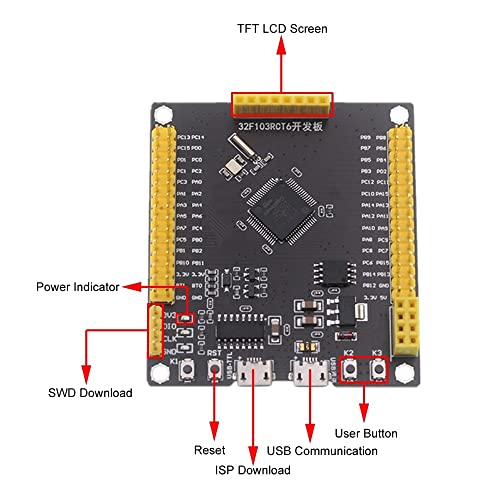

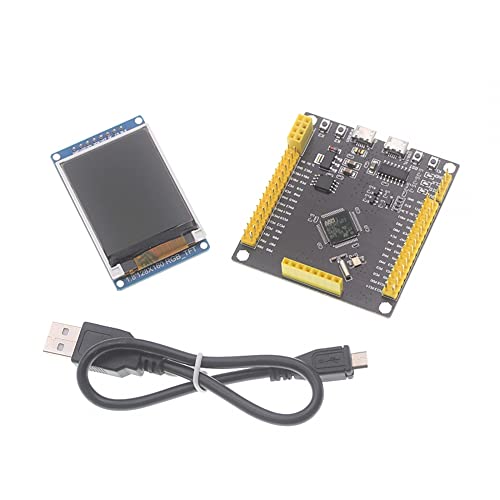

•STM32 development board with SWD download interface and TFT LCD interface (compatible with 1.44 inch and 1.8 inch). It has BOOT0, BOOT1 mode selection interface.
•It has 3 LED lights and 1 power indicator, which can display the working status of the development board; it has 3 user buttons and 1 reset button to operate the STM32 development board through the buttons.
•The STM32F103RCT6 microcontroller has a 32.768 crystal oscillator, which can be used by the built-in RTC or used for calibration. The development board uses the LM1117-3.3V voltage regulator chip, which provides a maximum current of 700mA.

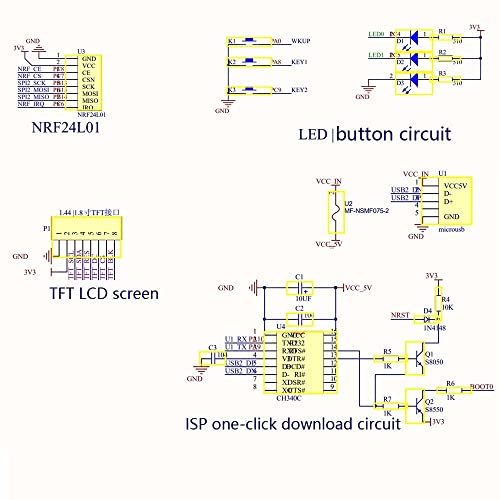

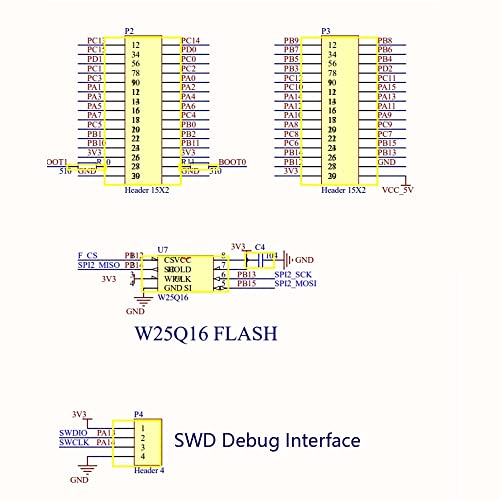

•The STM32 development board has a 2.4G module expansion interface, suitable for GT-24 or NRF24L01. The microcontroller is equipped with a SPI FLASH chip, W25Q16, with a capacity of 2M bytes.
