Mini Base Board for Raspberry Pi Compute Module 4, with Standard CM4 Socket and Raspberry Pi 40 PIN GPIO Header, Onboard Multiple Connectors, Suitable for Compute Module 4 Lite/EMMC Series Module
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

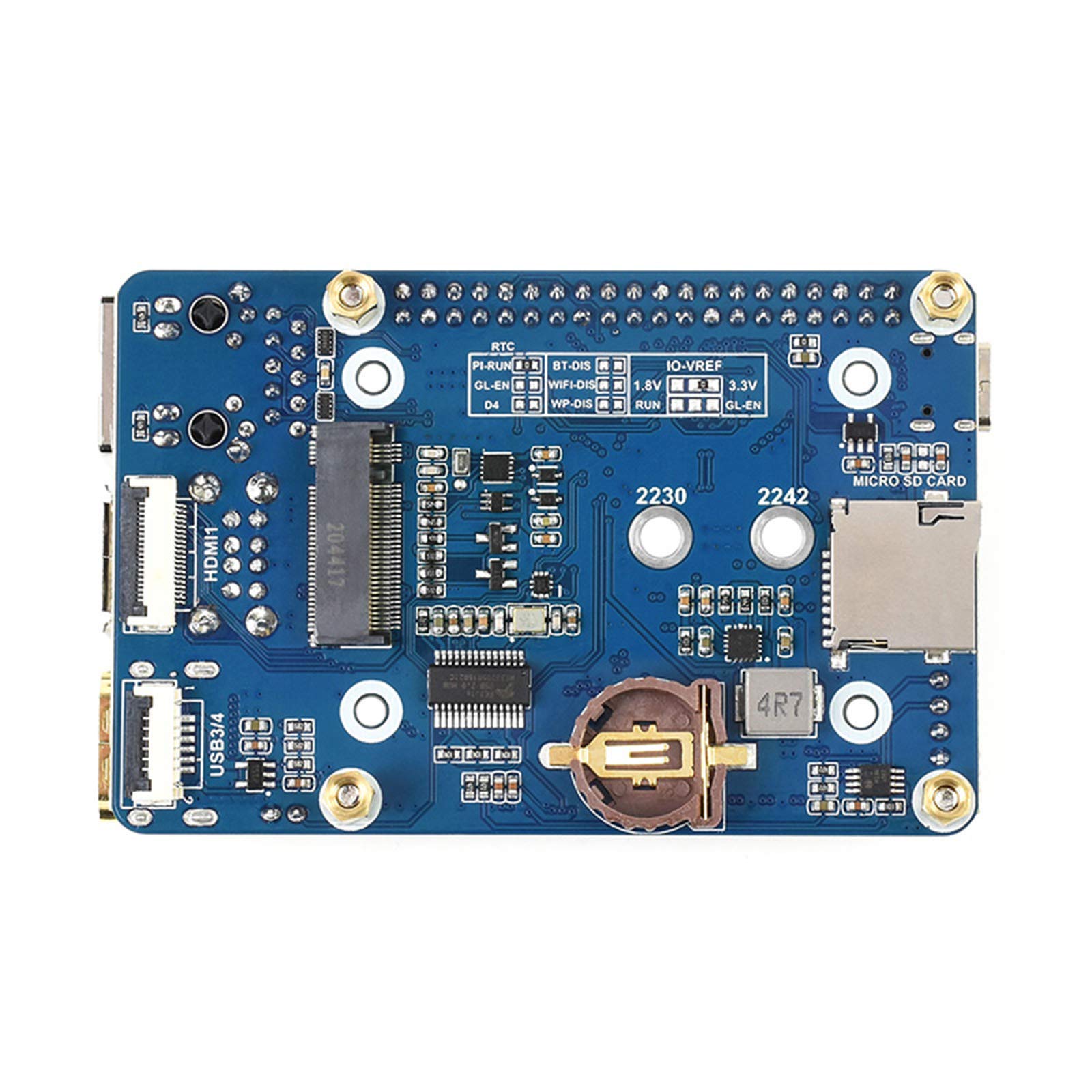

•Mini base board designed for Raspberry Pi Compute Module 4, suitable for evaluating the Raspberry Pi CM4 or being integrated into end products.
•Standard Raspberry Pi CM4 socket and color-codedRaspberry Pi 40 pin gpio header, suitable for Compute Module 4 Lite/EMMC series module.

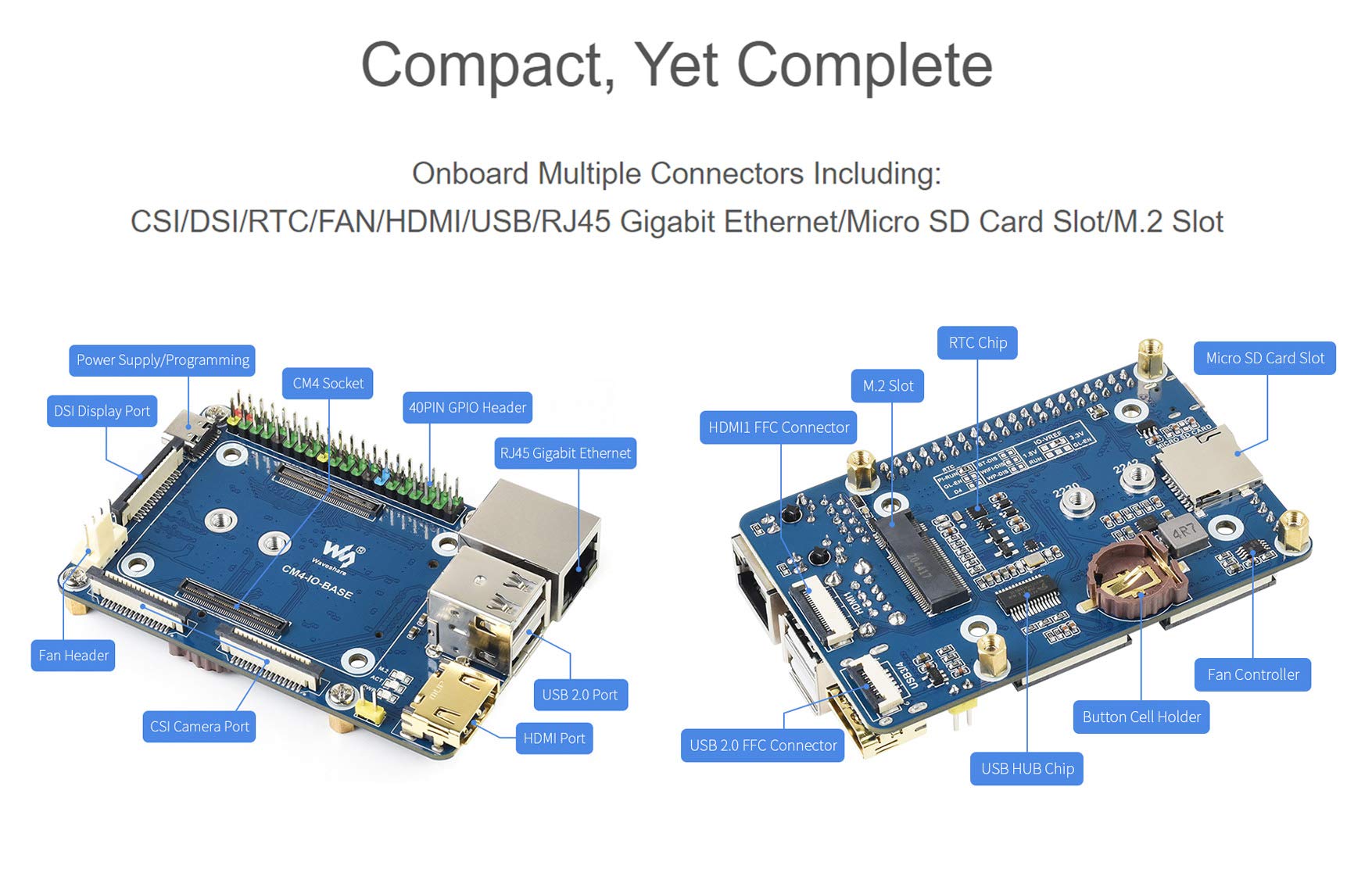

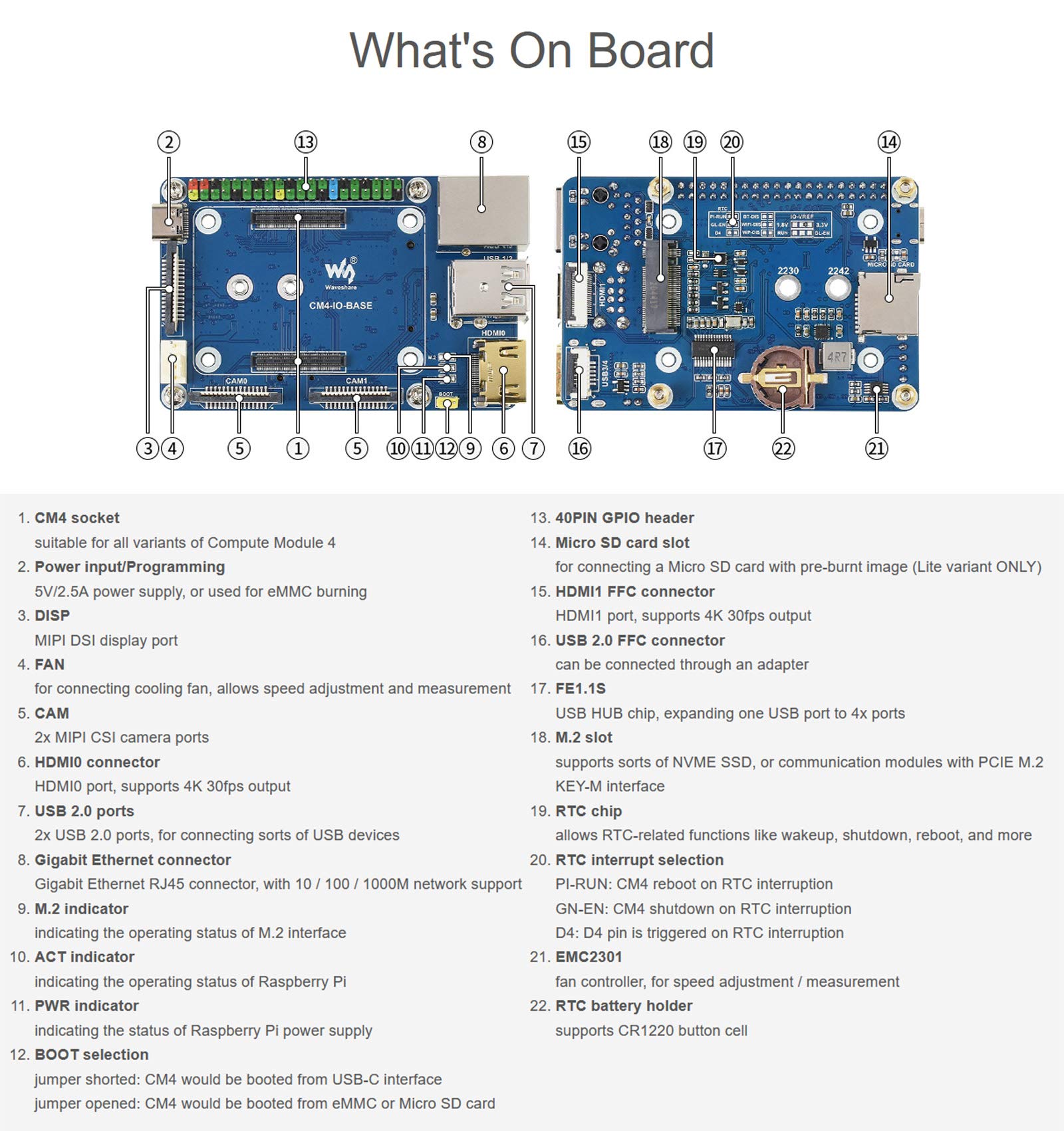

•Onboard multiple connectors including: CSI/DSI/RTC/FAN/HDMI/USB/RJ45 Gigabit Ethernet/Micro SD Card Slot/M.2 Slot. The DSI display interface is the DSI0 interface, and the DSI1 display interface is not connected.
•FAN fans only support 5V fans, 12V is not supported, confirm the fan voltage before connecting.Outline Dimensions: 85x56mm.
•Comes with mounting screw, easy to install. When using the M.2 interface, please use the matching screws.
