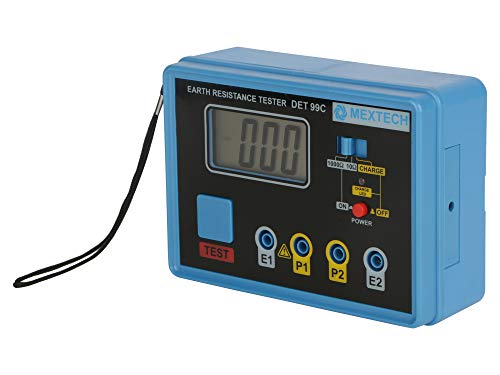

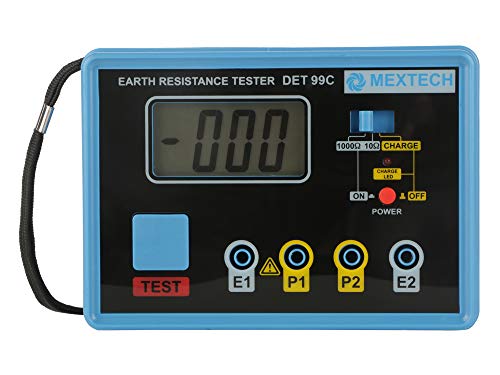

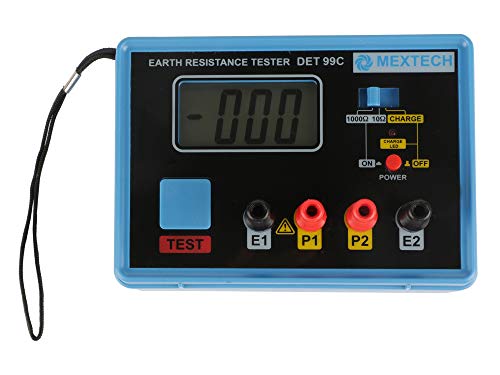

Mextech DET-99C Digital Earth Tester

•Rugged ABS body; Easy to use hand held meter; Ni-cd Re- chargeable cells; Confirms to ISS 9223/1979; Four terminals F1, P1, P2, F2 (to measure earth resistance as well as specific soil resistivity); Lo-Bat or ? indication appears on display indicating that the cells (batteries) have gone down, which can be recharged by connecting to 230V, 50 Hz AC mains supply through charging cord provided with the instrument
•Application: Mextech digital earth resistance tester is designed to measure the resistance if earth used in power circuit; Telecommunications; Railway electrification; Domestic and industrial electrical installations; The tester measures directly the resistance of the earth and also measure the ground resistivity; The study, elegant and compact body makes the instrument portable; Easy to use; Hand-held instrument

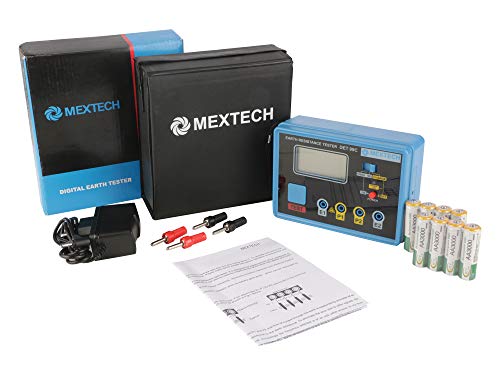

•Electrical Specifications: Insulation resistance test, more than 25 Mega ohms at 500 V DC between electrical circuit and containing case; Standard Accessories: Carrying case, charging cord, instruction manual, 8 pieces, 1.2V batteries and adopter for rechargeable cells; Optional Accessories (at extra cost): 4 numbers M.S. Spike (18 inch length), 1 number hammer, 4 numbers cable (25 feet), 1 number screwdriver, all packed in one earth testing kit bag specially designed for Waco earth testers
•Dual Ranges: 0 – 10 – 1000 OHM, 0 – 5 – 500 OHM
