Metal Access Control Kit–Choose 180kg Magnetic Lock or Electric Strike, Includes Power Supply, Exit Button, 10 Blue ID Keyfobs–125kHz, 1000 Users, Wiegand 26–for Office/Warehouse Security (XXS)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•【All-in-One Professional Kit】 – Includes 7612 zinc alloy keypad (1000 users, ID card/password/card+password), 180kg electromagnetic lock (fail-safe – power to lock, unlock when power cut), K80 12V 3A power supply, E6 momentary exit button, and 10 blue ID key fobs (125kHz). Everything needed for a complete, high-security access control system – no extra parts required.

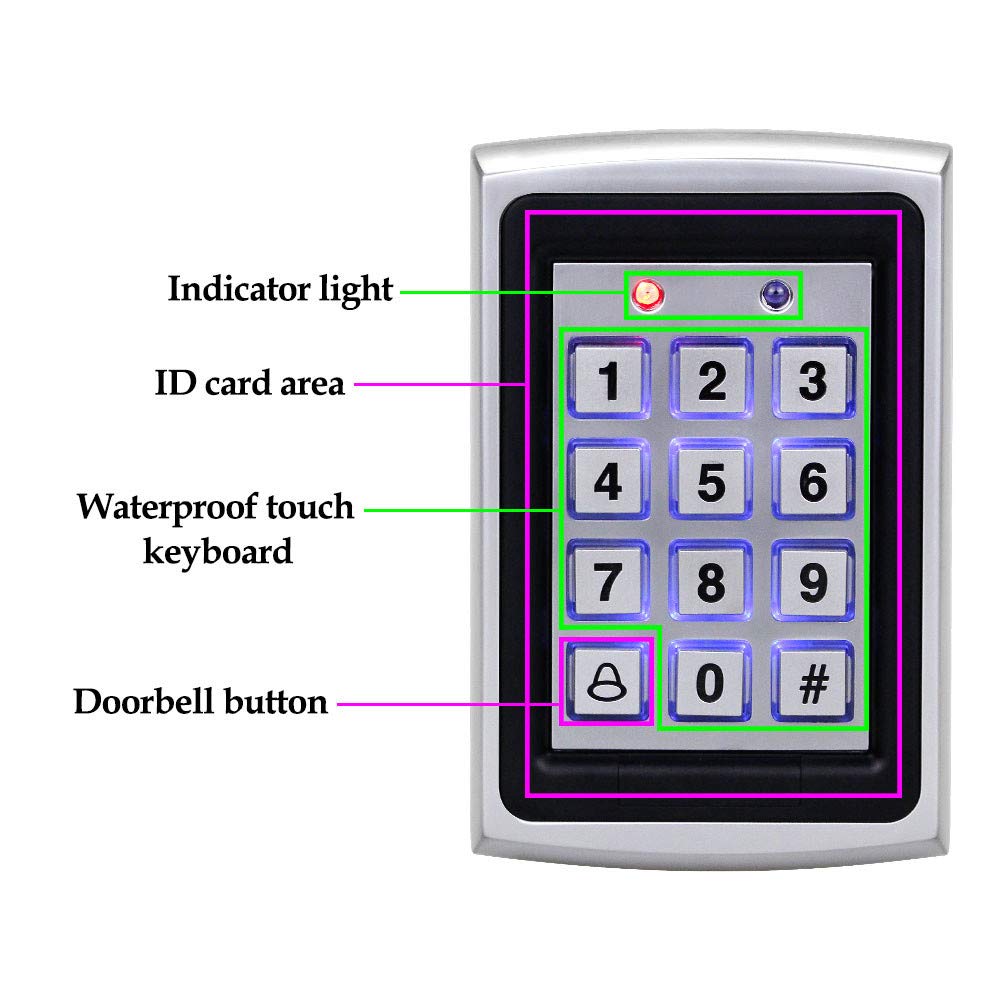

•【7612 Heavy-Duty Zinc Alloy Keypad – 1000 Users】 – Made of solid zinc alloy with a classic, durable finish. Supports 3 unlock modes: card only, password only, or card+password. Stores 1,000 standard users (ID cards/fobs). Features built-in doorbell button, anti-tamper alarm (alerts if forcibly removed), adjustable delay, WG26 interface, and 2 relay outputs. Blue backlit keypad for night use. Standalone operation – no computer needed. Operating temperature -10°C to +70°C.
•【180kg Heavy-Duty Magnetic Lock – Fail-Safe for Emergency Exit】 – Electromagnetic lock with 180kg (396 lbs) holding force. Power to lock, unlocks instantly when power is cut – ideal for emergency exit doors that must allow free egress during power failure. Built-in MOV reverse current protection for safety. Aluminum alloy housing + stainless steel armature plate. Low power consumption (380-500mA @12V DC), unlock time ≤1s. Works on wood, glass, metal, and security doors. Lock dimensions: 170×40×20mm; plate: 130×30×10mm.
•【Reliable K80 Power Supply & Durable E6 Exit Button】 – K80 switching power supply delivers 12V DC 3A (36W) with 0-15s adjustable delay, high efficiency, low heat. E6 exit button: made of fire-retardant ABS, rated for 500,000+ presses, with NO/NC/COM dry contacts (3A/36VDC). Provides a smooth, comfortable press to release the magnetic lock from inside.

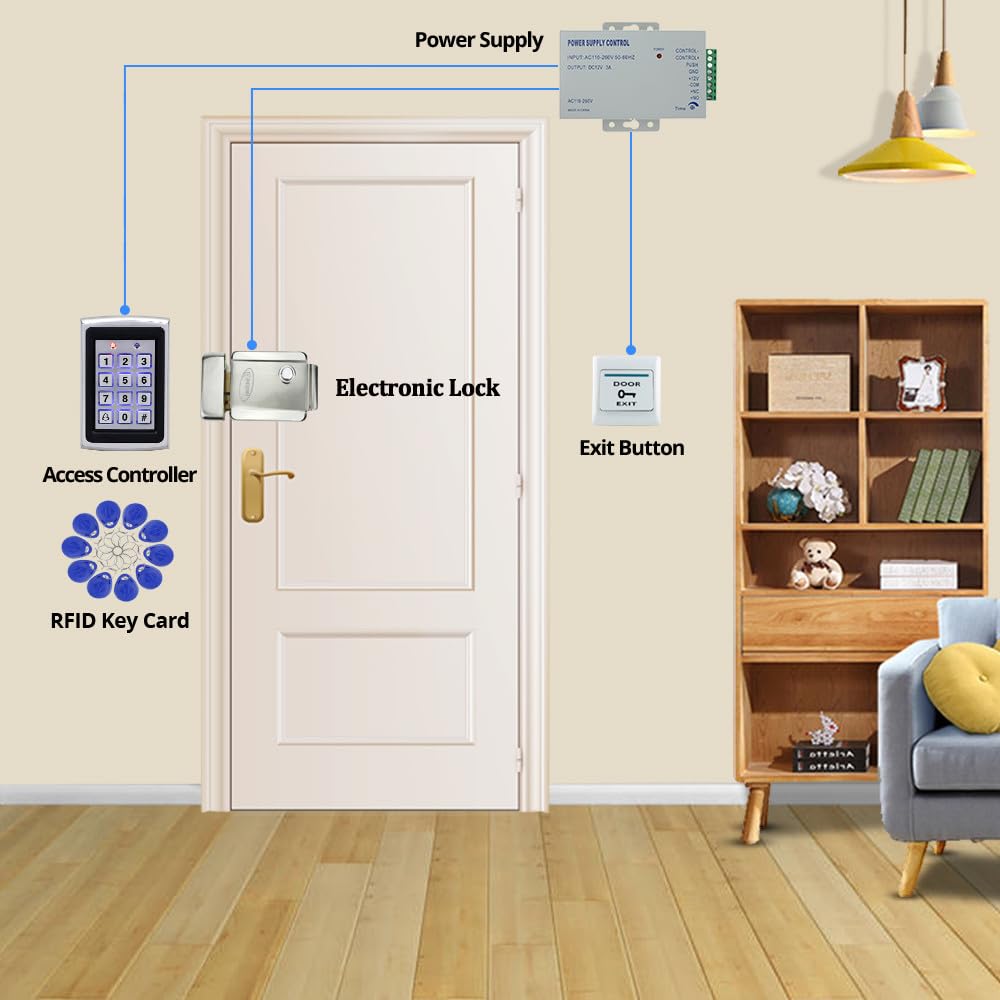

•【Easy Installation & Wide Applications】 – The 7612 keypad can be used with a weatherproof rain cover (sold separately) for outdoor installation. The kit includes 10 blue ID key fobs (125kHz EM compatible) – ready to use out of the box. Simple wiring: K80 powers all devices, 7612 keypad controls the lock and E6 button. Suitable for offices, homes, hotels, apartments, warehouses, retail stores, and any door requiring a robust, standalone access system with fail-safe locking.
