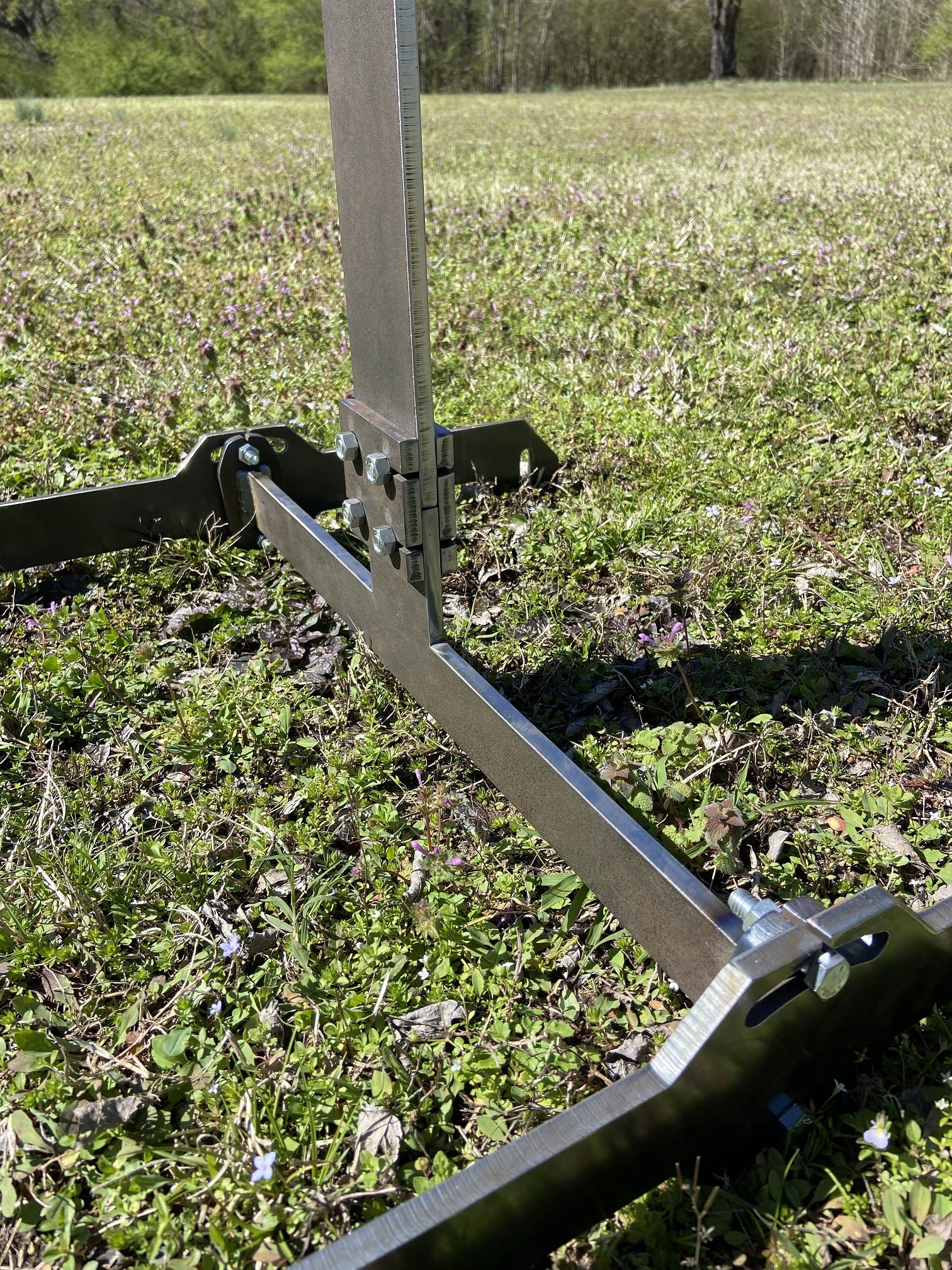

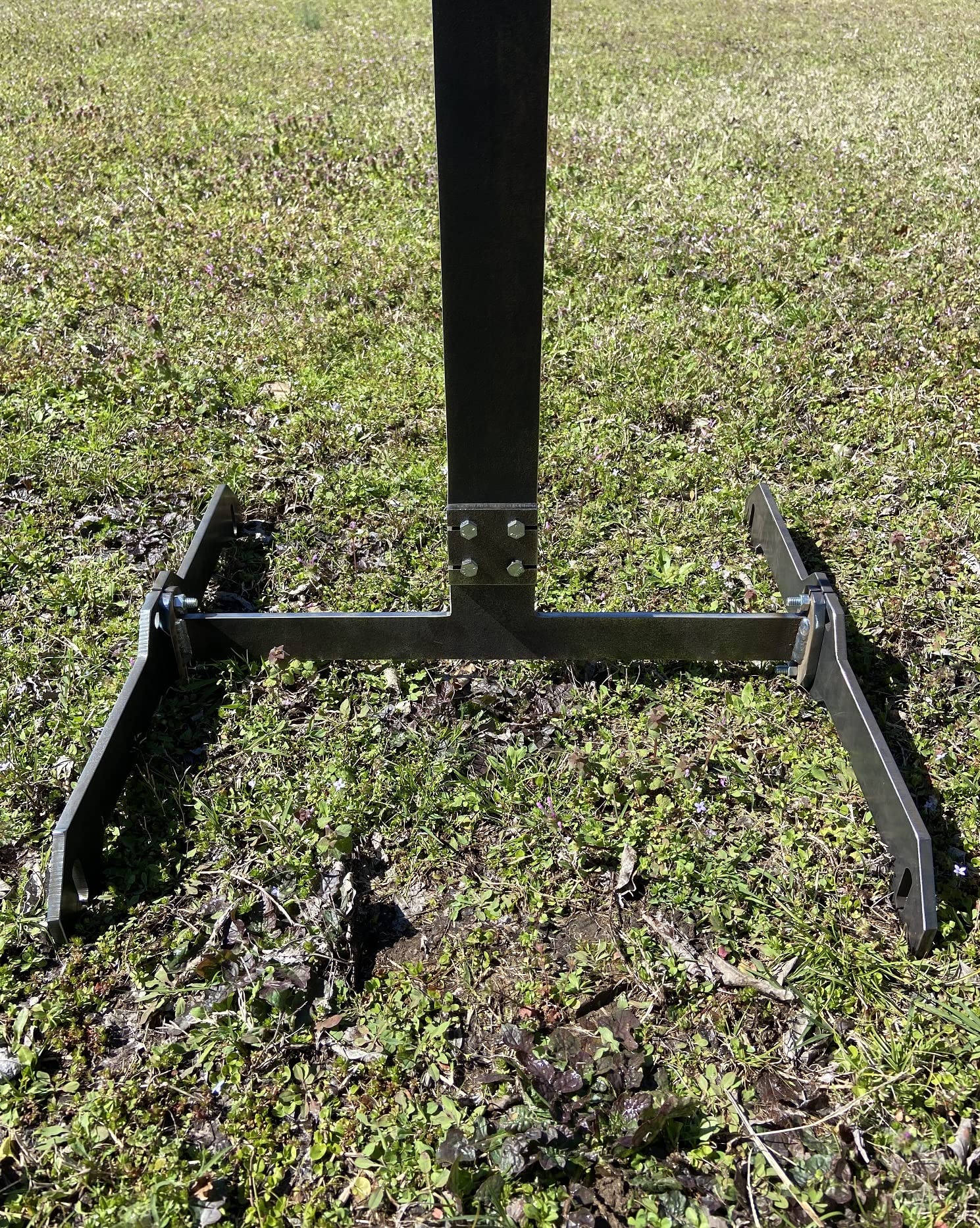

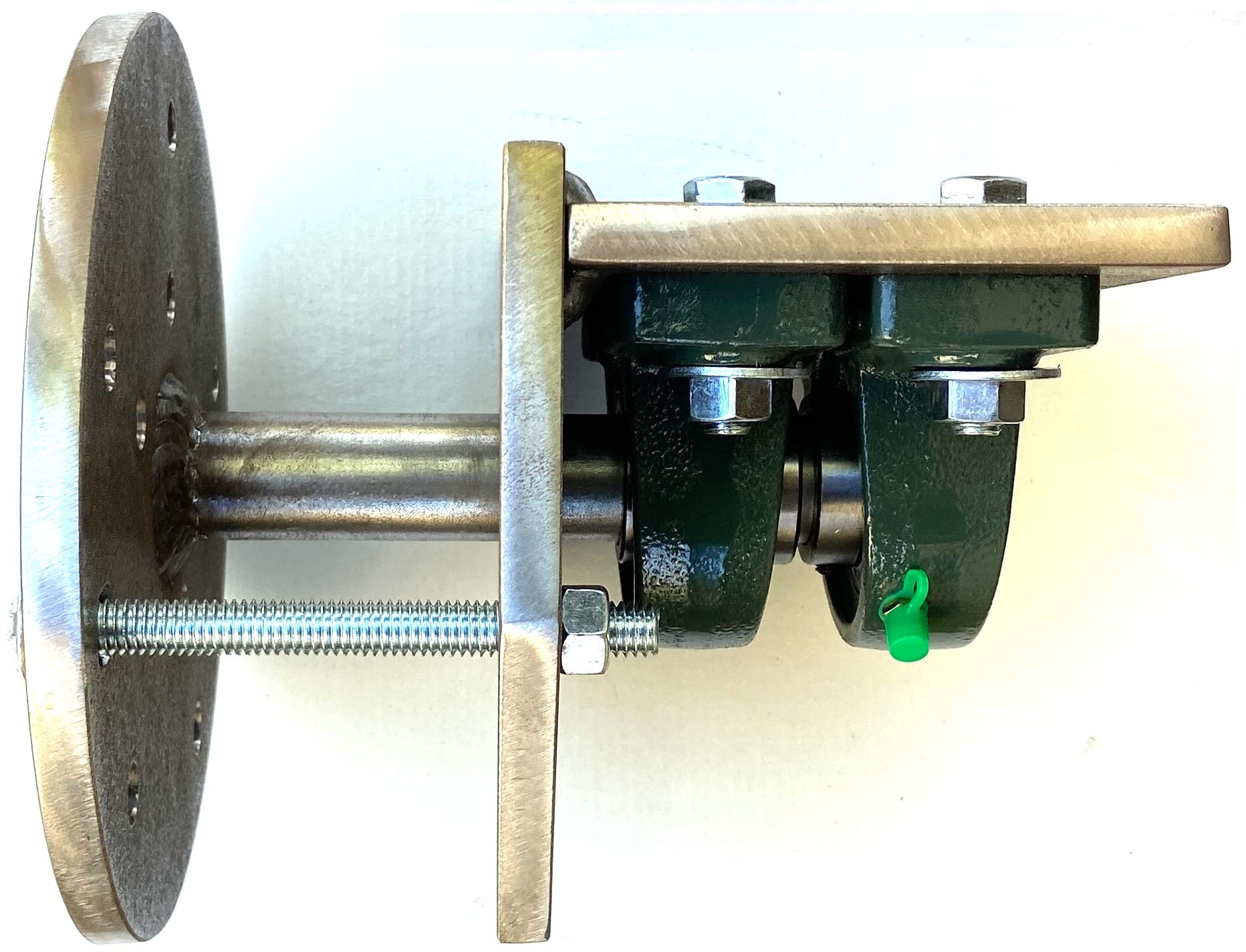

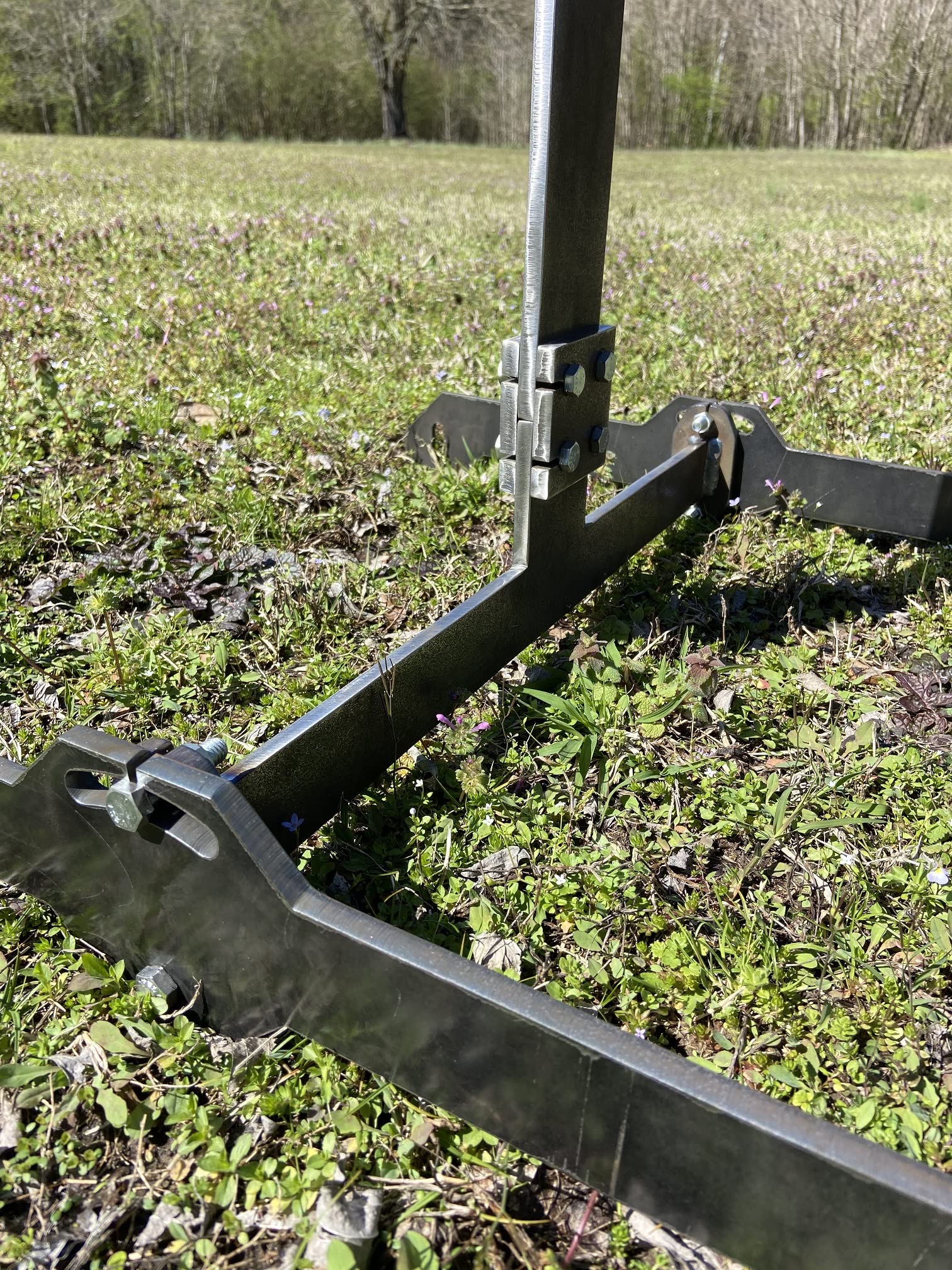

Parts 5 - 3/8" AR500 6” Paddles 5 - Pre-Assembled 3/8" AR500 Arms (Ready to go out of the box) 1 - Pre-Assembled and Pre-Welded 3/8" AR500 Hub Assembly w/ Star Rotation Stop Bolt for Beginners 4 - 3/8" AR500 3” Square Connector Brackets 1 - 3/8" AR500 3”x21” Vertical Hub Support 1 - 3/8" AR500 Base 2 - 3/8" 24” A36 Mild Steel 0-20 Degree Legs All needed bolts, nuts, and washers are included. Assembly Instructions The Base comes pre-welded with mounting brackets on either side for the 24” Legs. The Legs will be mounted using (4) included 3/8" bolts and nuts. We recommend a straight upward angle perpendicular to the ground. (2) 3” Square Connector Brackets will connect the 3”x21” Vertical Hub Support to the Base using (4) included 3/8" bolts and nuts. (2) 3” Square Connector Brackets will connect the Hub Assembly to the 3”x21” Vertical Hub Support using (4) included 3/8" bolts and nuts. The Arms will mount to the front of the Center Arm Mounting Plate using (10) included 3/8" bolts and nuts. In the center, an 1/8" should be evenly spaced between each triangular area of the Arms. This will keep the weight distributed evenly throughout the Star. The paddle guides and retainers on the Arms come pre-welded and assembled with fasteners. The last step is to insert the paddles.
