LGDehome IIC/I2C/TWI LCD 1602 16x2 Serial Interface Adapter Module Blue Backlight for Arduino UNO R3 MEGA2560(2pcs i2c+8pcs Jumper Wire)
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

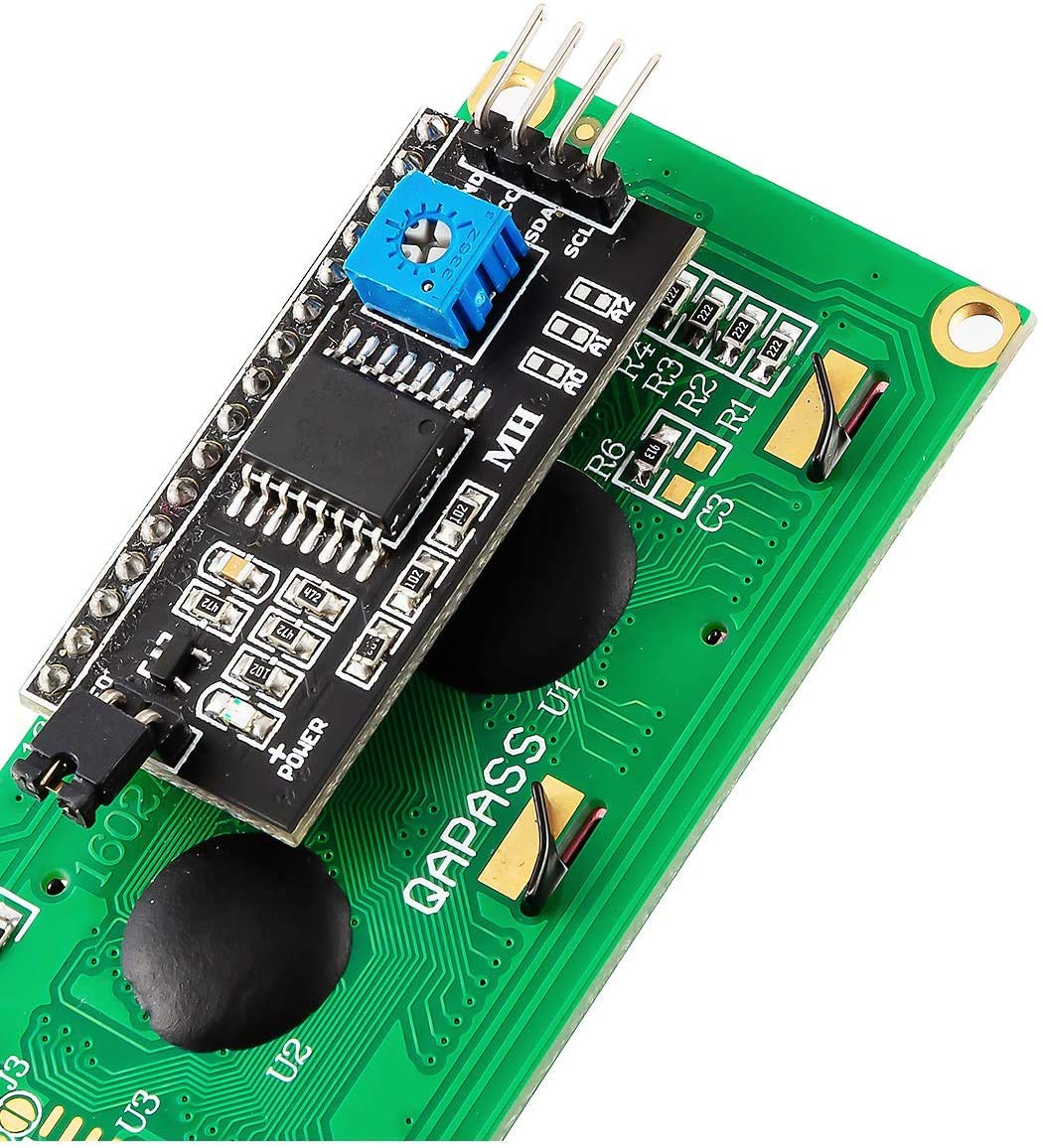

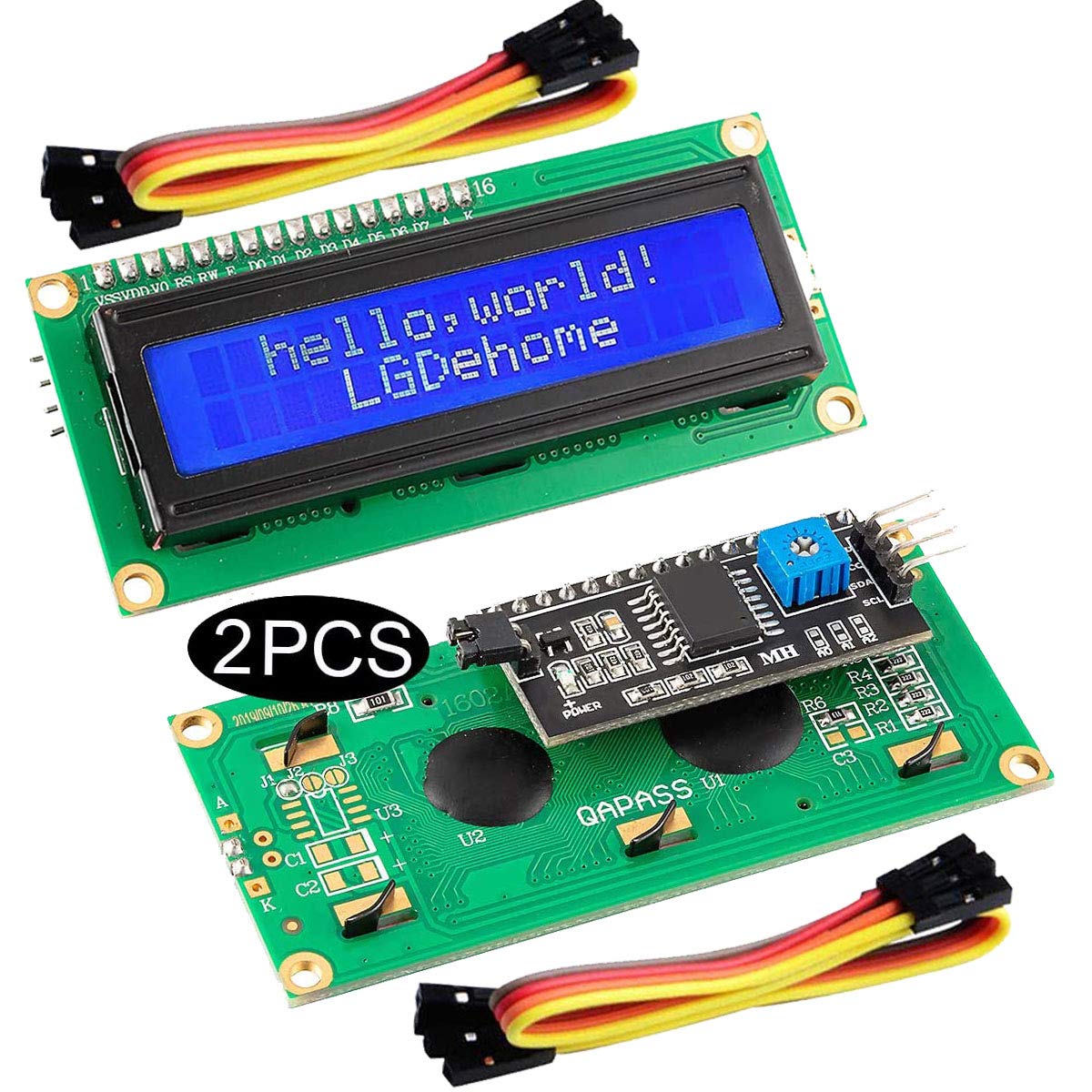

•Components: Blue 16x2 1602 lcd display with i2c serial interface backpack +8pcs jump wires;1602 lcd screen can perfectly display 2-lines x 16-characters.The i2c lcd adapter built-in industry standard HD44780 equivalent LCD controller
•Default Address: 0x27 for PCF8574T chip;0x3F for PCF8574AT chip; Please kindlly check the chip of the i2c interface. ( Remember to download the LiquidCrystal_I2C library on GitHub before uploading the code to the control board)
•How to wire: GND-GND; VCC-VCC; SDA-A4; SCL-A5
•Compatibility: Fit for Arduino and Raspberry pi.Working Voltage: 5V ;Come with a potentiometer used to adjust backlight and contrast
•Application:Used to display Characters, letters and Numbers ,real time clock, temperature, humidity,etc... ;
