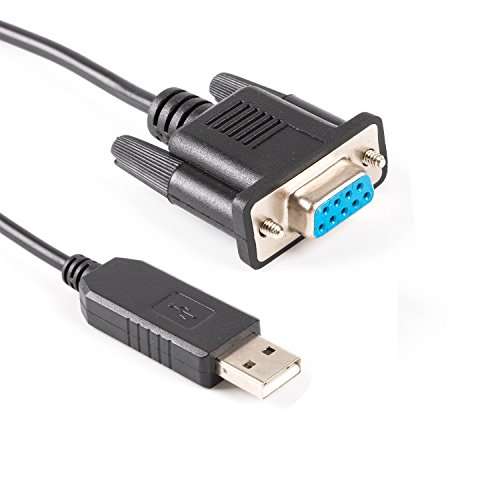

new | Letotech Cross Wired USB serial Cable FTDI ft232r USB RS232 to DB9 Female Adapter Null Modem Cable PC Control TV Cable (Standard Pinout)
Brand : Letotech
new | Letotech Cross Wired USB serial Cable FTDI ft232r USB RS232 to DB9 Female Adapter Null Modem Cable PC Control TV Cable (Standard Pinout)
Brand : Letotech
Availability :
Out Of Stock
Click to connect with our customer support
Product Specifications
| Condition | new |
|---|---|
| Asin | B07DRJMYV5 |
| Category | Electronics |
| Subcategory | Serial Cables |
| Leafcategory | PC Accessory |
| Color | Standard Pinout |
| Connector Type | Usb |
| Origin | USA |
| Brandname | Letotech |
| Height | 1 |
| Length | 1 |
| Width | 1 |
| Weight | 1 |
Product Details
This cable is mostly specially used in PC(host) - PC(host) communication, also called null modem cable
This cable also can be used for PC control the TV, smart TV(as nowadays the TV is a computer)
Length: 6ft Up to 921.6M RS232 transfering speed.
Product Ranking
#85 in Modem Cables
Product Description
Standard PINOUT: DB9#2-RX(yellw), 3-TX(orang), 5-GND(blk), 7-RTS(green), 8-CTS
100% genuine chip, with the unique ftdi chip ID

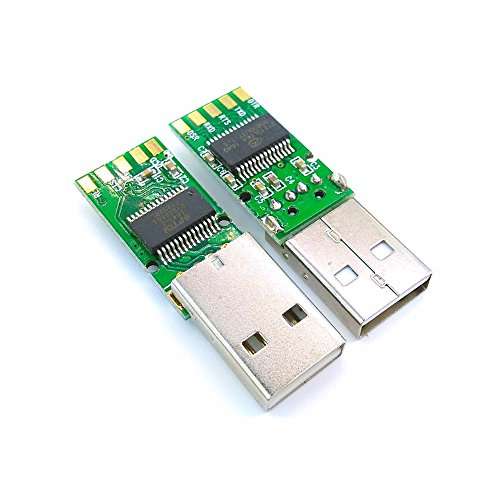

Inside ft232r rs232 board

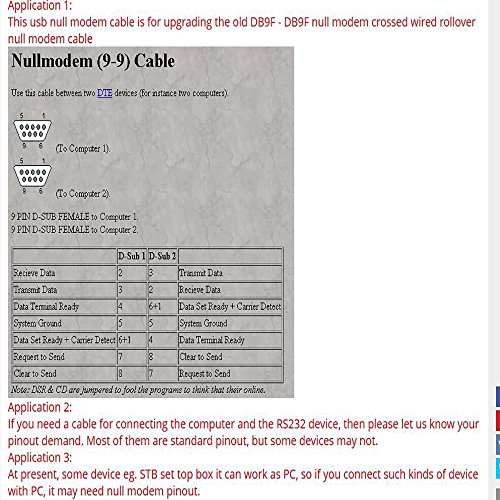

ftdi usb serial null molden DCE adapter cable for upgrading the old version desktop DB9 - DB9 cross wired null modem cable This cable is mostly specially used in PC(host) - PC(host) communication, also called null modem cable
This cable also can be used for PC control the TV, smart TV(as nowadays the TV is a computer) The other application of the usb rs232 db9 female cable is for PC(host) - device(slave), most of this application is 2-RX, 3-TX, 5-GND.....
The overview is the same, only the pinout is different, please be noted win8 10 android linux mac cross wired usb serial db9 ftdi ft232r usb rs232 null modem cable This cable can make your laptop pc(with USB,without DB9) to communicate with your desktop PC(with DB9 COM port) communicated each other.
USB to Null Modem (Cross-Wired) RS232 Serial Adapte
USB2.0 RS232 to DB9 female cable
FT232RL+ZT213 chip
USB2.0 standard, full speed
Baud Rate up to 921.6Kb
Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)): 2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave) 2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC
Customized pinout accept(based on 2/3/5/7/8), but need your message, otherwise, send the standard pinout.
5c*26AWG, copper, 1.8m, black
Support Android, Support Win 10, 8, Win 7, XP, 2000, Linix, Mac OS

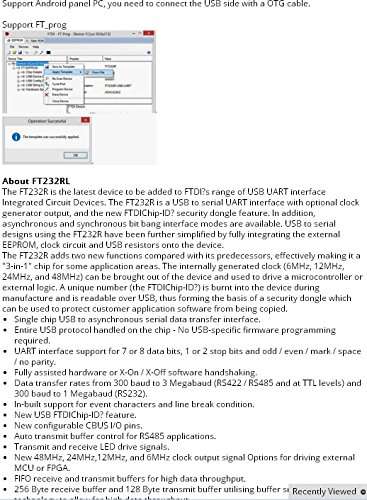

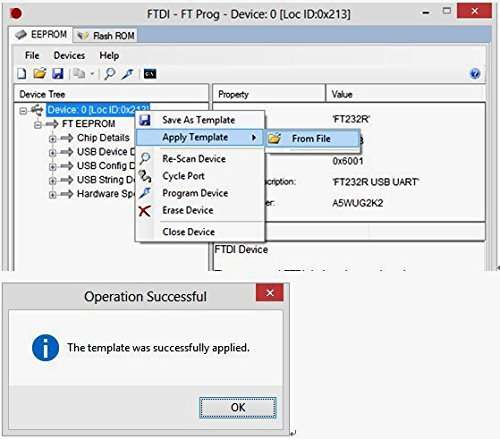

Support EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Neutral packing: zipper PE bag for each.
CE, RoHS compliance

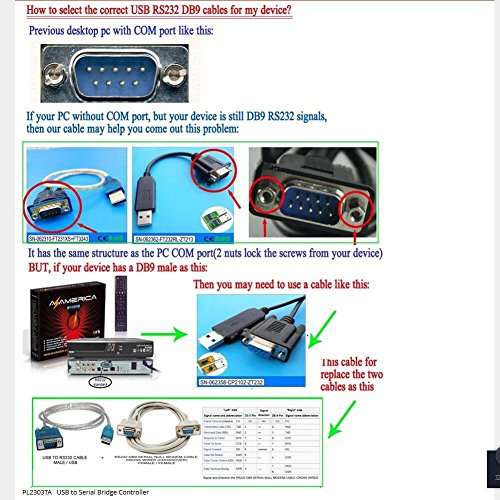

if you need connect the rs232 device with pc, esp notebook pc, laptop pc, port pc, mini pc, etc, then you need a USB RS232 to DB9 MALE cables
100% genuine chip, with the unique ftdi chip ID
Inside ft232r rs232 board
ftdi usb serial null molden DCE adapter cable for upgrading the old version desktop DB9 - DB9 cross wired null modem cable This cable is mostly specially used in PC(host) - PC(host) communication, also called null modem cable
This cable also can be used for PC control the TV, smart TV(as nowadays the TV is a computer) The other application of the usb rs232 db9 female cable is for PC(host) - device(slave), most of this application is 2-RX, 3-TX, 5-GND.....
The overview is the same, only the pinout is different, please be noted win8 10 android linux mac cross wired usb serial db9 ftdi ft232r usb rs232 null modem cable This cable can make your laptop pc(with USB,without DB9) to communicate with your desktop PC(with DB9 COM port) communicated each other.
USB to Null Modem (Cross-Wired) RS232 Serial Adapte
USB2.0 RS232 to DB9 female cable
FT232RL+ZT213 chip
USB2.0 standard, full speed
Baud Rate up to 921.6Kb
Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)): 2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave) 2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC
Customized pinout accept(based on 2/3/5/7/8), but need your message, otherwise, send the standard pinout.
5c*26AWG, copper, 1.8m, black
Support Android, Support Win 10, 8, Win 7, XP, 2000, Linix, Mac OS
Support EEPROM, support Vendor ID re-write,support Mprog3.5
Support FTDI VCP driver and D2XX driver
Neutral packing: zipper PE bag for each.
CE, RoHS compliance
if you need connect the rs232 device with pc, esp notebook pc, laptop pc, port pc, mini pc, etc, then you need a USB RS232 to DB9 MALE cables
