LAMSAM Prewired 6 String Electric Guitar Pickguard Loaded Modern Tone Single Coil Pickups, Pick Guards Wired Alnico 5 SSS Pickup Set Volume Tone Pots 5-way Switch, Backplate Included, All Black
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.

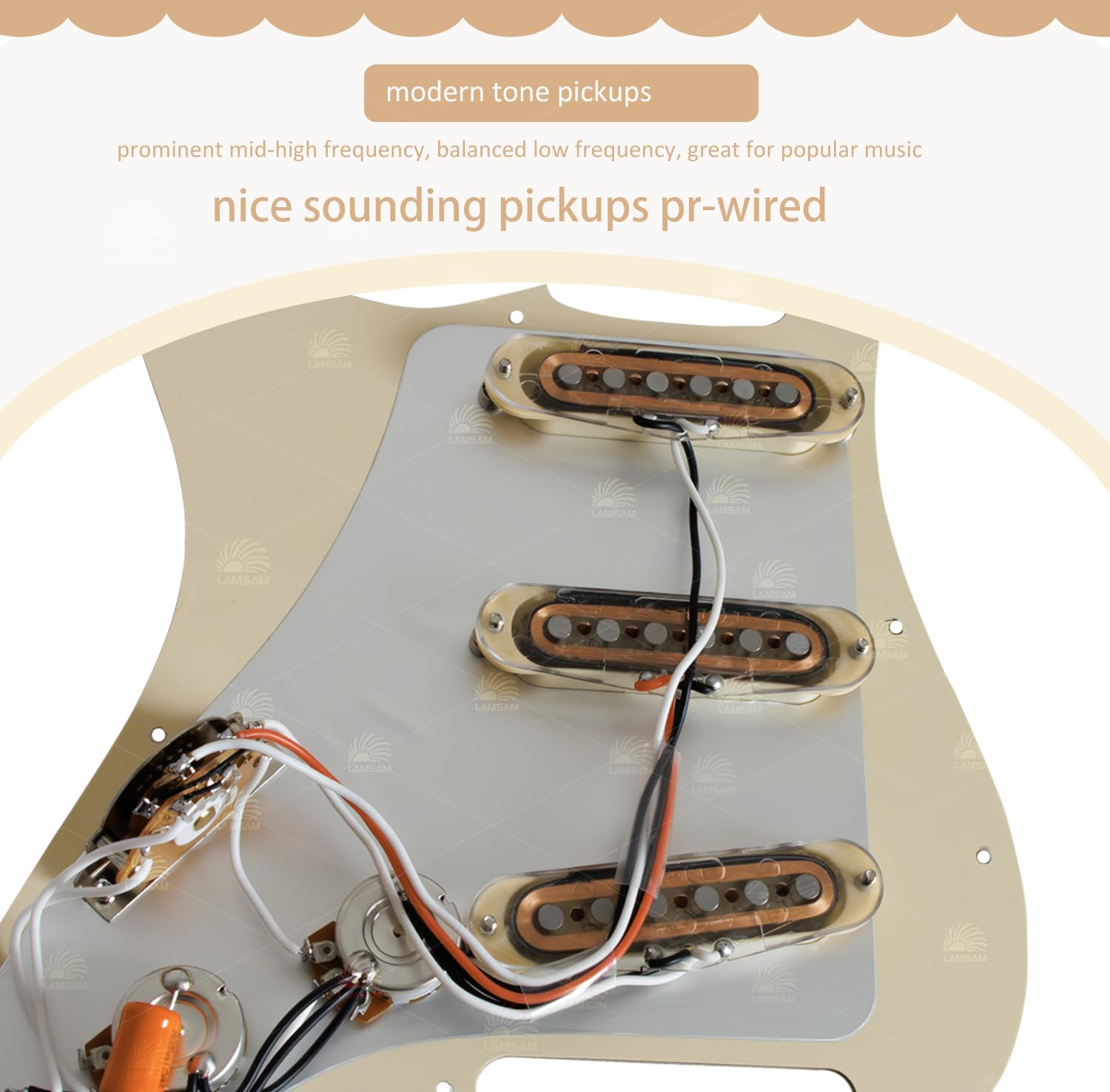

•ALNICO 5 SSS PICKUPS -modern tone, prominent mid-high frequency, balanced low frequency, suitable for popular music; output of neck pick-up: 8.2KΩ; mddle p'up: 8.4KΩ (reverse-wound to eliminate hum); bridge pickup: 9.4KΩ

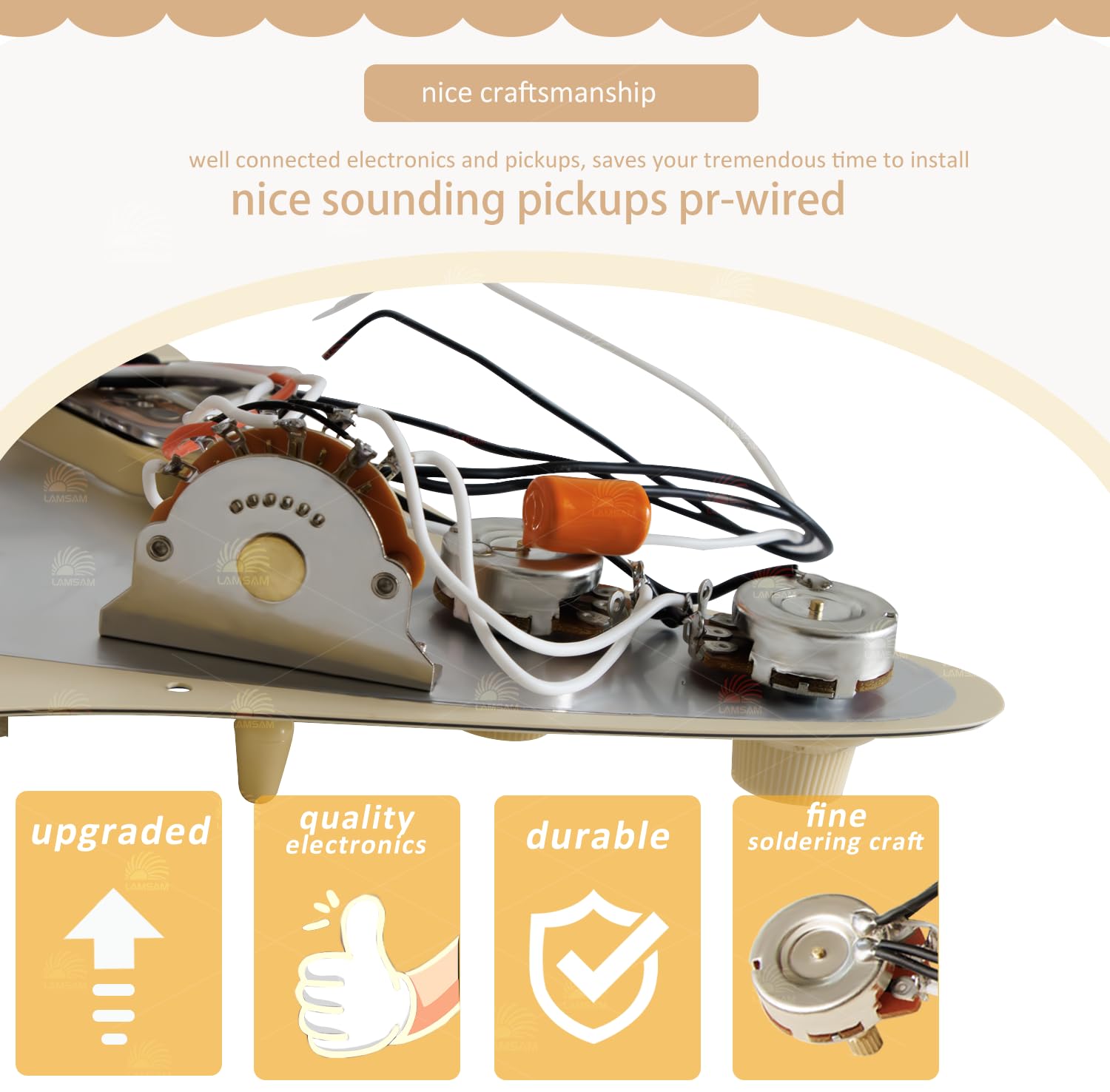

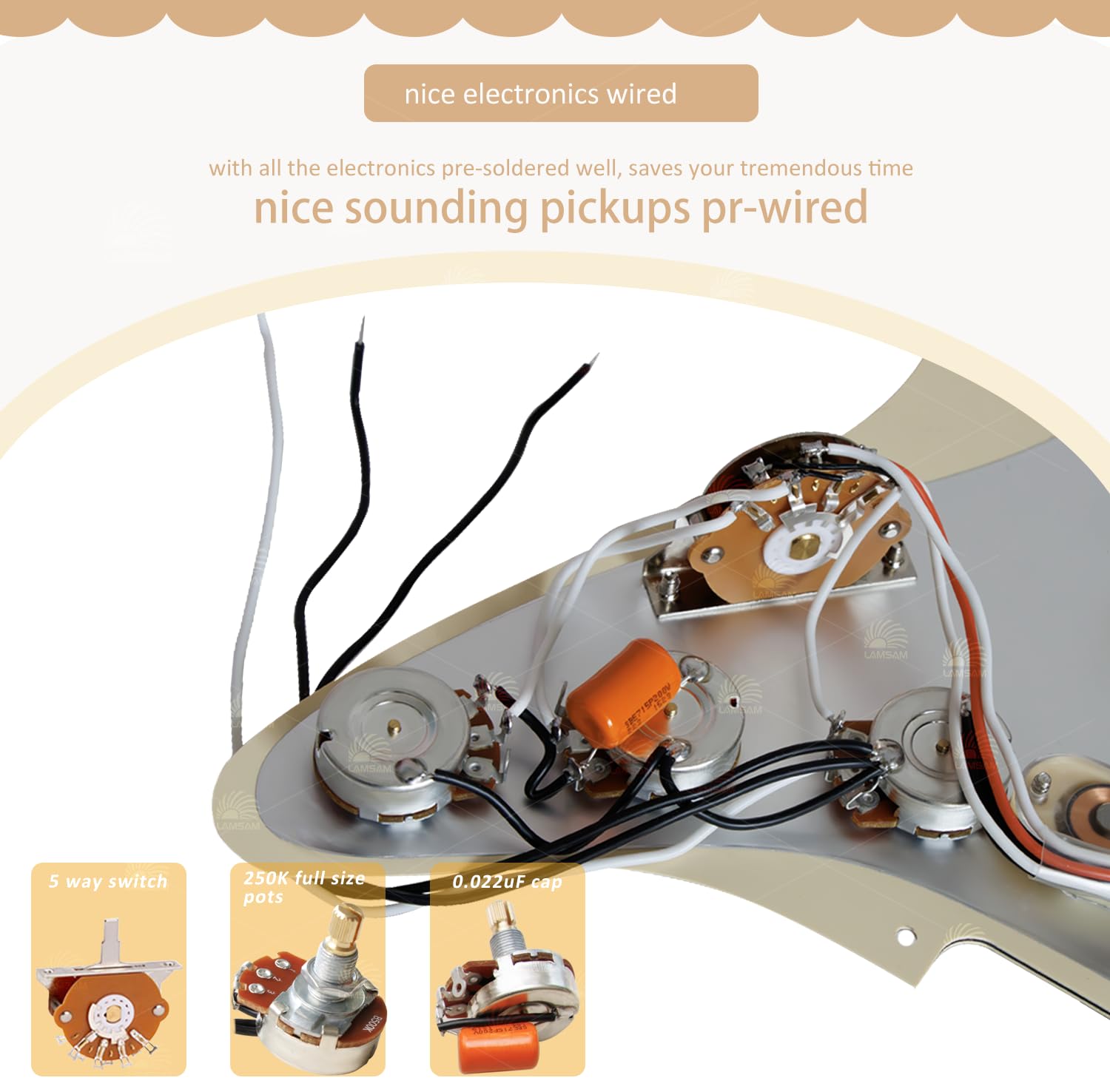

•ELECTRONICS - 5 way blade pickup switch; full size 500k potentiometer; 0.022uf, 600V orange capacitance

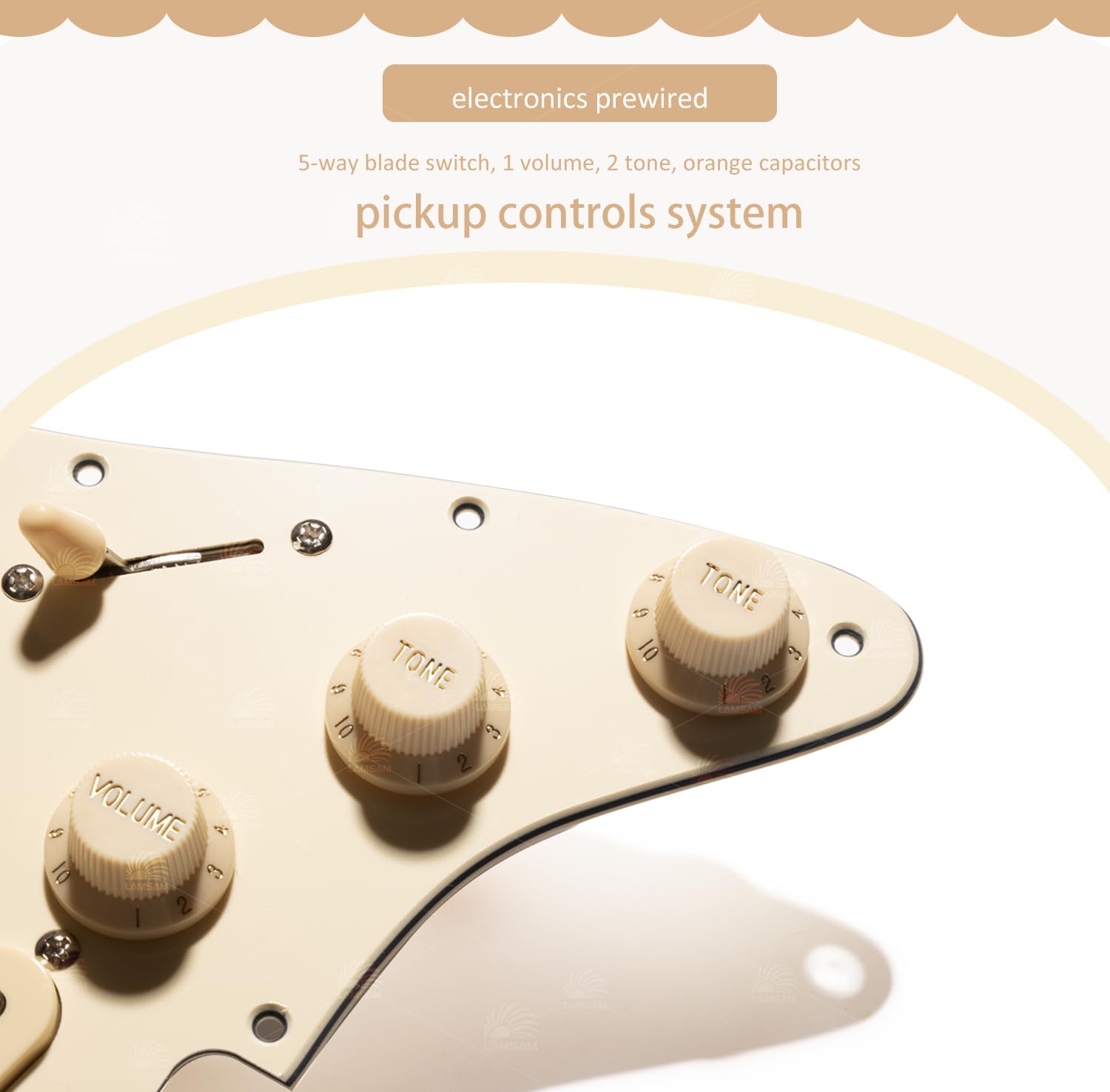

•DROP-IN PICK GUARDS - 3-ply pick guards with large back shielding, fully loaded pick ups & controls (pup switch, 1 volume, 2 tone); simply solder 2 black wires to ground and the white wire to hot of output jack

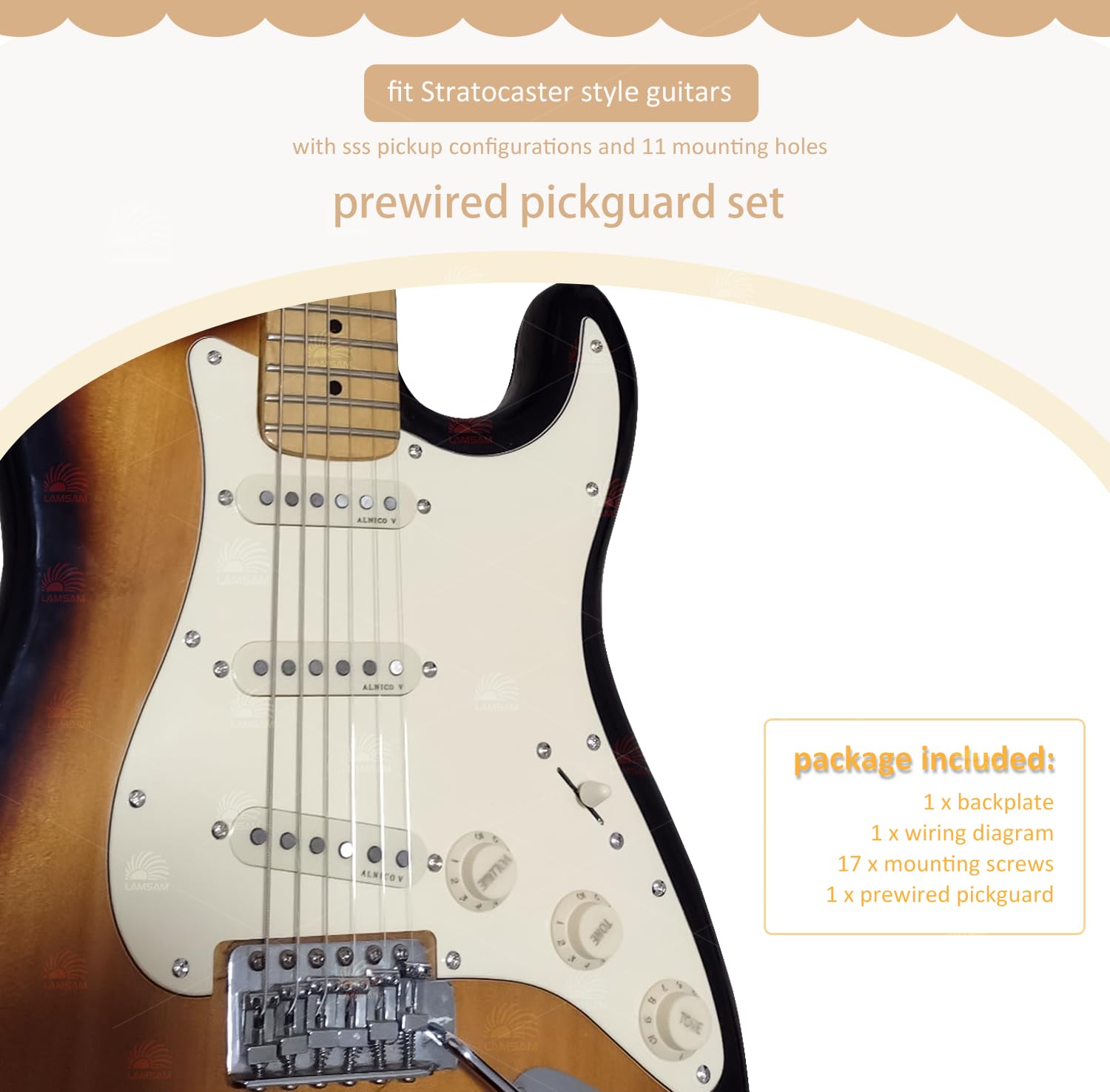

•APPLICATION - compatible with Fender Stratocaster series electric guitars with 11 mounting holes, standard triple single coil pick ups configuration; please check the specifications on photo gallary
•PACKAGES - included 1 x prewired 6 string electric guitar pick guards; 1 x backplate; 17 x mounting screws; 1 x wiring diagram
