KUSAM-MECO KM 375 2500V AC/DC DIGITAL INSULATION RESISTANCE TE | Shop The World
From India
NewKUSAM-MECO

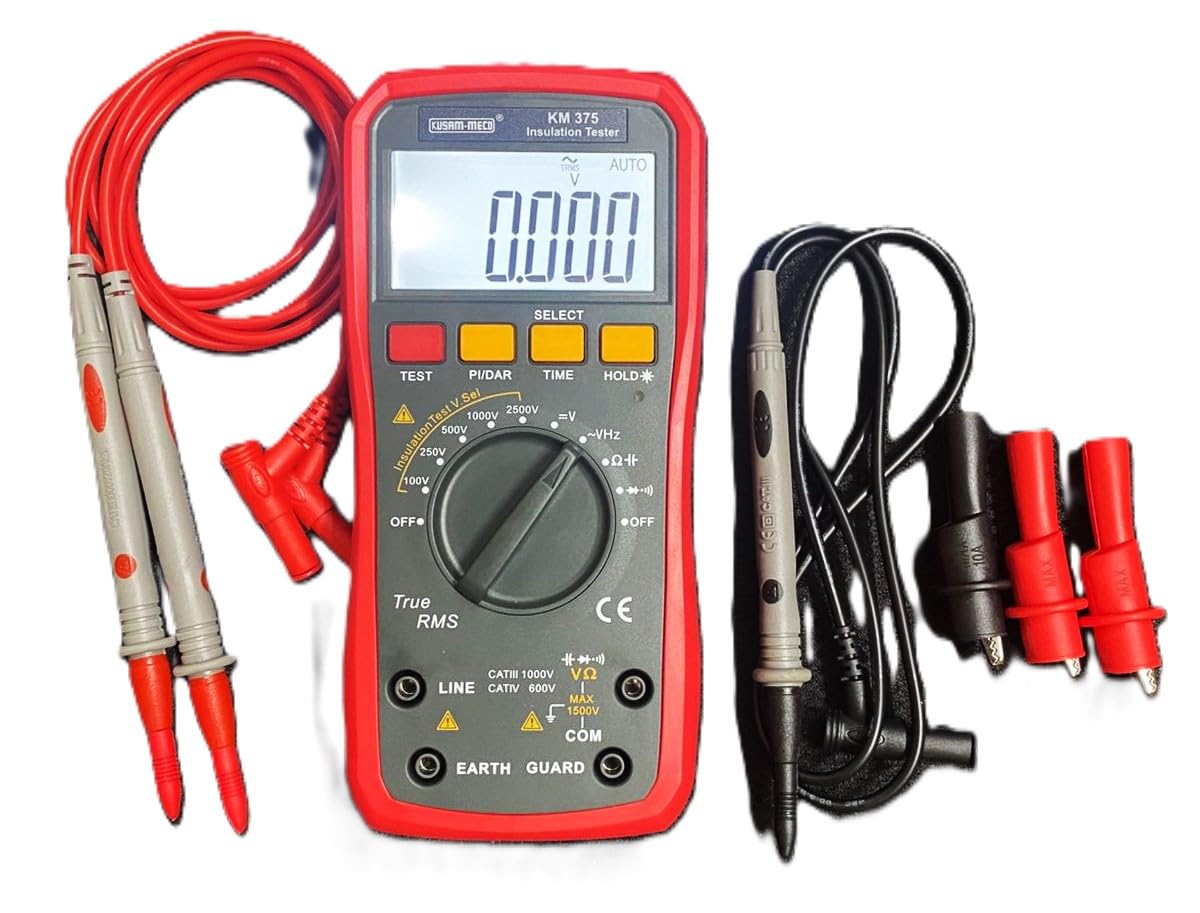

KUSAM-MECO KM 375 2500V AC/DC DIGITAL INSULATION RESISTANCE TESTER WITH PI & DAR MEASUREMENT MODEL - KM 375 By Skyking ®
•💡 Display mode : Liquid crystal display; maximum display : 3999 or 5999
•⚡ DC Voltage (DCV): RANGE: 6~600V Accuracy: ± (0.5%+5) Resolution: 0.001V~0.1V RANGE 2500V Accuracy: ± (1%+5) Resolution: 1V ⚡ AC Voltage (ACV): RANGE: 6~600V Accuracy: ± (1.2%+5) Resolution: 0.001V~0.1V RANGE 2500V Accuracy: ± (2%+5) Resolution: 1V
•⭐ Auto range : “OL” will be displayed for overload in multi-meter. ⚡ RESISTANCE: 600Ω~600kΩ, 6MΩ, 60MΩ ⚡ CAPACITANCE: 10nF, 100nF~1mF, 10mF~100mF
•⚡ CONTINUITY TEST ⚡ DIODE
•⭐ Sampling rate : 2 times per second
•⭐ The meter can display actual insulation test voltage. LED light is used to indicate high voltage output status.
•⭐ Operating Temperature : 0°C ~ 40°C, less than 75%RH ⭐ Storage Temperature : -10°C ~ 60°C, less then 80%RH
•⭐ Indication for insufficient battery capacity : “ ” is displayed ⭐ Power supply : 2 x 14500 - 3.7V Li-ion battery ⭐ Auto power off : 15 minutes after it is turned on if no key is pressed or the knob is not turned. Long press HOLD to wake up in sleep mode.
•⭐ SAFETY : IEC 61010 CAT III 1000V

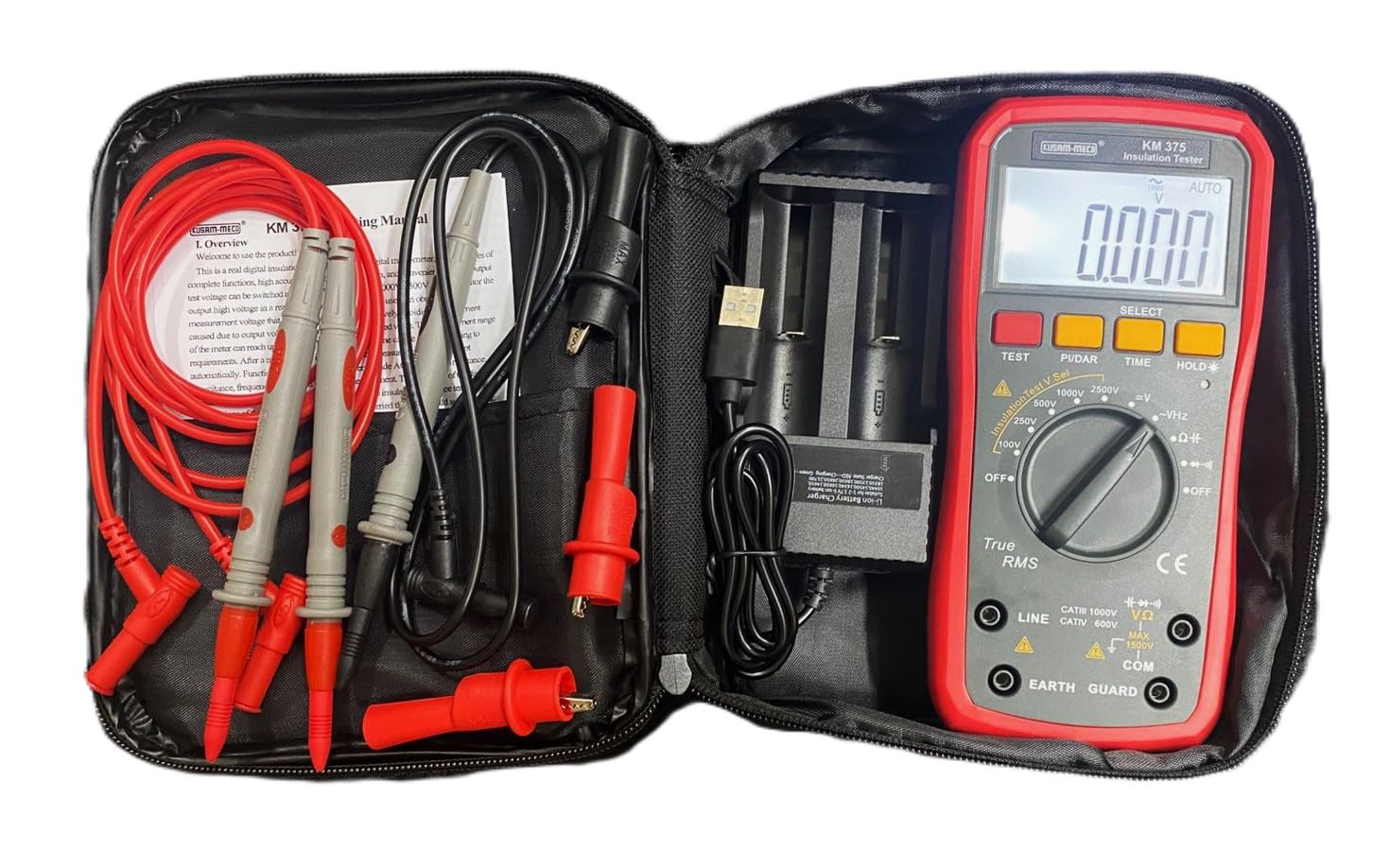

•⭐ ACCESSORIES : Test Lead pair, User Manual, Battery, Battery Charger & Carrying Case. ⭐ Dimension : Approx. 189 (L) × 89 (W) × 55 (H) mm ⭐ Weight : Approx. 380g (including the battery)
