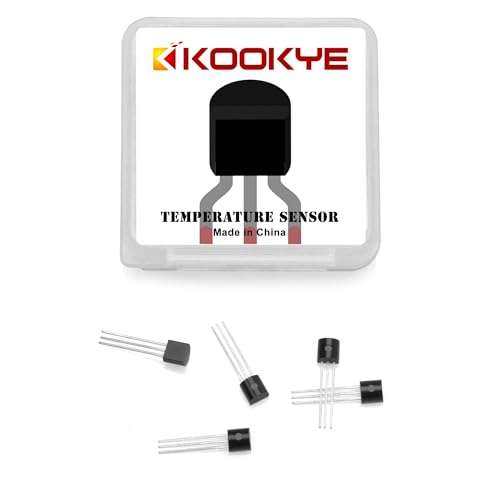

KOOKYE 5X TMP36 Temperature Sensors Low Voltage Low self-Heating Precision Linear Analog Output for Arduino Raspberry Pi
ℹ
Products from the USA may come with an input voltage of 110V–120V, requiring a step-down transformer. Check the device wattage to select the correct power converter.
•Low voltage operation (2.7 V to 5.5 V),Low self-heating，Calibrated directly in °C，10 mV/°C scale factor (20 mV/°C on TMP37),±2°C accuracy over temperature (typ);±0.5°C linearity (typ).
•Low voltage, Precision Centi-grade Temperature Sensors : Low voltage operation,Calibrated directly in °C,10 mV/°C scale factor.

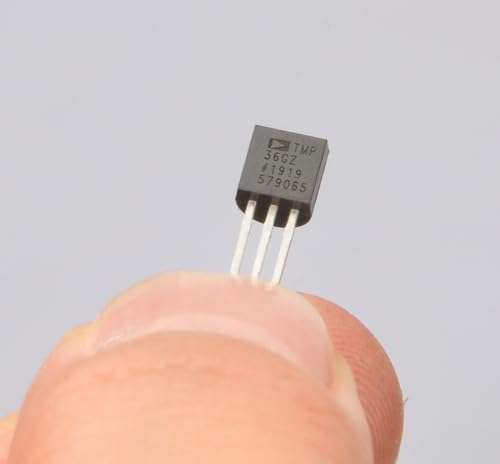

•ADI TMP36GZ Temperature Sensor: Outputs an analog voltage that is proportional to the ambient temperature.

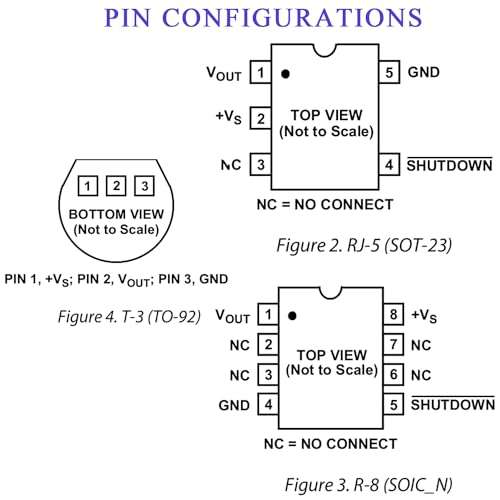

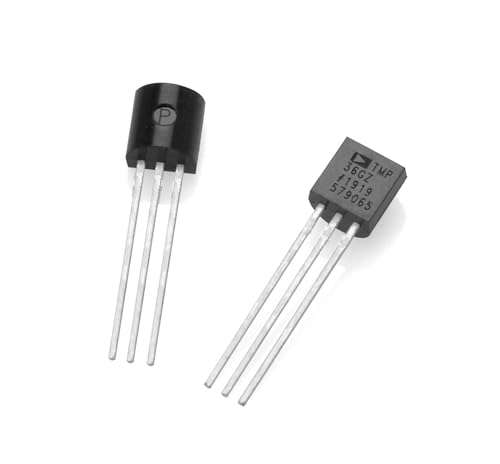

•The TMP36 Temperature Sensor are available in low cost 3-lead TO-92, 8-lead SOIC_N, and 5-lead SOT-23 surface-mount packages.
•The TMP36 is specified over the -40°C to +125°C operating temperature range and provides a 750 mV output at 25°C and a single 2.7 V supply at 125°C. The TMP36 is functionally compatible with the LM50. The TMP36 has an output scaling factor of 10 mV/°C. The TMP36 is also compatible with the LM50.
